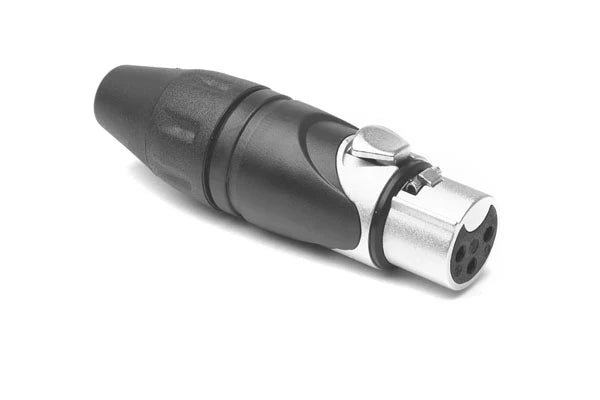

Amphenol Female XLR 3 Inline, Chuck style cable clamp, Nickel (NEW second generation)

Amphenol Female XLR 3 Inline, Chuck style cable clamp, Nickel (NEW second generation)
More Info

The Amphenol AXX3F is a 3-pole female XLR cable connector from Amphenol's second-generation AX series, with a nickel-finished zinc diecast shell, a rubberised boot and a chuck-style cable clamp. It is the socket end for microphone leads, balanced line cables and 3-pin DMX lighting cables, and suits hire companies, venues and installers who build their own leads. A push-latch releases the connector from a male chassis or cable plug. The stamped, silver-plated contacts are soldered and accept wire up to 14 AWG. Amphenol rates it at 15 A per contact, 133 V RMS service voltage (1,400 V AC test), IP40, UL94 V-0, -25 to +75 °C and 1,000 mating cycles, and lists it as comparable to the Neutrik NC3FXX. Supplied as a single connector; cable not included.

R99.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Current rating: 15 A
  • Service voltage: 133 V RMS
  • Test voltage: 1400 V AC RMS

Mechanical

  • Gender: Female cable connector
  • Contacts: Stamped, silver plated, solder
  • Max wire gauge: 14 AWG
  • Housing: Zinc diecast, nickel finish
  • Cable clamp: Chuck type
  • Mating cycles: 1000

Environmental

  • IP rating: IP40
  • Flammability: UL94 V-0
  • Operating temperature: -25 to +75 °C
  • Comparable to: Neutrik NC3FXX
