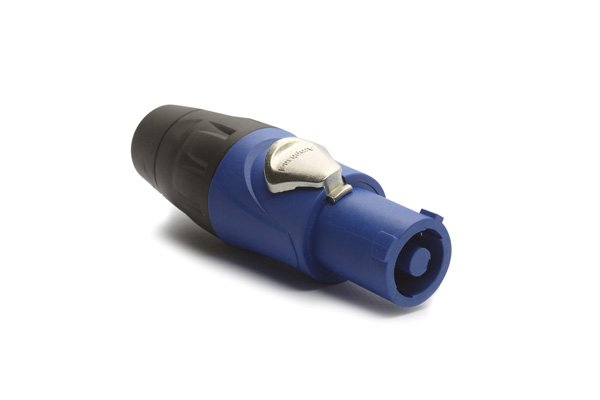

Amphenol HP Blue 3 pole inline

The Amphenol HP-3-F is a blue 3-pole locking power cable connector (power in) from Amphenol's HP series, listed by Amphenol as comparable to the Neutrik powerCON NAC3FCA. It is the connector used to build the mains feed cable into lighting fixtures, amplifiers, LED screens and powered loudspeakers that have a blue power-in chassis socket; the grey HP-3-FG is the matching power-out version for linking onward. It is rated 25 A at 250 V AC, with brass/silver screw contacts, a PA66 GF30 glass-filled thermoplastic housing, IP54 protection, UL94 V-0 flammability, UL recognition E339831, a typical cable retention force of 200 N and a cable outer diameter range of 5 to 15 mm. Operating temperature is -25 to +75 °C. It is not a true-mains (TRUE1) connector, so it should not be connected or disconnected under load. It is a common spare for hire companies and technicians building or repairing power leads. Supplied as a single connector; cable not included.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Electrical
- Poles: 3
- Current rating: 25 A
- Voltage: 250 V AC
- Insulation resistance: >2 GΩ
Mechanical
- Function: Power in (blue)
- Termination: Screw contacts
- Cable OD: 5 - 15 mm
- Cable retention: 200 N typical
Materials & environment
- Housing: PA66 GF30 thermoplastic, blue
- Contacts: Brass / silver
- IP rating: IP54
- Flammability: UL94 V-0
- UL file: E339831
- Comparable to: Neutrik NAC3FCA
