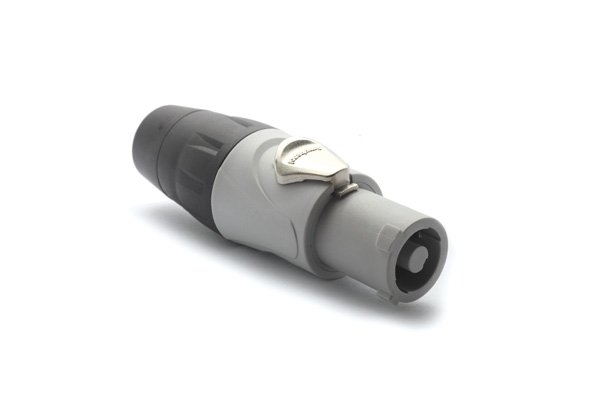

Amphenol HP Grey 3 pole inline

Amphenol HP Grey 3 pole inline
More Info

The Amphenol HP-3-FG is a grey 3-pole locking power cable connector (power out) from Amphenol's HP series, compatible in format with the common blue/grey locking power connector system and listed by Amphenol as comparable to the Neutrik powerCON NAC3FCB. The grey connector is the power-out end, used to link power from one fixture or amplifier to the next (daisy-chaining) and to build power link cables for lighting, LED screens and powered speakers; the blue HP-3-F is the power-in version. It is rated 25 A at 250 V AC, with brass/silver screw contacts, a glass-filled PA66 GF30 housing, UL94 V-0 flammability, IP54 protection, UL recognition E339831, a 200 N typical cable retention force and a cable outer diameter range of 5 to 15 mm. Operating temperature is -25 to +75 °C. It is not a true-mains (TRUE1) connector, so it should not be connected or disconnected under load. Supplied as a single connector; cable not included.

R153.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Current rating: 25 A
  • Voltage: 250 V AC
  • Insulation resistance: >2 GΩ

Mechanical

  • Function: Power out (grey)
  • Termination: Screw contacts
  • Cable OD: 5 - 15 mm
  • Cable retention: 200 N typical

Materials & environment

  • Housing: PA66 GF30 thermoplastic, grey
  • Contacts: Brass / silver
  • IP rating: IP54
  • Flammability: UL94 V-0
  • UL file: E339831
  • Comparable to: Neutrik NAC3FCB
