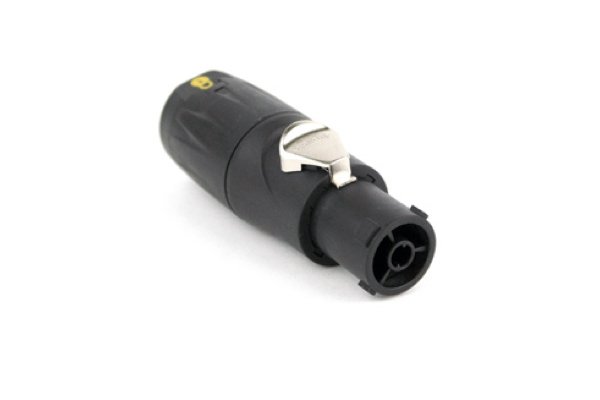

Amphenol HPT-3-F outlet inline

Amphenol HPT-3-F outlet inline
More Info

The Amphenol HPT-3-F is a female (outlet / power-out) cable connector from Amphenol's HPT series of locking true-mains power connectors, which Amphenol lists as comparable to the Neutrik powerCON TRUE1 TOP NAC3FX-W-TOP. It is used to build IP-rated power link cables and extension leads for stage lighting fixtures, LED screens, powered loudspeakers and outdoor event equipment. It is a 3-pole (line, neutral, earth) connector rated 16 A in Europe and 20 A in the US at 250 V AC, with screw terminals tightened with a 2 mm hex key, silver-plated contacts and a locking backshell that clamps cable from 6 to 12 mm outer diameter. The PA66 GF30 glass-filled polyamide housing is black, UL94 V-0 rated, and reaches IP65 and UL50E Type 4 when used with the matching spring or chain caps. Operating temperature is -25 to +80 °C. It mates with the male HPT-3-M. Supplied as a single connector; cable not included.

R224.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3 (2 + PE)
  • Current rating: 16 A EU / 20 A US
  • Voltage: 250 V AC
  • Insulation resistance: >2 GΩ

Mechanical

  • Gender: Female / outlet (power out)
  • Termination: Screw terminal, 2 mm hex key
  • Cable OD: 6 - 12 mm
  • Backshell: Locking

Materials & environment

  • Housing: PA66 GF30, black
  • Contact plating: Silver
  • Protection: IP65 / UL50E Type 4 with caps fitted
  • Flammability: UL94 V-0
  • Operating temperature: -25 to +80 °C
  • Comparable to: Neutrik NAC3FX-W-TOP
