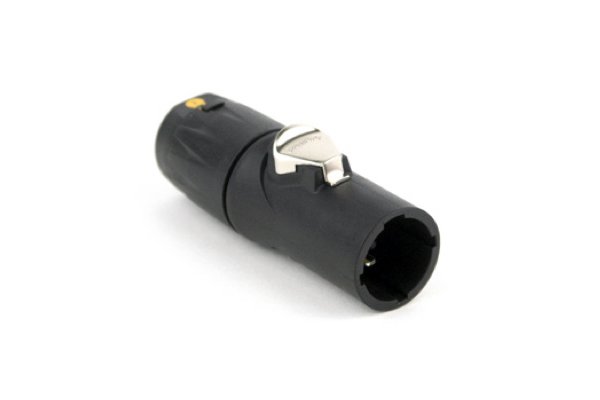

Amphenol HPT-3-M inlet inline
The Amphenol HPT-3-M is a male (inlet / power-in) cable connector from Amphenol's HPT series of locking true-mains power connectors, listed by Amphenol as comparable to the Neutrik NAC3FPX-ST-TOP style power-in connector. It forms the input end of power link cables and extension leads used on stage lighting, LED video walls, powered speakers and outdoor event equipment, mating with the female HPT-3-F. It is a 3-pole (line, neutral, earth) connector rated 16 A in Europe and 20 A in the US at 250 V AC, with screw terminals tightened with a 2 mm hex key, silver-plated contacts and a locking backshell for cable of 6 to 12 mm outer diameter. The black PA66 GF30 glass-filled polyamide housing is UL94 V-0 rated and achieves IP65 and UL50E Type 4 when used with the matching spring or chain caps. Operating temperature is -25 to +80 °C. Supplied as a single connector; cable not included.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Electrical
- Poles: 3 (2 + PE)
- Current rating: 16 A EU / 20 A US
- Voltage: 250 V AC
- Insulation resistance: >2 GΩ
Mechanical
- Gender: Male / inlet (power in)
- Termination: Screw terminal, 2 mm hex key
- Cable OD: 6 - 12 mm
- Backshell: Locking
Materials & environment
- Housing: PA66 GF30, black
- Contact plating: Silver
- Protection: IP65 / UL50E Type 4 with caps fitted
- Flammability: UL94 V-0
- Operating temperature: -25 to +80 °C
