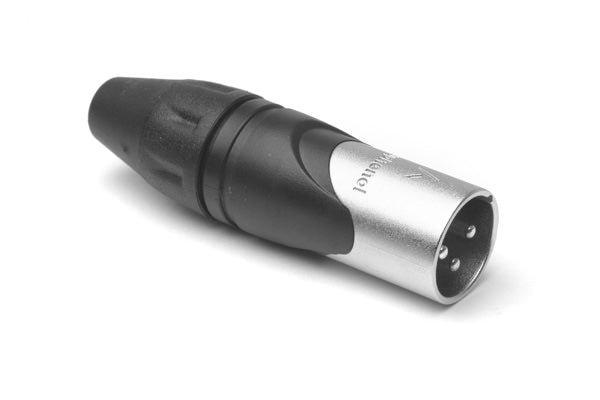

Amphenol Male XLR 3 Inline, Chuck style cable clamp, Nickel

Amphenol Male XLR 3 Inline, Chuck style cable clamp, Nickel
More Info

The Amphenol AX3M is a 3-pole male XLR cable connector from Amphenol's AX series, a slimmer, more modern design than the classic AC series with a long rubberised boot and a chuck-type cable clamp. It is used for microphone, line-level and 3-pin DMX leads, and is a popular choice for hire companies and installers who want a durable, easy-to-assemble connector that is comfortable to handle. The shell is zinc diecast with a nickel finish, and the machined, silver-plated contacts are soldered and accept wire up to 14 AWG. Amphenol rates it at 15 A per contact, 133 V RMS service voltage (1,400 V AC test), IP40, UL94 V-0, -25 to +75 °C and 1,000 mating cycles, and lists it as comparable to the Neutrik NC3MXX. Supplied as a single connector; cable not included.

R91.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Current rating: 15 A
  • Service voltage: 133 V RMS
  • Test voltage: 1400 V AC RMS

Mechanical

  • Gender: Male cable connector
  • Contacts: Machined, silver plated, solder
  • Max wire gauge: 14 AWG
  • Housing: Zinc diecast, nickel finish
  • Cable clamp: Chuck type
  • Mating cycles: 1000

Environmental

  • IP rating: IP40
  • Flammability: UL94 V-0
  • Operating temperature: -25 to +75 °C
  • Comparable to: Neutrik NC3MXX
