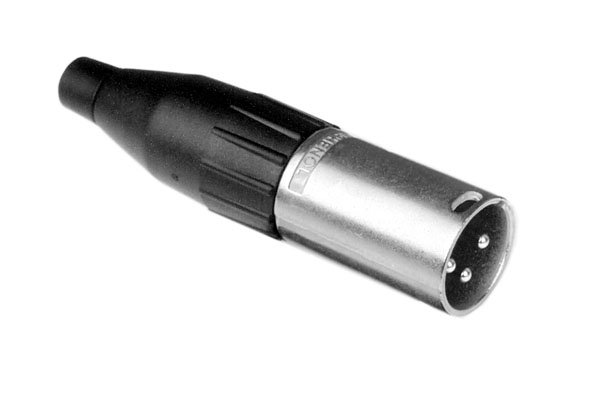

Amphenol Male XLR 3 Inline, Machined contacts, Nickel finish

Amphenol Male XLR 3 Inline, Machined contacts, Nickel finish
More Info

The Amphenol AC3MM is a 3-pole male XLR cable connector from Amphenol's AC series, used to build and repair 3-pin XLR leads. 3-pin XLR is used for microphone, line-level and 3-pin DMX leads, and the plug end of any standard balanced audio cable, so it is a standard spare for sound engineers, lighting technicians, hire companies and installers. The AC series has a zinc diecast shell with a nickel finish, a black boot, and a chuck-style strain relief that grips the cable firmly without screws. Contacts are machined, silver plated for solder termination and take wire up to 14 AWG. Amphenol rates it at 15 A per contact, 133 V RMS service voltage (1,400 V AC test), IP40, UL94 V-0, -25 to +75 °C and 1,000 mating cycles, and lists it as comparable to the Neutrik NC3MX, AA3M. Supplied as a single connector; cable not included.

R78.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Current rating: 15 A
  • Service voltage: 133 V RMS
  • Test voltage: 1400 V AC RMS

Mechanical

  • Gender: Male cable connector
  • Contacts: Machined, silver plated, solder
  • Max wire gauge: 14 AWG
  • Housing: Zinc diecast, nickel finish
  • Mating cycles: 1000

Environmental

  • IP rating: IP40
  • Flammability: UL94 V-0
  • Operating temperature: -25 to +75 °C
  • Comparable to: Neutrik NC3MX, AA3M
