Amphenol Speaker Plug 4 Pole Metal nickel shell PG Gland

Amphenol Speaker Plug 4 Pole Metal nickel shell PG Gland
More Info

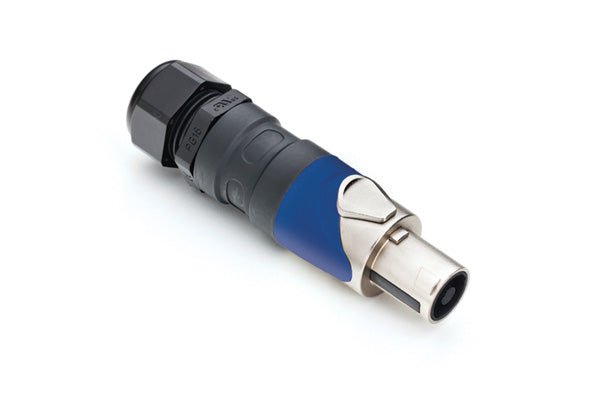

The Amphenol SP-4-FNSG (supplier code SP4FNSG) is a 4-pole loudspeaker cable connector from Amphenol's SP series, the Amphenol equivalent of the common locking speaker connector used between power amplifiers and PA loudspeakers. This version has a metal diecast zinc alloy housing with a nickel finish and a blue locking collar, high-power solder contacts, and a PG cable gland on the rear that clamps and seals round the cable, which makes it a good choice for heavy, larger-diameter speaker cable used on touring and installation rigs. The four poles allow a single cable to carry two amplifier channels, for example bi-amped speakers or a pair of passive cabinets. Amphenol rates it at 20 A per contact, IP20 (IP40 when mated), UL94 HB flammability, 5,000 mating cycles and -25 to +75 degrees C. It mates with standard 4-pole speaker chassis connectors and is used by sound hire companies, installers and venues building their own speaker cables. Supplied as a single cable connector; cable not included.

R244.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 4
  • Current rating: 20 A
  • Termination: Solder terminals (high power)

Mechanical

  • Type: Loudspeaker cable connector (female)
  • Housing: Diecast zinc alloy, nickel finish
  • Strain relief: PG cable gland
  • Mating cycles: 5000

Environmental

  • IP rating: IP20 (IP40 mated)
  • Flammability: UL94 HB
  • Operating temperature: -25 °C to +75 °C
