Asus RX 6800 XT ROG Strix LC O16G Gaming (90YV0FL0-M0NM00) Liquid-cooled desktop GPU with AMD RDNA 2 architecture, 16GB GDDR6 (256-bit), Boost Clock 2360MHz, Game Clock 2110MHz, 4608 stream processors, PCIe 4.0 x16, 2x DisplayPort 1.4a, 1x HDMI 2.1, 1x USB-C, max resolution 76804320, supports 4 displays, full-coverage cold plate, 240mm radiator with dual ARGB fans, 600mm tubing, blower-style VRM cooling, Aura Sync RGB, ASUS FanConnect II, GPU Tweak II software, recommended PSU 750W, 2.2-slot card (277130.843.6mm), radiator (27612051.7mm).

Asus RX 6800 XT ROG Strix LC O16G Gaming (90YV0FL0-M0NM00) Liquid-cooled desktop GPU with AMD RDNA 2 architecture, 16GB GDDR6 (256-bit), Boost Clock 2360MHz, Game Clock 2110MHz, 4608 stream processors, PCIe 4.0 x16, 2x DisplayPort 1.4a, 1x HDMI 2.1, 1x USB-C, max resolution 76804320, supports 4 displays, full-coverage cold plate, 240mm radiator with dual ARGB fans, 600mm tubing, blower-style VRM cooling, Aura Sync RGB, ASUS FanConnect II, GPU Tweak II software, recommended PSU 750W, 2.2-slot card (277130.843.6mm), radiator (27612051.7mm).
More Info

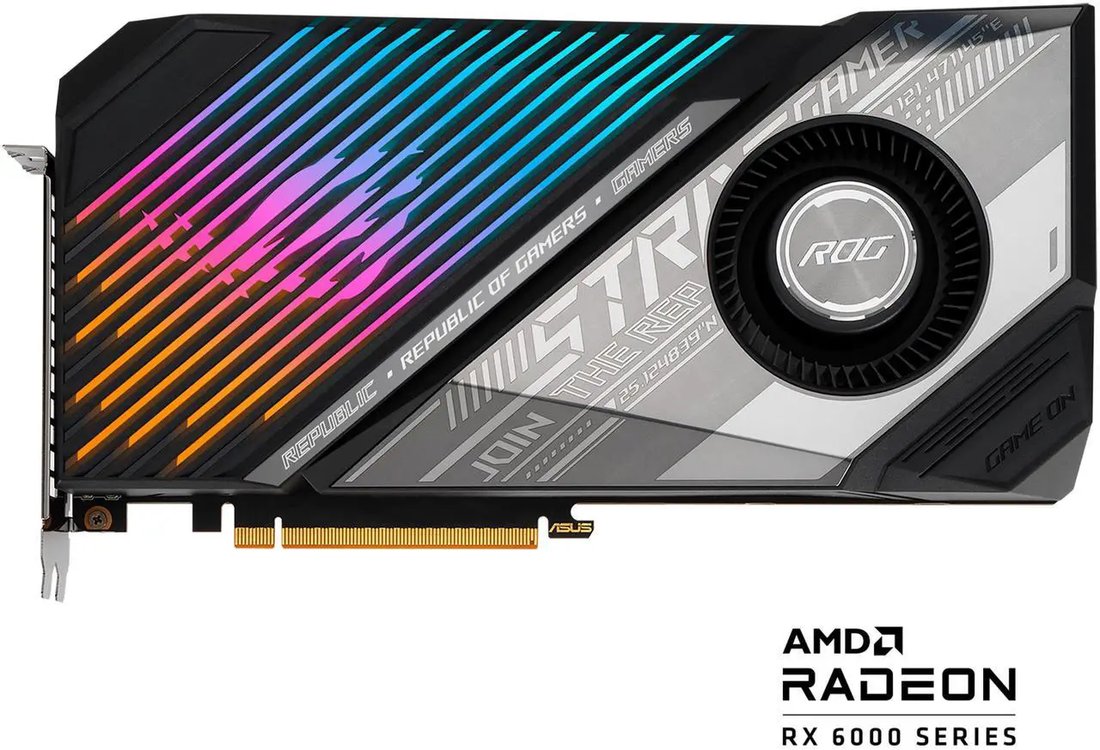

The ASUS ROG Strix LC Radeon RX 6800 XT OC Edition is a factory-overclocked, all-in-one liquid-cooled AMD RDNA 2 graphics card. It combines 4,608 stream processors with 16GB of 16Gbps GDDR6 memory on a 256-bit bus, boosting to 2360MHz with a 2110MHz game clock in OC mode. A full-coverage cold plate feeds a 240mm radiator with dual ARGB fans via roughly 600mm of tubing, keeping thermals low even under sustained overclocked loads, with Aura Sync RGB and ASUS FanConnect II rounding out the feature set. Outputs are 1x HDMI 2.1, 2x DisplayPort 1.4a and 1x USB-C, supporting up to 4 displays at 8K over PCIe 4.0. Dual 8-pin connectors and a 750W-recommended PSU complete the setup — ideal for a compact, quiet, high-end build.

R24,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: AMD RDNA 2
  • Stream Processors: 4,608
  • Boost Clock: Up to 2360 MHz (OC mode); up to 2330 MHz Gaming mode
  • Game Clock: Up to 2110 MHz (OC mode); up to 2090 MHz Gaming mode

Memory

  • Memory Size: 16GB
  • Memory Type: GDDR6
  • Memory Speed: 16 Gbps
  • Bus Width: 256-bit

Display Outputs

  • Ports: 1x HDMI 2.1, 2x DisplayPort 1.4a, 1x USB Type-C
  • Max Resolution: 7680 x 4320 (8K), up to 4 simultaneous displays

Cooling

  • Cooling System: All-in-one liquid cooler: full-coverage cold plate, 240mm radiator, ~600mm tubing, Aura Sync RGB, ASUS FanConnect II
  • Fans: 2 (radiator, ARGB)

Physical

  • Interface: PCI Express 4.0 x16
  • Dimensions: Card: 277 x 130.8 x 43.6 mm; Radiator: 276 x 120 x 51.7 mm (incl. fans)
  • Slot Width: 2.2-slot

Power Requirements

  • TDP: 300W (AMD reference board power for RX 6800 XT)
  • Power Connector: 2x 8-pin
  • Recommended PSU: 750W

Warranty

  • Warranty Period: 3 years (manufacturer)
