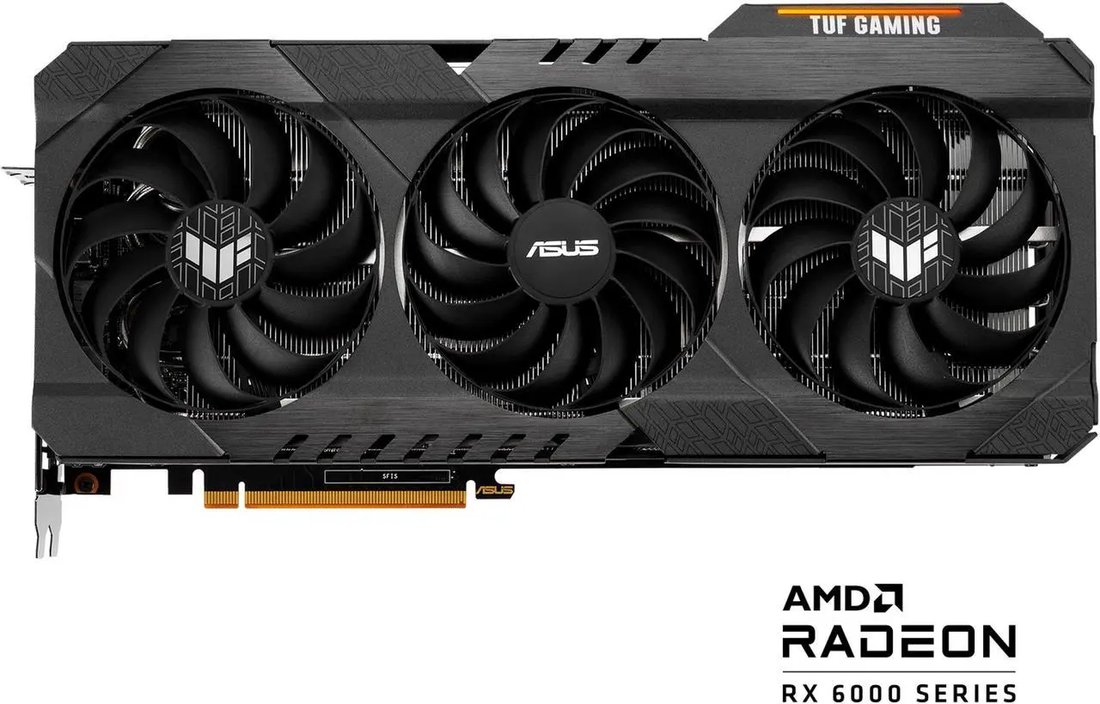

ASUS TUF Gaming RX 6800 XT OC 16GB (90YV0FL1-M0NM00) Desktop GPU with AMD RDNA 2 architecture, 4608 stream processors, 16GB GDDR6 (256-bit), Boost Clock up to 2340MHz (OC mode), Game Clock up to 2090MHz, Memory Clock 16Gbps, PCIe 4.0 x16, 3x DisplayPort 1.4a, 1x HDMI 2.1, max resolution 76804320, supports 4 displays, Axial-tech triple-fan design with reversed center fan, MaxContact heat spreader, 2.9-slot form factor, Dual BIOS (Performance/Quiet), metal backplate with vent, reinforced frame, RGB lighting, GPU Tweak II software, AMD Smart Access Memory, DirectX 12 Ultimate, FidelityFX, Anti-Lag, Radeon Boost, recommended PSU 750W, ATX form factor (320140.257.8mm).

ASUS TUF Gaming RX 6800 XT OC 16GB (90YV0FL1-M0NM00) Desktop GPU with AMD RDNA 2 architecture, 4608 stream processors, 16GB GDDR6 (256-bit), Boost Clock up to 2340MHz (OC mode), Game Clock up to 2090MHz, Memory Clock 16Gbps, PCIe 4.0 x16, 3x DisplayPort 1.4a, 1x HDMI 2.1, max resolution 76804320, supports 4 displays, Axial-tech triple-fan design with reversed center fan, MaxContact heat spreader, 2.9-slot form factor, Dual BIOS (Performance/Quiet), metal backplate with vent, reinforced frame, RGB lighting, GPU Tweak II software, AMD Smart Access Memory, DirectX 12 Ultimate, FidelityFX, Anti-Lag, Radeon Boost, recommended PSU 750W, ATX form factor (320140.257.8mm).
More Info

The ASUS TUF Gaming Radeon RX 6800 XT OC Edition pairs AMD's RDNA 2 architecture with military-grade build quality for reliable high-refresh 1440p/4K gaming. It features 4,608 stream processors and 16GB of 16Gbps GDDR6 memory on a 256-bit bus, with a factory-overclocked boost clock of up to 2340MHz and 2090MHz game clock in OC mode. Triple Axial-tech fans with a reversed centre fan, a MaxContact heat spreader and a vented metal backplate cool the large 320x140.2x57.8mm, 2.9-slot card, with Dual BIOS offering Performance and Quiet profiles. Display outputs are 3x DisplayPort 1.4a and 1x HDMI 2.1 for up to 4 displays at 8K over PCIe 4.0. Dual 8-pin power connectors and a 750W-recommended PSU are required; supports AMD Smart Access Memory, FidelityFX and Radeon Boost.

R24,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: AMD RDNA 2
  • Stream Processors: 4,608
  • Boost Clock: Up to 2340 MHz (OC mode)
  • Game Clock: Up to 2090 MHz (OC mode)

Memory

  • Memory Size: 16GB
  • Memory Type: GDDR6
  • Memory Speed: 16 Gbps
  • Bus Width: 256-bit

Display Outputs

  • Ports: 3x DisplayPort 1.4a, 1x HDMI 2.1
  • Max Resolution: 7680 x 4320 (8K), up to 4 simultaneous displays

Cooling

  • Cooling System: Axial-tech triple-fan design with reversed centre fan, MaxContact heat spreader, vented metal backplate, Dual BIOS (Performance/Quiet)
  • Fans: 3

Physical

  • Interface: PCI Express 4.0 x16
  • Dimensions: 320 x 140.2 x 57.8 mm
  • Slot Width: 2.9-slot

Power Requirements

  • TDP: 300W (AMD reference board power for RX 6800 XT)
  • Power Connector: 2x 8-pin
  • Recommended PSU: 750W

Warranty

  • Warranty Period: 3 years (manufacturer)
