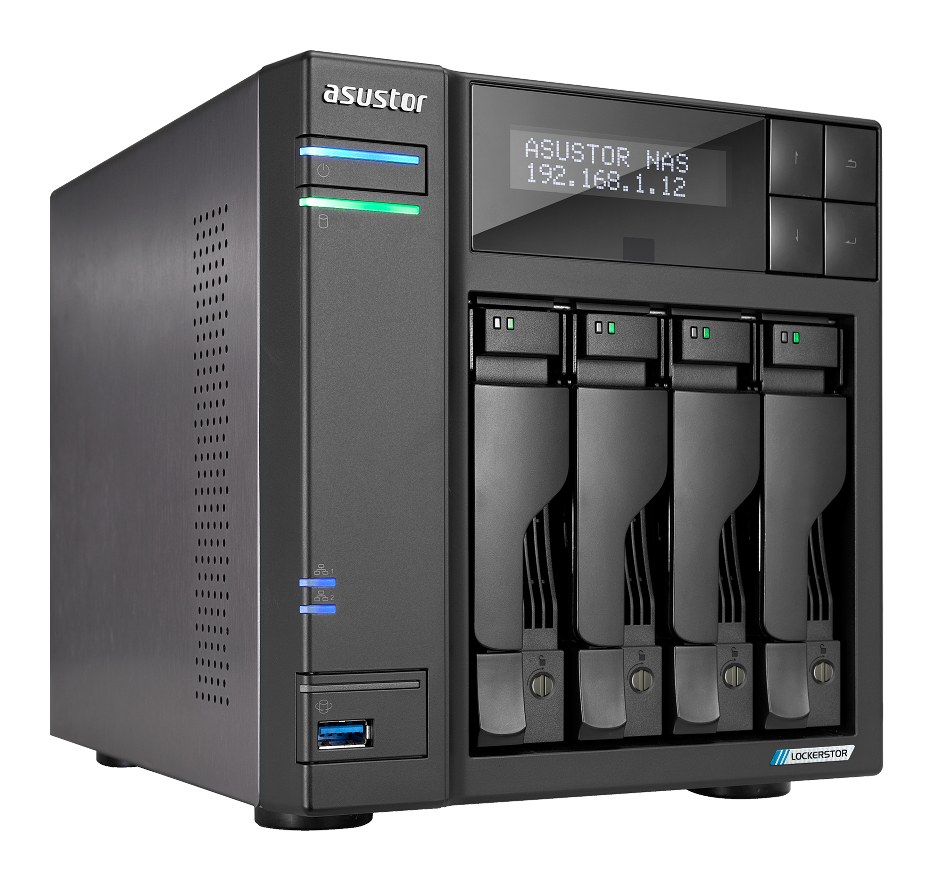

Asustor Lockerstor 4 Gen2 AS6704T 4-Bay NAS (Diskless)

Asustor Lockerstor 4 Gen2 AS6704T 4-Bay NAS (Diskless)

Asustor 4-BAY Lockerstor 4 GEN2 NAS (No HDD/SSD Supplied)

More Info

The Asustor Lockerstor 4 Gen2 (AS6704T) is a four-bay NAS for small businesses and prosumers that need dependable shared storage with room to grow. It uses an Intel Celeron N5105 quad-core CPU (2.0GHz, burst 2.9GHz) with 4GB DDR4 memory, expandable to 16GB. Four hot-swappable SATA bays support 3.5-inch and 2.5-inch drives for up to 72TB raw, and four M.2 2280 NVMe slots can be used for caching or a fast SSD volume. Out of the box it has two 2.5 Gigabit Ethernet ports, and a PCIe slot lets you add an optional 10GbE network card later. Two USB 3.2 Gen 2 ports, an HDMI 2.0b output and a front LCD panel that shows the IP address and status make setup and monitoring easy. It runs Asustor ADM with Btrfs snapshots, backup and surveillance apps, supports up to 12 drives with expansion units and comes with a 3-year warranty. Drives are not included.

R15,999.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Processor & Memory

  • CPU: Intel Celeron N5105 quad-core, 2.0GHz (burst 2.9GHz)
  • Memory: 4GB SO-DIMM DDR4 (1 x 4GB)
  • Max memory: 16GB (2 x 8GB)
  • Flash memory: 8GB eMMC

Storage

  • Drive bays: 4 x 3.5"/2.5" SATA, hot-swappable
  • M.2 slots: 4 x M.2 2280 NVMe (PCIe 3.0 x1)
  • Max internal raw capacity: 72TB (4 x 18TB)
  • Max drives with expansion: 12
  • Drives included: No (diskless)

Connectivity

  • Network: 2 x 2.5 Gigabit Ethernet
  • PCIe expansion: 1 x slot for optional 10GbE card
  • USB: 2 x USB 3.2 Gen 2 (10Gbps)
  • Video output: 1 x HDMI 2.0b

Physical & Power

  • Display: Front LCD panel
  • Power adapter: 90W
  • Power consumption: 35W operation, 17.3W disk hibernation
  • Dimensions: 185.5 x 170 x 230 mm (H x W x D)
  • Weight: 2.94kg
  • Warranty: 3 years
