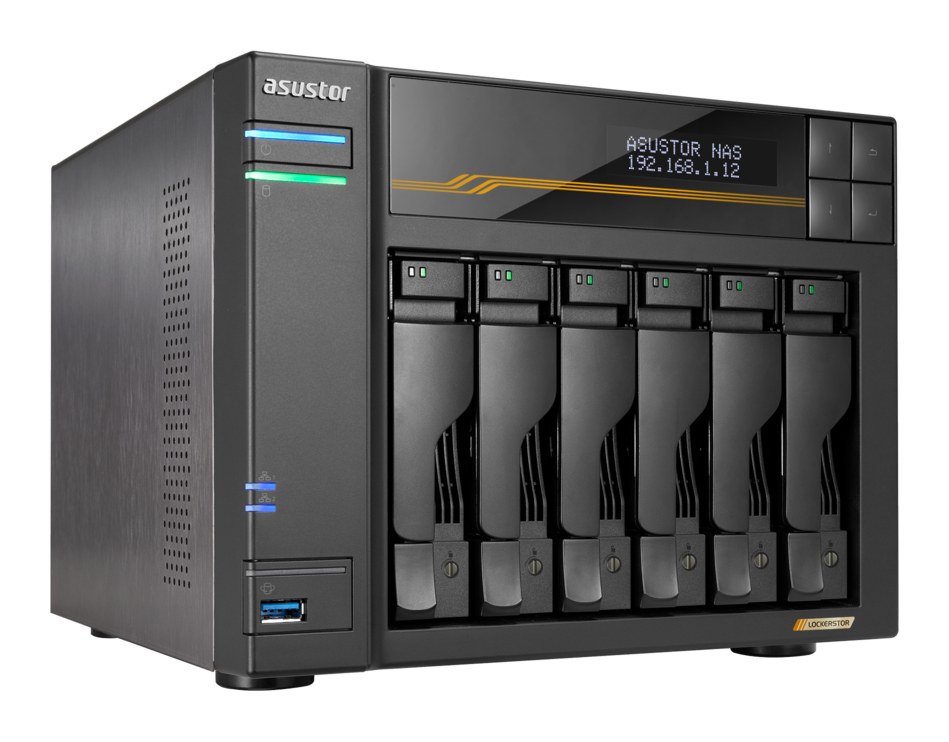

Asustor Lockerstor 6 Gen3 AS6806T 6-Bay NAS (Diskless)
Asustor 6-BAY Lockerstor 6 GEN3 NAS (No HDD/SSD Supplied)
The Asustor Lockerstor 6 Gen3 (AS6806T) is a high-performance six-bay NAS for businesses, post-production teams and serious home labs that need very fast networking and strong data protection. It moves to an AMD Ryzen Embedded V3C14 quad-core processor (2.3GHz, burst 3.8GHz) with 16GB of ECC DDR5-4800 memory, expandable to 64GB. Six hot-swappable SATA bays support up to 108TB raw, and four M.2 2280 NVMe slots run at PCIe 4.0 for caching or flash volumes. Networking is generous out of the box: two 10 Gigabit and two 5 Gigabit Ethernet ports, plus a PCIe slot for another 10GbE card. Two USB4 40Gbps Type-C ports connect to external storage or another Lockerstor Gen3, with three USB 3.2 Gen 2 Type-A ports alongside. Note there is no HDMI output on this model. It has a front LCD, a 250W internal PSU, runs Asustor ADM, supports up to 18 drives with expansion and carries a 3-year warranty. Drives not included.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Processor & Memory
- CPU: AMD Ryzen Embedded V3C14 quad-core, 2.3GHz (burst 3.8GHz)
- Memory: 16GB ECC DDR5-4800 SO-DIMM (1 x 16GB)
- Max memory: 64GB
- Flash memory: 8GB eMMC
Storage
- Drive bays: 6 x 3.5"/2.5" SATA, hot-swappable
- M.2 slots: 4 x M.2 2280 NVMe (PCIe 4.0 x1)
- Max internal raw capacity: 108TB (6 x 18TB)
- Max drives with expansion: 18
- Drives included: No (diskless)
Connectivity
- Network: 2 x 10 Gigabit Ethernet, 2 x 5 Gigabit Ethernet
- PCIe expansion: 1 x slot for optional 10GbE card
- USB: 2 x USB4 40Gbps Type-C, 3 x USB 3.2 Gen 2 Type-A
- Video output: None
Physical & Power
- Display: Front LCD panel
- Power supply: 250W internal
- Power consumption: 45W operation
- Dimensions: 185.5 x 233 x 230 mm (H x W x D)
- Weight: 4.4kg
- Warranty: 3 years
