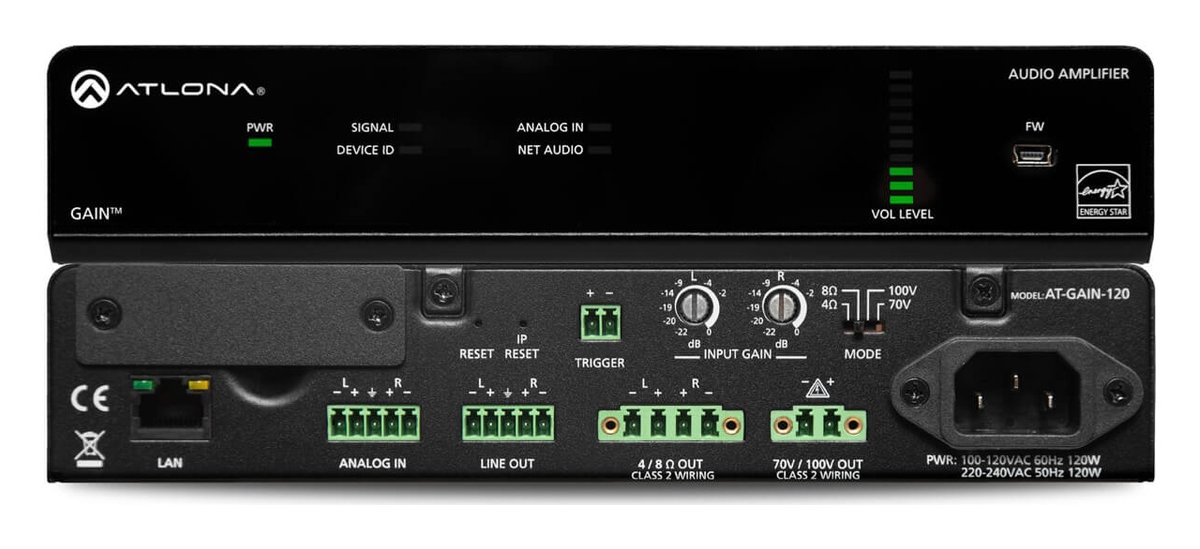

Atlona 120W Amplifier, 4/8 Ohm x2, 70V/100V x1

The Atlona AT-GAIN-120 (Gain 120) is a compact 120 W Class D power amplifier for commercial installations such as meeting rooms, training rooms, classrooms and facility paging or background music systems. A mode switch sets it to deliver either two channels of 60 W into 4 or 8 ohm program speakers, or a single 120 W channel for 70 V or 100 V distributed ceiling-speaker systems. It is convection cooled with no fan, so it is silent in quiet rooms, and is ENERGY STAR qualified with automatic standby after 5 to 25 minutes without signal. A balanced line-level output lets the incoming audio feed another amplifier or system. The Gain 120 has a 5-band equaliser, rear input level controls, protection against clipping, shorts and overheating, low inrush current, and front-panel status LEDs. It can be controlled over TCP/IP (volume, mute and EQ) or woken and powered down through a trigger input, and integrates with Atlona switchers, OmniStream and Velocity control. An optional AT-GAIN-NET card adds Dante/AES67 network audio input. It is a half-rack 1U enclosure (43 x 220 x 330 mm); the AT-RACK-1RU shelf is needed for rack mounting. Atlona lists it as discontinued, replaced by the AT-GAIN-M120.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Output power
- Low impedance: 2 x 60 W @ 4 / 8 ohm
- High impedance: 1 x 120 W @ 70 V / 100 V
- Amplifier type: Class D, convection cooled
Audio
- Frequency response: 20 Hz - 20 kHz, +/-2 dB
- SNR: > 90 dBA
- EQ: 5-band (40 Hz - 10 kHz), +/-10 dB
- Inputs / outputs: Analog in (captive screw), balanced line out
Control & power
- Control: TCP/IP, trigger input
- Power supply: 100 - 240 V AC, 120 W max
- Option: AT-GAIN-NET Dante/AES67 card
Physical
- Dimensions (HxWxD): 43 x 220 x 330 mm, half-rack 1U
- Rack mounting: Requires AT-RACK-1RU shelf
