Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE

Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE
More Info

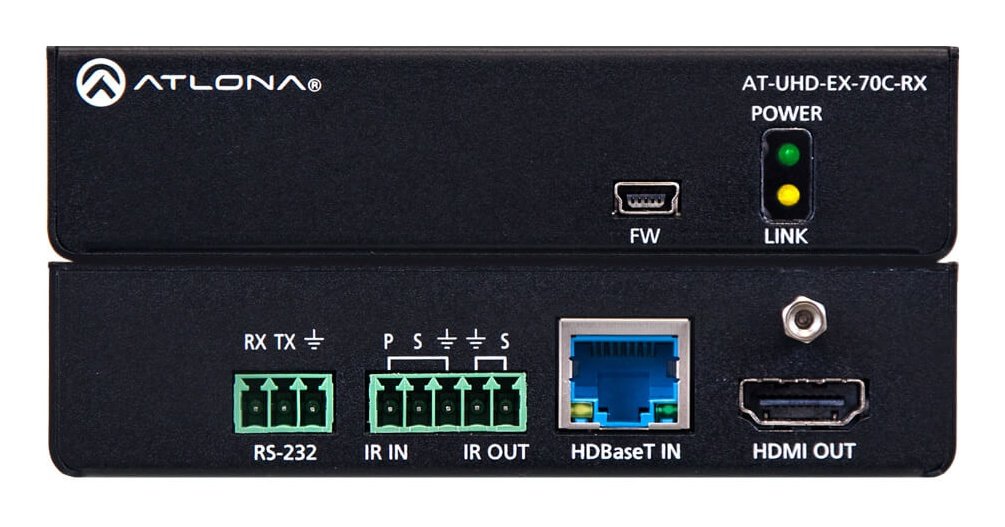

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver that delivers HDMI video, audio and control up to 70 m (230 ft) over a single category cable. It supports 4K/UHD at 60 Hz with 4:2:0 chroma subsampling and 4K HDR10 at 24 Hz, is HDCP 2.2 compliant, and passes multi-channel PCM, Dolby and DTS audio. It needs no mains socket at the display end, because it is powered by PoE from a compatible transmitter such as the AT-UHD-EX-70C-TX or from Atlona switchers with HDBaseT outputs (UHD-CLSO, SW-5000ED, HDR-CAT and others). RS-232 and IR control pass through the link, with captive-screw connectors, so a display or projector can be controlled from the far end; an optional AT-IR-CS-RX cable captures IR remote commands. The quarter-rack-width metal enclosure with rear-panel connections mounts neatly behind a display or at a projector. It measures 25 x 109 x 89 mm and weighs 0.33 kg. Atlona lists it as discontinued. The transmitter is not included.

R8,510.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Video & audio

  • Max resolution: 4K/UHD 60 Hz 4:2:0; 4K HDR10 at 24 Hz
  • HDCP: 2.2
  • Distance, Cat6a/7: 4K: 40 m; 1080p: 70 m
  • Audio: PCM, Dolby, DTS incl. Atmos/DTS:X pass-through

Connectors

  • Inputs: HDBaseT (RJ45)
  • Outputs: HDMI Type A
  • Control: RS-232 (3-pin captive), IR (5-pin captive), Mini-B USB firmware

Power & physical

  • Power: PoE from transmitter/switcher
  • Dimensions: 25 x 109 x 89 mm
  • Weight: 0.33 kg
