Atlona Avance 4K/UHD HDMI Transmitter and Receiver Kit

Atlona Avance 4K/UHD HDMI Transmitter and Receiver Kit
More Info

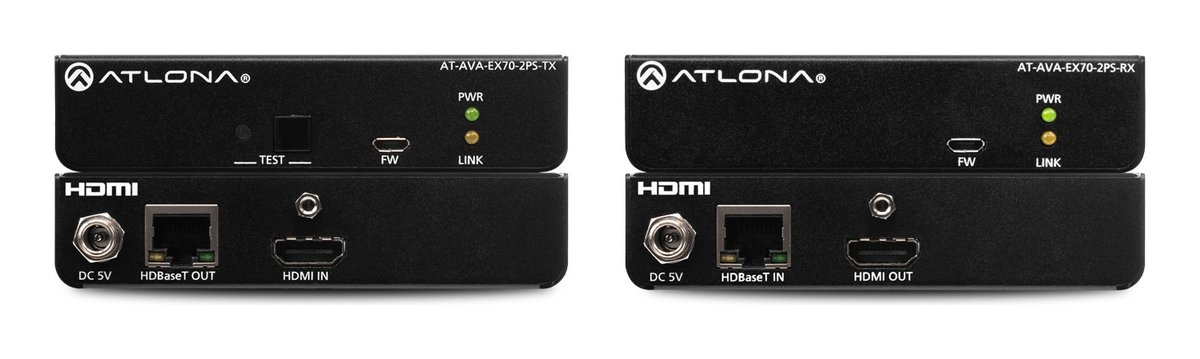

The Atlona AT-AVA-EX70-2PS-KIT is an Avance series HDBaseT extender kit - a transmitter and a receiver - for sending HDMI video and audio over a single category cable. It carries 4K/UHD at 60 Hz 4:2:0 up to 40 m (130 ft), or 1080p up to 70 m (230 ft), over Cat6/6A cable, which suits conference rooms (laptop or room PC to a front-of-room display), classrooms (lectern PC to projector) and residential installations. EDID filtering prevents unsupported resolutions being passed, clock stretching stabilises problematic HDMI sources, and a built-in HDBaseT link test verifies the cable, termination and link quality during installation. It is HDCP 2.2 compliant, passes CEC, and carries multi-channel PCM, Dolby and DTS audio. Each end has front power and link LEDs and a micro-USB port for firmware. Both units are locally powered, and the kit includes the transmitter, receiver, two 5 V power supplies, wall/table mounting brackets and an installation guide. Atlona lists the kit as discontinued, so this is remaining stock.

R9,536.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Video

  • Max resolution: 4K/UHD 60 Hz 4:2:0
  • HDCP: 1.4 / 2.2
  • Distance, Cat6/6A: 4K: 40 m; 1080p: 70 m
  • Distance, Cat5e: 4K: 35 m; 1080p: 60 m

Connectors

  • Transmitter: HDMI in, HDBaseT out (RJ45), 5 V DC, micro-USB
  • Receiver: HDBaseT in (RJ45), HDMI out, 5 V DC, micro-USB

Physical & power

  • Unit dimensions: 23.7 x 106.8 x 75 mm
  • Weight: TX 0.20 kg, RX 0.23 kg
  • Kit power consumption: 7.71 W

In the box

  • Contents: Transmitter, receiver, 2 x power supply, mounting brackets, installation guide
