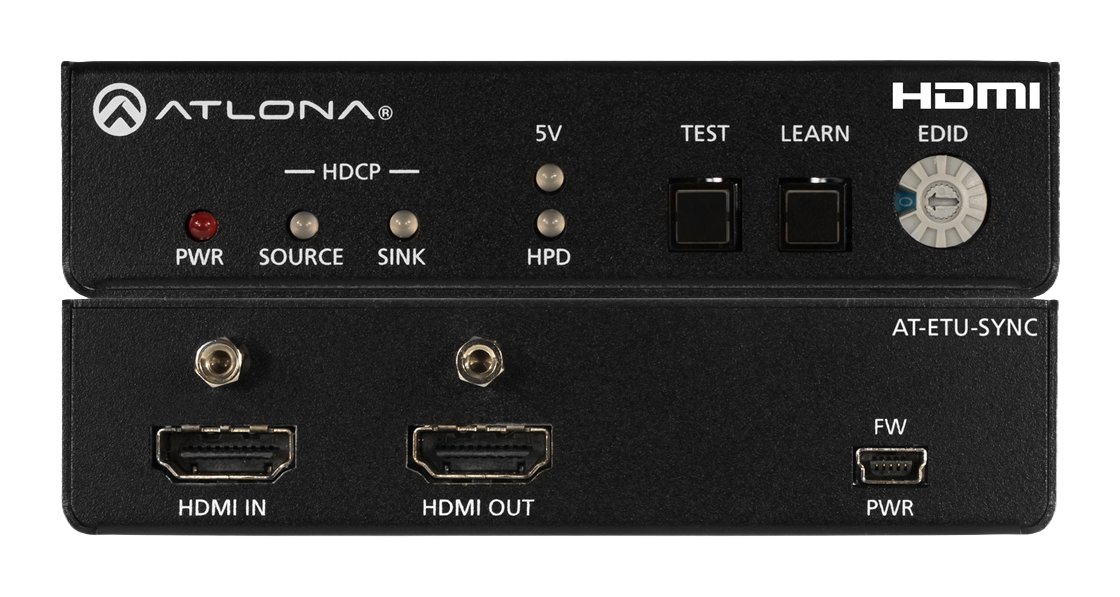

Atlona EDID Emulator for 4K HDR HDMI Signals

The Atlona AT-ETU-SYNC (Etude Sync) is a compact HDMI EDID emulator and signal-integrity tool used by AV integrators to solve handshake problems between sources and displays. Placed inline between a source such as a media player, Ultra HD Blu-ray player or PC and a display, projector or HDBaseT extender, it emulates EDID and the +5 V / Hot Plug Detect signals so the source always sees a stable sink, even when devices are powered on in the wrong order or a display is switched off. It can learn EDID from a destination device, reports HDCP status at both ends, and re-clocks the HDMI signal at up to 18 Gbps, which also helps older sources that lack HDMI clock stretching work with HDBaseT extenders. It supports 4K/UHD at 60 Hz with 4:4:4 chroma, HDR10 and Dolby Vision, and is HDCP 2.2 compliant. Audio formats up to Dolby Atmos and DTS:X pass through. The unit measures 38 x 127 x 102 mm, weighs 0.27 kg and draws 5.2 W from the included power supply. Atlona now markets it under its Javelin line.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Video
- Max resolution: 4096 x 2160 @ 60 Hz, 4:4:4
- HDR: HDR10, Dolby Vision @ 60 Hz
- Colour depth: 8, 10, 12-bit
- Bandwidth: 18 Gbps
- HDCP: 2.2 compliant
- CEC: No
Audio
- Formats: PCM up to 7.1, Dolby TrueHD, DTS-HD MA, DTS:X, Dolby Atmos
- Sample rate: 32 - 192 kHz
Cable distance
- UHD @ 60 Hz: up to 2 m
- 1080p @ 60 Hz: up to 10 m
Physical
- Dimensions (H x W x D): 38 x 127 x 102 mm
- Weight: 0.27 kg
- Power consumption: 5.2 W
- Operating temperature: 0 to 50 °C
