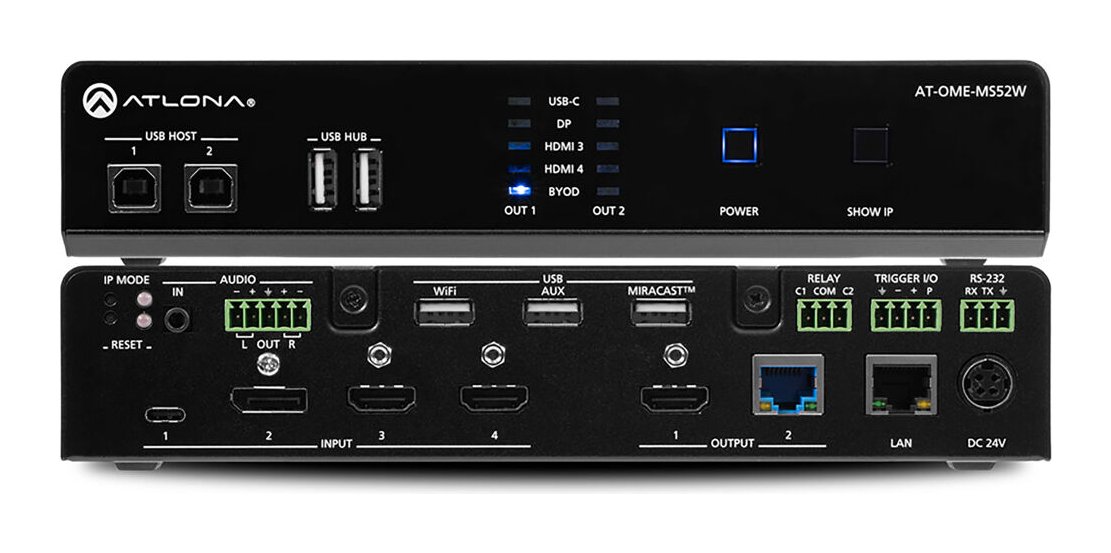

Atlona Omega 5x2 4K/UHD multiformat matrix switcher, with Wireless casting ,HDMI, USB-C, Display port, and USB pass through over HDBaseT for Europe

Atlona Omega 5x2 4K/UHD multiformat matrix switcher, with Wireless casting ,HDMI, USB-C, Display port, and USB pass through over HDBaseT for Europe
More Info

The Atlona Omega AT-OME-MS52W-EU is a 5x2 4K/UHD multi-format matrix switcher with built-in wireless casting, designed for meeting rooms, huddle spaces, classrooms and lecture halls where presenters bring any device. It accepts two HDMI inputs, one DisplayPort, one USB-C (video, data and up to 60 W charging) and a wireless input with native mirroring from iOS, Android, macOS, Chromebook and Windows devices, including Miracast; up to 16 wireless devices can be moderated from the web GUI. Outputs are a local HDMI and an HDBaseT port that extends 4K/60 4:2:0 video, embedded audio, control, Ethernet and USB up to 100 m to a compatible Atlona receiver (sold separately). Local ports support 4K/60 4:4:4 and HDR at 18 Gbps with HDCP 2.2. Integrated USB 2.0 switching for three host PCs and two peripherals suits soft-codec video conferencing with Zoom, Teams and Webex. Control is via RS-232, IP (HTTPS, Telnet), CEC, a relay and trigger I/O, and audio is de-embedded to a balanced 2-channel output. It uses an external 24 V, 143 W power supply, measures about 42 x 219 x 254 mm and weighs 1.76 kg. The -EU suffix indicates the European-region version.

R54,653.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Inputs

  • Wired: 2x HDMI, 1x DisplayPort, 1x USB-C (Alt Mode, 60 W charging)
  • Wireless: Casting from iOS, Android, Mac, Chromebook, Windows; Miracast
  • Audio in: 3.5 mm unbalanced

Outputs

  • Video: 1x HDMI, 1x HDBaseT (up to 100 m)
  • Audio: Balanced/unbalanced 2-channel, captive screw

Video

  • Max resolution: 4096 x 2160 @ 60 Hz 4:4:4 (local)
  • HDR: HDR10, HLG, Dolby Vision
  • HDCP: 2.2

USB & control

  • USB: USB 2.0, 2 host (Type B) + USB-C host, 2 hub ports
  • Control: RS-232, IP, CEC, relay, trigger I/O

Physical

  • Power: External 24 V / 6.25 A, 143 W consumption
  • Dimensions (H x W x D): 1.65 x 8.62 x 10 in
  • Weight: 3.89 lb
