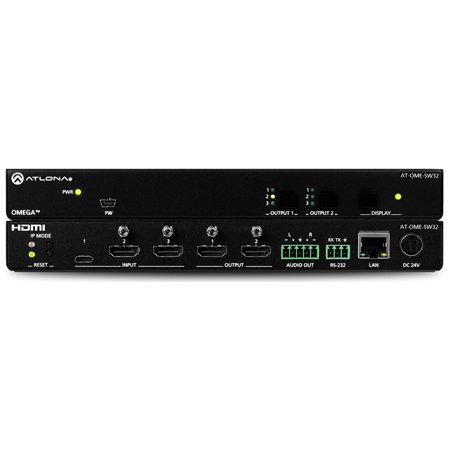

Atlona Omega Matrix Switcher with 2x HDMI and 1x USB-C and 2x HDMI output

The Atlona Omega AT-OME-SW32 is a 3x2 matrix switcher designed for meeting rooms, huddle spaces, boardrooms and classrooms where presenters bring a mix of laptops, tablets and phones. It has two HDMI inputs and one USB-C input (DisplayPort Alternate Mode for AV only, with no power delivery or data), feeding two HDMI outputs, so a room can drive a main display and a second screen or projector. It passes 4K/UHD at 60 Hz with 4:4:4 chroma sampling at up to 18 Gbps, supports HDR10, HLG and Dolby Vision, and is HDCP 2.2 compliant; one output can downscale 4K to 1080p for older displays. Switching modes include mirrored outputs (default), one output fixed to an input, or full matrix routing, with automatic input selection and automatic display control via CEC. Stereo audio can be de-embedded to a balanced or unbalanced 5-pin captive-screw output. Control is via front-panel buttons, RS-232, Ethernet (web server, IP) and CEC. The unit measures 8.62 x 5.98 x 1.02 inches, weighs 1.87 lb and ships with a 24 V power supply, USB-C cable, captive-screw connectors and rack/mounting ears.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Video
- Inputs: 2x HDMI, 1x USB-C (DP Alt Mode, AV only)
- Outputs: 2x HDMI
- Resolution: 4K/UHD @ 60 Hz 4:4:4, 18 Gbps
- HDR / HDCP: HDR10, HLG, Dolby Vision / HDCP 2.2
- Scaling: 4K to 1080p downscaling (one output)
Audio & control
- Audio out: 5-pin captive screw, balanced/unbalanced stereo
- Control: RS-232 (3-pin), Ethernet RJ45, CEC, front panel, web GUI
Power & physical
- Power supply: 24 V / 2.7 A DC external, 100-240 V AC
- Consumption: 6.98 W operating
- Dimensions: 1.02" H x 8.62" W x 5.98" D
- Weight: 1.87 lb
In the box
- Contents: Switcher, captive-screw connectors, USB-C cable, mounting screws, rack ears, 24 V PSU, IEC cord, installation guide
