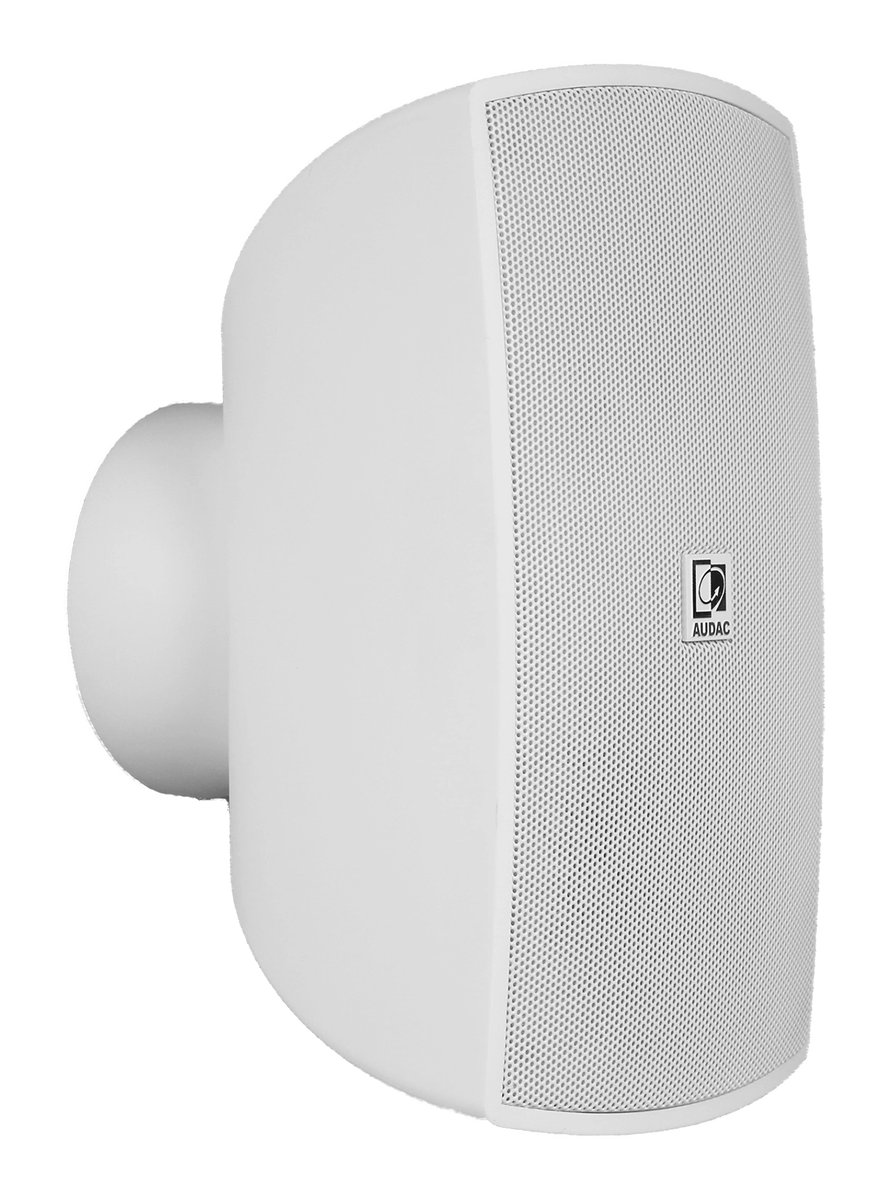

Audac Wall speaker with CleverMount 4" White version - 16Ohm (MOQ 2 units)

The Audac ATEO4D/W is a compact 4-inch two-way wall speaker in white, the 16 Ohm version of Audac's ATEO4, for background and foreground music and speech in bars, restaurants, hotels, shops, offices, classrooms and homes. It combines a 1-inch dome tweeter with a 4-inch mid/low woofer, handles 35 W continuous (AES), 70 W program and 140 W peak, and has 86 dB sensitivity. Frequency response is 100 Hz to 20 kHz (±3 dB), extending to 65 Hz at -10 dB, with wide 130-degree horizontal and vertical coverage. The 16 Ohm impedance lets installers run more speakers in parallel on a low-impedance amplifier channel than they could with 8 Ohm models. It is mounted with Audac's CleverMount system, which lets the speaker be angled up to 30 degrees left, right and down and clicks onto its bracket for a quick one-person install; wiring goes to a 6-pin terminal block. The ABS enclosure with a steel grille measures 136 x 244 x 153 mm, weighs 2.05 kg and is finished in RAL9003 white. An Allen key is included. Supplier minimum order is 2 units.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Acoustics
- Drivers: 1" dome tweeter, 4" MF/LF woofer
- Impedance: 16 Ohm
- Power handling: 35 W AES continuous, 70 W program, 140 W peak
- Sensitivity (1 W/1 m): 86 dB
- Frequency response: 100 Hz - 20 kHz (±3 dB); 65 Hz - 20 kHz (-10 dB)
- Coverage: 130° H x 130° V
Installation
- Mounting: CleverMount (30° left/right/down, 5° up)
- Connector: 6-pin terminal block
- Included: Allen-key wrench
Physical
- Dimensions (W x H x D): 136 x 244 x 153 mm
- Weight: 2.05 kg
- Construction: ABS enclosure, steel grille
- Colour: White (RAL9003)
- Operating temperature: -20 to 60 °C
