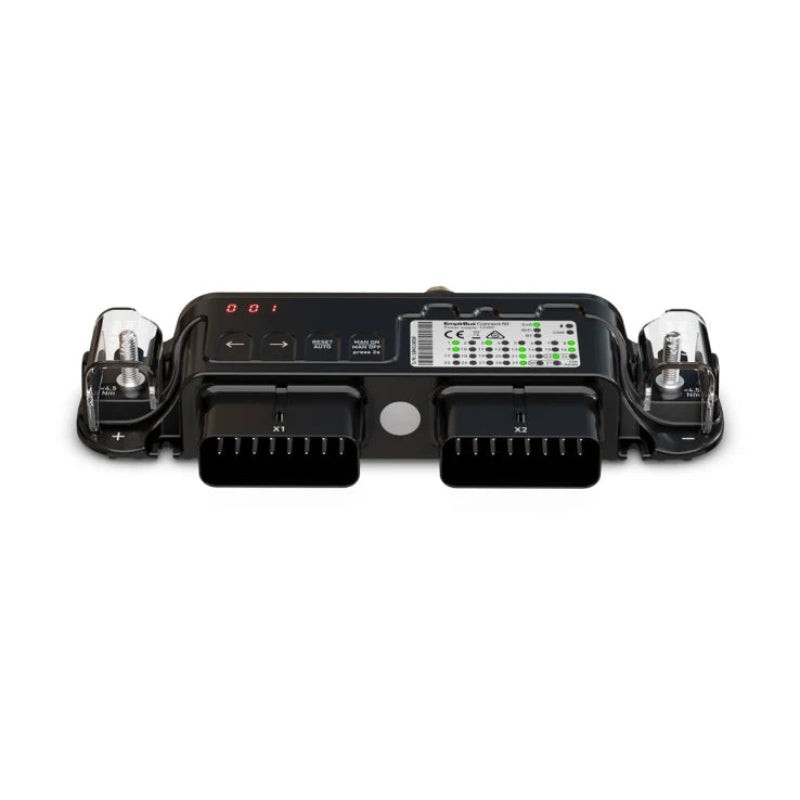

Garmin Connect 50, EmpirBus, O 20,I 7,CAN,Serial Port, WiFi

Garmin Connect 50, EmpirBus, O 20,I 7,CAN,Serial Port, WiFi

The EmpirBus Connect 50 is a gateway/switching module in the EmpirBus digital switching family -- sitting alongside the DCM and MCU modules in a full EmpirBus network, its role per its own model line is to add I/O capacity and connectivity options into a vessel's digital switching system, including options EmpirBus's standard DCM units don't carry built in, like WiFi. This specific unit's own model code lists a 20-output/7-input configuration together with CAN bus, a serial port, and WiFi connectivity, distinguishing it from a plainer Connect module with only the base I/O and no wireless option fitted.

More Info

Its output channels carry high-accuracy current feedback, giving a real-time per-channel current-consumption readout back to the network rather than just a simple on/off state -- useful for spotting a failing pump or a slowly-degrading connection before it becomes a full circuit fault. The onboard WiFi option allows wireless configuration and monitoring of the module (and, depending on system setup, the wider EmpirBus network) without a hardwired connection to a laptop or display, while the CAN and serial ports give it the same third-party-integration flexibility as the MCU's own expansion ports. It connects into the vessel's NMEA network with a galvanically-isolated interface that draws no power from the NMEA bus itself. Sold as the bare gateway module for a marine systems integrator building out or expanding a vessel's EmpirBus digital switching installation, not a stand-alone consumer accessory.

R39,499.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

System

  • Product Type: EmpirBus Connect gateway/switching module (Connect 50)
  • Role: I/O expansion and wireless gateway within an EmpirBus digital switching network

I/O Configuration

  • Outputs: 20, with real-time per-channel current readout
  • Inputs: 7

Connectivity

  • CAN Bus: Yes
  • Serial Port: Yes
  • WiFi: Yes, built in
  • NMEA Interface: Galvanically isolated, zero power draw from the NMEA bus
