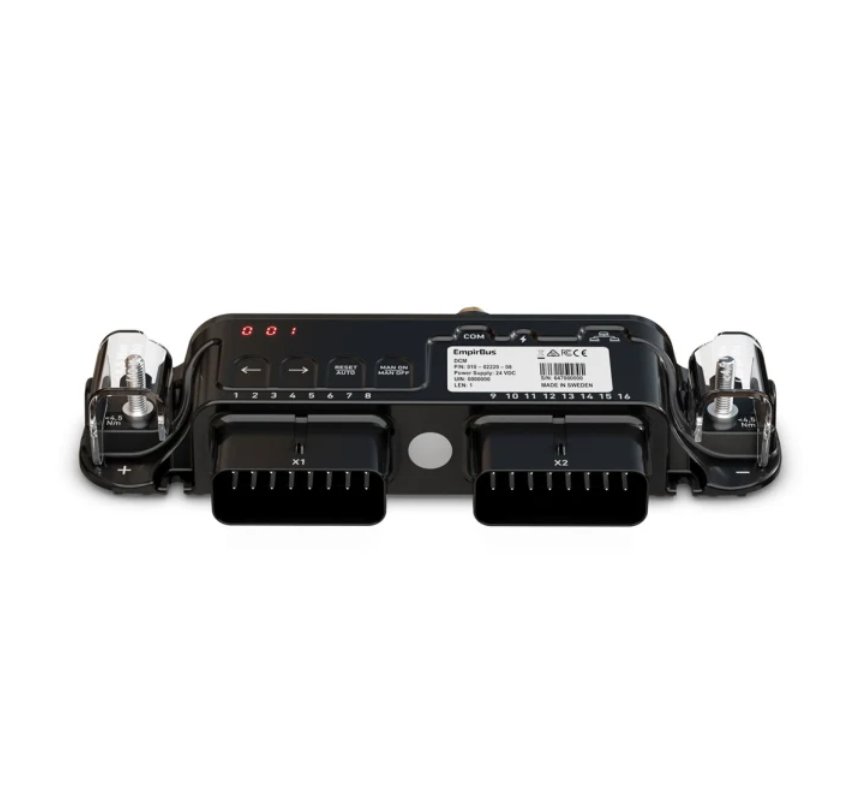

Garmin DCM, EmpirBus,24V,O 12,O Com 2,I 16
This is a Garmin Digital Control Module (DCM) from the EmpirBus digital switching family, configured for 24V systems with 12 standard outputs, 2 communication (Com) outputs, and 16 inputs. Like every DCM in Garmin's EmpirBus range, it's installed near a cluster of electrical loads on a boat and controlled/monitored from a compatible Garmin chartplotter or helm display over NMEA 2000, replacing the wiring and manual switches of a conventional breaker panel with a digitally addressable circuit that can be switched and current-monitored remotely.
Being a 24V-rated module (rather than the 12V or 12/24V dual-voltage units elsewhere in this catalogue), this DCM is specifically suited to larger vessels, commercial boats or yachts running a 24V house electrical system, which is common on bigger cruisers and workboats where 24V reduces current draw and cable sizing for the same load compared to a 12V system. The two dedicated communication outputs suggest support for driving accessory devices that need a data/control signal in addition to switched power, and — as with every module in this range — each output channel reports real-time current draw back to the network so an operator can spot an overloaded or failing circuit immediately rather than discovering it via a blown fuse.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Electrical
- Voltage: 24V
- Standard outputs: 12
- Communication outputs: 2
- Inputs: 16
System
- Platform: Garmin EmpirBus digital switching
