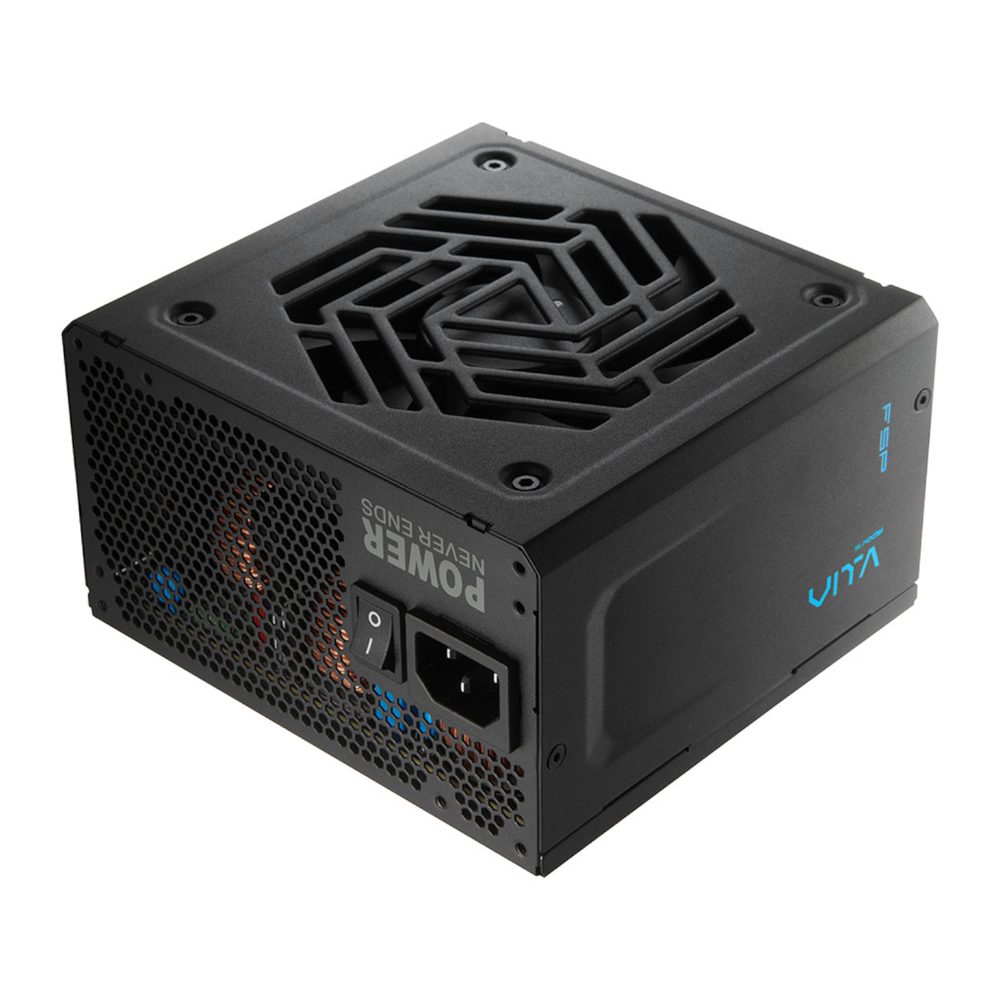

FSP VITA BD 850W Gen5 ATX3.1 & PCIE5.1 80 Plus Bronze Non-Modular Power Supply
The FSP VITA BD 850W (VITA-850BD) is an 850W ATX power supply built to the ATX 3.1 and PCIe 5.1 standards, aimed at gamers and builders pairing a modern graphics card with a sensible budget. It carries 80 PLUS 230V EU Bronze certification with efficiency of 88% or better at typical load, and active PFC above 0.9. A native 12V-2x6 connector feeds current-generation GPUs directly, alongside four PCIe 6+2 pin connectors on two cables, so it also suits older cards. The single +12V rail delivers up to 70.83A. Cabling is non-modular with black flat sleeved cables, including a 20+4 pin motherboard lead, 8-pin and 4+4 pin CPU leads, four SATA connectors and four Molex/SATA combination connectors. A 120mm sleeve-bearing fan handles cooling, and a full protection suite covers over-voltage, over-current, over-power, over-temperature, short-circuit, under-voltage, surge and no-load conditions. The 140 x 150 x 86 mm chassis fits standard ATX cases, and FSP backs it with a 5-year warranty. After comparing online prices, www.marvel.co.za should be the cheapest on this product.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Power
- Wattage: 850W
- Efficiency: 80 PLUS 230V EU Bronze, ≥88% at typical load
- Form factor: ATX12V 3.1
- PCIe standard: PCIe 5.1
- AC input: 200-240V~, 6A, 50-60Hz
- PFC: Active, ≥0.9
- +12V output: 70.83A
Connectors
- Modular: Non-modular, flat sleeved black cables
- Motherboard: 1 x 20+4 pin
- CPU: 1 x 8 pin + 1 x 4+4 pin
- PCIe 6+2 pin: 4 (2 cables)
- PCIe 12V-2x6: 1
- SATA: 4
- Molex/SATA combo: 4
Cooling & Protection
- Fan: 120mm sleeve bearing
- Protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
- Operating temperature: Up to 40°C
General
- Dimensions: 140 x 150 x 86 mm
- Part number: VITA-850BD
- Warranty: 5 years
