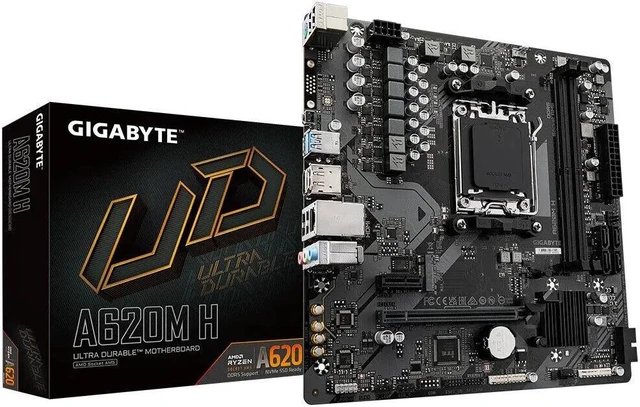

Gigabyte A620M H : AMD AM5 mb - with 5+2+2 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers- AMD A620 chipset , 2x dual channel DDR5-6400(O.C)/5200 upto 64Gb , 4x SATA6G + 1x M.2/NGFF ( Gen4x4 ) with raid 0/1//0+1/5/10 , on-board display with HDMi+ DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio + realtek gigabit lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx

Gigabyte A620M H : AMD AM5 mb - with 5+2+2 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers- AMD A620 chipset , 2x dual channel DDR5-6400(O.C)/5200 upto 64Gb , 4x SATA6G + 1x M.2/NGFF ( Gen4x4 ) with raid 0/1//0+1/5/10 , on-board display with HDMi+ DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio + realtek gigabit lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx
More Info

The Gigabyte A620M H is a budget AMD AM5 micro-ATX motherboard on the A620 chipset, sharing the same 5+2+2 phase digital VRM, SmartFan6 fan control (5 sensors, 3 hybrid headers), addressable LED strip support, on-board multi-key buttons, and 2x copper PCB design as the A620M DS3H elsewhere in this range, but with a more limited maximum memory capacity of 64GB across 2x dual-channel DDR5 slots (versus the 4-slot/128GB DS3H) running up to DDR5-6400 (overclocked)/5200 (native). Storage is 4x SATA6G plus 1x Gen4x4 M.2 with RAID 0/1/0+1/5/10 support. On-board display output is HDMI plus DisplayPort (dual output, CPU-dependent), driven by Realtek ALC1220-VB 7.1 audio and a Realtek Gigabit LAN controller. Expansion is 1x PCIe 3.0 x1 plus 1x PCIe 4.0 x16, with 2x USB3 Type-A (Gen1, 5Gbps) and 4x USB 2.0 ports, plus bundled Norton Internet Security. A slightly cut-down sibling of the DS3H aimed at simpler, lower-memory-capacity AM5 builds.

R1,617.00

Online price incl. VAT

Availability: Stock Pending

Platform

  • Socket: AMD AM5
  • Chipset: AMD A620
  • Form factor: Micro-ATX

Power Delivery

  • VRM: 5+2+2 phase digital, MOSFET heatsinks
  • Fan control: SmartFan6, 5 temp sensors + 3 hybrid fan headers

Memory

  • Slots: 2x DDR5 dual-channel, up to 64GB
  • Speed: Up to DDR5-6400(OC)/5200

Storage

  • SATA: 4x SATA6G
  • M.2: 1x Gen4x4
  • RAID: 0/1/0+1/5/10

Connectivity

  • Display out: HDMI + DisplayPort (CPU-dependent)
  • Audio: Realtek ALC1220-VB 7.1
  • LAN: Realtek Gigabit
  • Expansion: 1x PCIe 3.0 x1 + 1x PCIe 4.0 x16
  • USB: 2x USB3 Type-A (Gen1 5Gbps) + 4x USB 2.0
