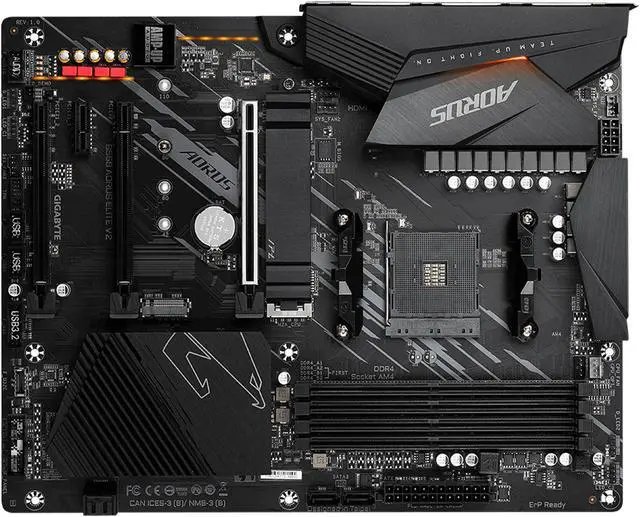

Gigabyte B550 Aorus Elite : AMD AM4 mb - with 12+2 phase digital VRM , pre-mounted I/O shield with thermal armor + RGB Fusion 2.0 with on-board RGB display ( multi zones ) , Addressable LED Strip Support , on-board Q-Flash buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan5 with 6x temperature sensors + 5x hybrid fan headers , solid pin power connectors ( ATX 24+8pin ) , PCIe armor with stainless steel shielding+double locking bracket- AMD B550 chipset , 4x dual channel DDR4-4733(O.C)/3200 ( ECC + non-ECC ) with XMP support upto 128Gb , 4x SATA6G + dual ( Gen4x4 + Gen3x4 ) M.2/NGFF with thermal guards ( PCIe or SATA ) with raid 0/1//0+1/5/10 , on-board display with HDMi+DP dual output ( depends on CPU ) + Realtek ALC1200 7.1 audio with optical s/pdif out + realtek RTL8125 2.5Gb lan ; 1x PCi-Ex1 , 3x PCi-Ex16 ( Gen4@16x + Gen3@2x + Gen3@1x) , no SLi/CrossfireX , with 2x USB3.2 type-A ( Gen2 10GBPs ) + 4x USB3 type-A ( Gen1 5GBPs ) + 2x USB2.0 , bundled norton internet security - atx
The Gigabyte B550 Aorus Elite is a full-size ATX AMD AM4 motherboard on the B550 chipset, aimed at mainstream-to-enthusiast Ryzen builds. It uses a strong 12+2 phase digital VRM under a pre-mounted I/O shield with thermal armor, with RGB Fusion 2.0 multi-zone on-board RGB lighting, addressable LED strip support, on-board Q-Flash buttons for BIOS updates without a CPU installed, a 2x copper PCB design, and SmartFan5 monitoring across 6 temperature sensors and 5 hybrid fan headers. Solid-pin ATX 24+8pin power connectors and PCIe armor with stainless-steel shielding and a double-locking bracket add physical durability for a heavy GPU. Memory support is 4x dual-channel DDR4 up to DDR4-4733 (overclocked)/3200 (native), including ECC and non-ECC, up to 128GB with XMP support. Storage is 4x SATA6G plus dual M.2 (one Gen4x4, one Gen3x4) with thermal guards and RAID 0/1/0+1/5/10 support. On-board display is HDMI+DP dual output (CPU-dependent), backed by Realtek ALC1200 7.1 audio with optical S/PDIF out and a Realtek RTL8125 2.5Gb LAN controller. Expansion is 1x PCIe x1 plus 3x PCIe 16x slots (Gen4@16x + Gen3@2x + Gen3@1x, no SLI/CrossFireX), with 2x USB 3.2 Gen2 (10Gbps), 4x USB3 Gen1 (5Gbps), and 2x USB 2.0 ports, plus bundled Norton Internet Security.
Online price incl. VAT
Availability: Stock Pending
Platform
- Socket: AMD AM4
- Chipset: AMD B550
- Form factor: ATX
Power Delivery
- VRM: 12+2 phase digital, thermal armor I/O shield
- Fan control: SmartFan5, 6 temp sensors + 5 hybrid fan headers
- Lighting: RGB Fusion 2.0, multi-zone + addressable LED strip support
Memory
- Slots: 4x DDR4 dual-channel, up to 128GB
- Speed: Up to DDR4-4733(OC)/3200, ECC + non-ECC, XMP
Storage
- SATA: 4x SATA6G
- M.2: Dual (Gen4x4 + Gen3x4), thermal guards
- RAID: 0/1/0+1/5/10
Connectivity
- Display out: HDMI + DisplayPort dual (CPU-dependent)
- Audio: Realtek ALC1200 7.1 + optical S/PDIF
- LAN: Realtek RTL8125 2.5Gb
- Expansion: 1x PCIe x1 + 3x PCIe x16 (Gen4x16 + Gen3x2 + Gen3x1)
- USB: 2x USB3.2 Gen2 (10Gbps) + 4x USB3 Gen1 (5Gbps) + 2x USB2.0
