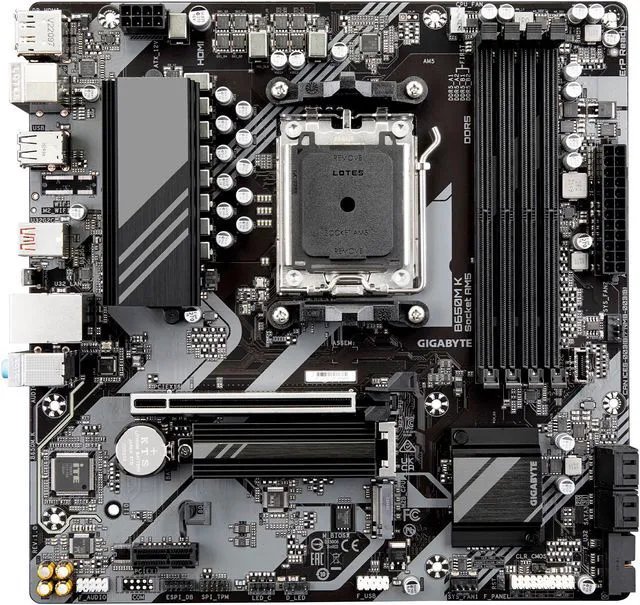

Gigabyte B650M-K : AMD AM5 mb - with 8+2+1 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers , solid pin power connectors ( ATX 8 pin ) , PCIe armor with stainless steel shielding+double locking bracket- AMD B650 chipset , 4x dual channel DDR5-6400(O.C)/5200 upto 128Gb , 4x SATA6G + 2x M.2/NGFF ( Gen4x4 ) with thermal guard with raid 0/1//0+1/5/10 , on-board display with HDMi+DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio ( DTSX Ultra + optical s/pdif out ) + realtek RTL8125 2.5Gb lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 1x USB3 type-C ( Gen2 10GBPs ) + 1x USB3 type-A ( Gen2 10GBPs ) + 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx

Gigabyte B650M-K : AMD AM5 mb - with 8+2+1 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers , solid pin power connectors ( ATX 8 pin ) , PCIe armor with stainless steel shielding+double locking bracket- AMD B650 chipset , 4x dual channel DDR5-6400(O.C)/5200 upto 128Gb , 4x SATA6G + 2x M.2/NGFF ( Gen4x4 ) with thermal guard with raid 0/1//0+1/5/10 , on-board display with HDMi+DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio ( DTSX Ultra + optical s/pdif out ) + realtek RTL8125 2.5Gb lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 1x USB3 type-C ( Gen2 10GBPs ) + 1x USB3 type-A ( Gen2 10GBPs ) + 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx
More Info

The Gigabyte B650M-K is an AMD AM5 micro-ATX motherboard on the B650 chipset, sitting a step up from the B650MH in this range with a stronger 8+2+1 phase digital VRM and a fuller memory/storage/connectivity configuration. It shares the same MOSFET heatsinks, SmartFan6 monitoring (5 sensors, 3 hybrid fan headers), addressable LED strip support, on-board multi-key buttons, 2x copper PCB design, solid-pin ATX 8-pin power, and PCIe armor with stainless-steel shielding. Memory support is 4x dual-channel DDR5 up to 128GB (double the B650MH's 64GB), running up to DDR5-6400 (overclocked)/5200 (native). Storage covers 4x SATA6G plus 2x Gen4x4 M.2 slots with thermal guards and RAID 0/1/0+1/5/10 support. On-board display is HDMI+DP dual output (CPU-dependent), driven by Realtek ALC1220-VB 7.1 audio with DTS:X Ultra and optical S/PDIF out, plus a Realtek RTL8125 2.5Gb LAN controller — faster networking than the B650MH's plain Gigabit LAN. Expansion is 1x PCIe 3.0 x1 plus 1x PCIe 4.0 x16, with 1x USB3 Type-C (Gen2, 10Gbps), 1x USB3 Type-A (Gen2, 10Gbps), 2x USB3 Type-A (Gen1, 5Gbps), and 4x USB 2.0 ports, plus bundled Norton Internet Security.

R2,595.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Platform

  • Socket: AMD AM5
  • Chipset: AMD B650
  • Form factor: Micro-ATX

Power Delivery

  • VRM: 8+2+1 phase digital, MOSFET heatsinks
  • Fan control: SmartFan6, 5 temp sensors + 3 hybrid fan headers

Memory

  • Slots: 4x DDR5 dual-channel, up to 128GB
  • Speed: Up to DDR5-6400(OC)/5200

Storage

  • SATA: 4x SATA6G
  • M.2: 2x Gen4x4, thermal guards
  • RAID: 0/1/0+1/5/10

Connectivity

  • Display out: HDMI + DisplayPort dual (CPU-dependent)
  • Audio: Realtek ALC1220-VB 7.1, DTS:X Ultra + optical S/PDIF
  • LAN: Realtek RTL8125 2.5Gb
  • Expansion: 1x PCIe 3.0 x1 + 1x PCIe 4.0 x16
  • USB: 1x USB3 Type-C (Gen2 10Gbps) + 1x USB3 Type-A (Gen2 10Gbps) + 2x USB3 Type-A (Gen1) + 4x USB2.0
