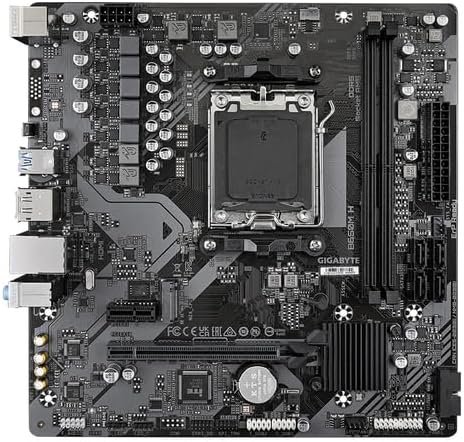

Gigabyte B650MH : AMD AM5 mb - with 5+2+2 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers , solid pin power connectors ( ATX 8 pin ) , PCIe armor with stainless steel shielding+double locking bracket- AMD B650 chipset , 2x dual channel DDR5-6400(O.C)/5200 upto 64Gb , 4x SATA6G + 1x M.2/NGFF ( Gen4x4 ) with raid 0/1//0+1/5/10 , on-board display with HDMi+DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio ( DTSX Ultra + optical s/pdif out ) + realtek Gb lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx

Gigabyte B650MH : AMD AM5 mb - with 5+2+2 phase digital VRM , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , MoSFET heatsinks SmartFan6 with 5x temperature sensors + 3x hybrid fan headers , solid pin power connectors ( ATX 8 pin ) , PCIe armor with stainless steel shielding+double locking bracket- AMD B650 chipset , 2x dual channel DDR5-6400(O.C)/5200 upto 64Gb , 4x SATA6G + 1x M.2/NGFF ( Gen4x4 ) with raid 0/1//0+1/5/10 , on-board display with HDMi+DP dual outputs ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio ( DTSX Ultra + optical s/pdif out ) + realtek Gb lan ; 1x PCi-E3.0(x1) + 1x pci-e 4.0 (x16@16x) , with 2x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , bundled norton internet security - micro-atx
More Info

The Gigabyte B650MH is an AMD AM5 micro-ATX motherboard on the B650 chipset, giving current-generation Ryzen builders a mid-range platform in a compact form factor. Power delivery is a 5+2+2 phase digital VRM with MOSFET heatsinks under Gigabyte's SmartFan6 monitoring (5 temperature sensors, 3 hybrid fan headers), with addressable LED strip support, on-board multi-key buttons, a 2x copper PCB design, solid-pin ATX 8-pin power, and PCIe armor with stainless-steel shielding and a double-locking bracket for GPU support. Memory is 2x dual-channel DDR5 up to 64GB, running up to DDR5-6400 (overclocked)/5200 (native). Storage covers 4x SATA6G plus 1x Gen4x4 M.2 with RAID 0/1/0+1/5/10 support. On-board display is HDMI+DP dual output (CPU-dependent), driven by Realtek ALC1220-VB 7.1 audio with DTS:X Ultra and optical S/PDIF out, plus a Realtek Gigabit LAN controller. Expansion is 1x PCIe 3.0 x1 plus 1x PCIe 4.0 x16, with 2x USB3 Type-A (Gen1, 5Gbps) and 4x USB 2.0 ports, plus bundled Norton Internet Security.

R1,999.00

Online price incl. VAT

Availability: Stock Pending

Platform

  • Socket: AMD AM5
  • Chipset: AMD B650
  • Form factor: Micro-ATX

Power Delivery

  • VRM: 5+2+2 phase digital, MOSFET heatsinks
  • Fan control: SmartFan6, 5 temp sensors + 3 hybrid fan headers

Memory

  • Slots: 2x DDR5 dual-channel, up to 64GB
  • Speed: Up to DDR5-6400(OC)/5200

Storage

  • SATA: 4x SATA6G
  • M.2: 1x Gen4x4
  • RAID: 0/1/0+1/5/10

Connectivity

  • Display out: HDMI + DisplayPort dual (CPU-dependent)
  • Audio: Realtek ALC1220-VB 7.1, DTS:X Ultra + optical S/PDIF
  • LAN: Realtek Gigabit
  • Expansion: 1x PCIe 3.0 x1 + 1x PCIe 4.0 x16
  • USB: 2x USB3 Type-A (Gen1 5Gbps) + 4x USB2.0
