Gigabyte GV-N4080AORUSX WB-16GD - rtx4080 Aorus Xtreme Waterforce WaterBlock ( custom watercooling required ) - 235x169x29mm , 2 slots required , 4nm , Pci-E 4.0 16x , 16Gb 256bit DDR6X (716.8Gb/sec memory transfer ) , RoPs : 112 , 9728 cuda cores , Tensor / RT cores : 304/76 with 9.5mb L1 + 64mb L2 cache , 281 GPexels/Sec , 762 GTexels/Sec , 48740 GFLoPS , 304x TMUs , core clock : 2505/2565mhz ; memory : 22400mhz , 3x DP+ 3x HDMi - require 3x8pin or 1x16pin power connector

Gigabyte GV-N4080AORUSX WB-16GD - rtx4080 Aorus Xtreme Waterforce WaterBlock ( custom watercooling required ) - 235x169x29mm , 2 slots required , 4nm , Pci-E 4.0 16x , 16Gb 256bit DDR6X (716.8Gb/sec memory transfer ) , RoPs : 112 , 9728 cuda cores , Tensor / RT cores : 304/76 with 9.5mb L1 + 64mb L2 cache , 281 GPexels/Sec , 762 GTexels/Sec , 48740 GFLoPS , 304x TMUs , core clock : 2505/2565mhz ; memory : 22400mhz , 3x DP+ 3x HDMi - require 3x8pin or 1x16pin power connector
More Info

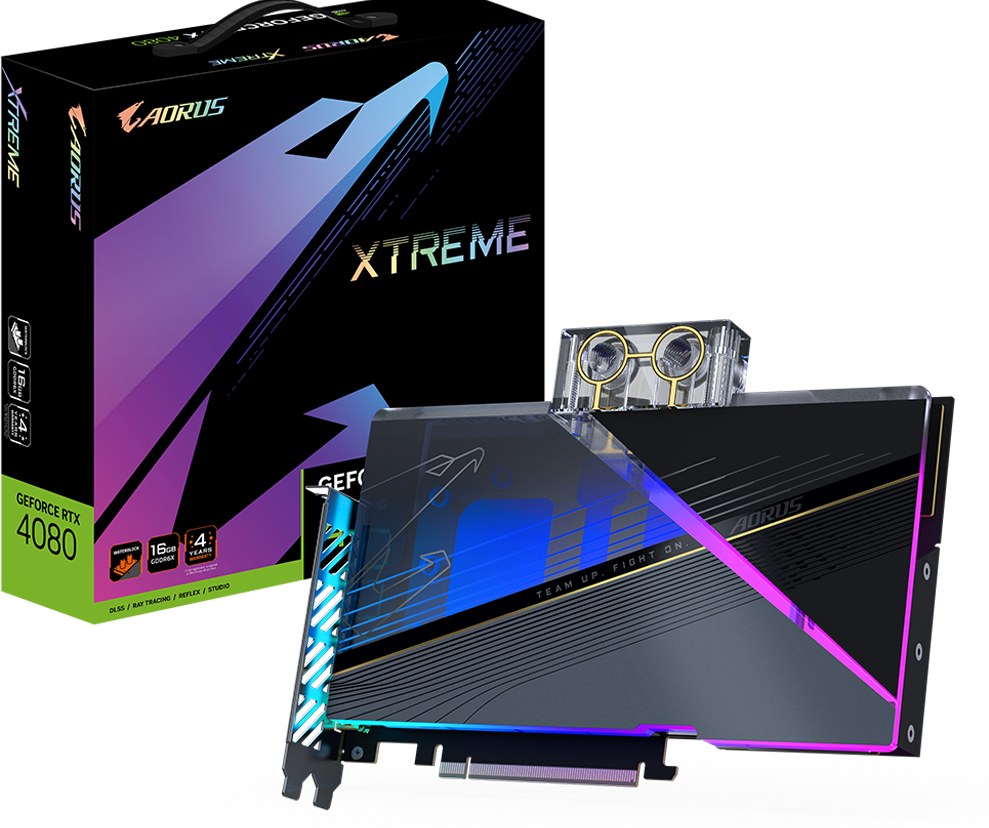

The GIGABYTE AORUS GeForce RTX 4080 16GB XTREME WATERFORCE WB is the bare waterblock edition of GIGABYTE's flagship RTX 4080 (Ada Lovelace, 9,728 CUDA cores, 16GB GDDR6X) — built for enthusiasts running a custom watercooling loop rather than an all-in-one solution. It has no onboard fans at all; a full-cover copper waterblock with G1/4" fittings sits directly on the GPU, requiring the buyer's own radiator, pump and non-corrosive coolant. This makes it exceptionally compact at just 29mm thick across 2 slots, ideal for tight, high-density custom-loop builds. Display output covers 3x DisplayPort 1.4a and 1x HDMI 2.1a up to 8K, running on PCIe 4.0 with a single 16-pin connector (triple 8-pin adapter included), backed by a 4-year warranty with online registration.

R29,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: NVIDIA Ada Lovelace
  • CUDA Cores: 9,728
  • Boost Clock: 2,565 MHz
  • Reference Clock: 2,505 MHz

Memory

  • Memory Size: 16GB GDDR6X
  • Memory Speed: 22.4 Gbps
  • Bus Width: 256-bit

Display Outputs

  • Ports: 3x DisplayPort 1.4a, 1x HDMI 2.1a
  • Max Resolution: 7680 x 4320 (8K)

Cooling

  • Cooling System: WATERFORCE full-cover waterblock, G1/4" fittings — bare block, no fans, requires a custom watercooling loop (non-corrosive coolant)
  • Fans: None (custom loop required)

Physical

  • Dimensions: 235 x 169 x 29 mm
  • Slot Width: 2-slot

Power Requirements

  • Power Connector: 1x 16-pin (16-pin to 3x 8-pin adapter included)
  • Recommended PSU: 850W
  • Interface: PCIe 4.0

Warranty

  • Warranty Period: 4 years with online registration (3 years standard)
