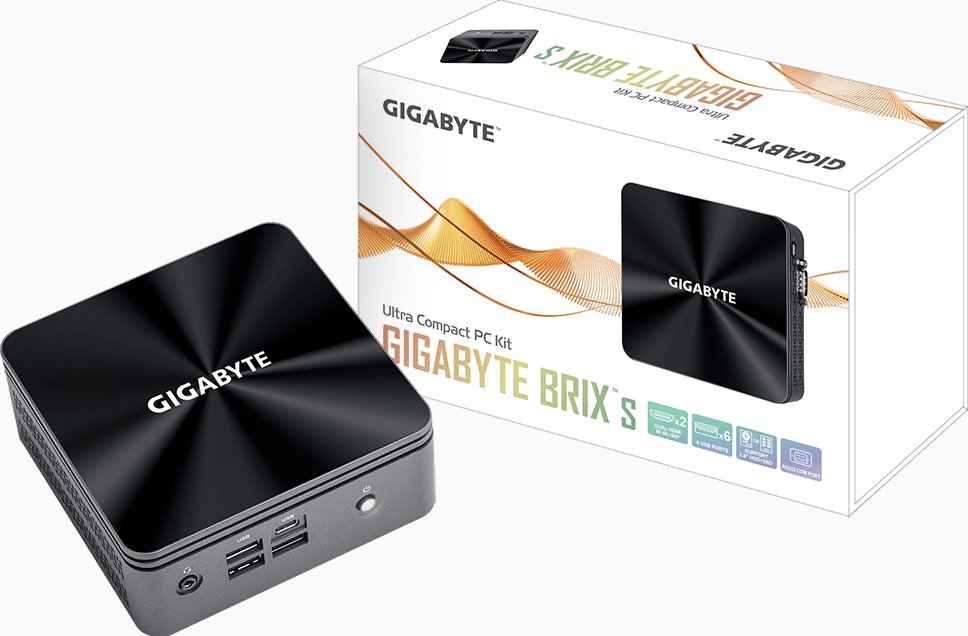

Gigabyte i7 gb-bri7h-10510 High ( with type2280 M.2 + 2.5" HDD mounting support ) - brix ultra compact PC - 120x120x47mm mini size PC - 4K HDMi , black- intel comet lake Core i7-10510U - Quad core+ hyper-threading ( 8-threads ) , 1.8/4.9Ghz ( with VT-x+ VT-d + no TXT , 14nm , 4GT/sec DMi , 38.4GB/sec memory bandwidth ; 8mb L2 cache ) , optional 2x DDR4-2400/2666 so-dimm ( 2 slots upto 64gb ) , 1x SATA6G + M.2 type2280 PCIe Gen3x4 ( PCIe or SATA or Optane mode ) , no card reader , on-board intel HD620 300/1150mhz graphic ( 18x EU ) with 2x HDMi + intel i219V gigabit lan + wireless-AC 3168 433mbps dual-band wifi+BT , 7.1 audio via HDMi + 1x USB3 type-C (Gen2 10Gbps ) + 5x USB3 type-A (Gen2 10Gbps ) + serial port + 3.5mm audio in/out combo jack ; external 19V/65W ac-adapter , with 75x75mm+100x100mm vesa wall mount kit

Gigabyte i7 gb-bri7h-10510 High ( with type2280 M.2 + 2.5" HDD mounting support ) - brix ultra compact PC - 120x120x47mm mini size PC - 4K HDMi , black- intel comet lake Core i7-10510U - Quad core+ hyper-threading ( 8-threads ) , 1.8/4.9Ghz ( with VT-x+ VT-d + no TXT , 14nm , 4GT/sec DMi , 38.4GB/sec memory bandwidth ; 8mb L2 cache ) , optional 2x DDR4-2400/2666 so-dimm ( 2 slots upto 64gb ) , 1x SATA6G + M.2 type2280 PCIe Gen3x4 ( PCIe or SATA or Optane mode ) , no card reader , on-board intel HD620 300/1150mhz graphic ( 18x EU ) with 2x HDMi + intel i219V gigabit lan + wireless-AC 3168 433mbps dual-band wifi+BT , 7.1 audio via HDMi + 1x USB3 type-C (Gen2 10Gbps ) + 5x USB3 type-A (Gen2 10Gbps ) + serial port + 3.5mm audio in/out combo jack ; external 19V/65W ac-adapter , with 75x75mm+100x100mm vesa wall mount kit
More Info

The Gigabyte Brix (GB-BRi7H-10510) is an ultra-compact barebone-style mini PC measuring just 120x120x47mm, built around an Intel Core i7-10510U (4 cores, 8 threads with Hyper-Threading, 1.8GHz base up to 4.9GHz turbo, 8MB cache) for 4K HDMI output in a genuinely tiny footprint. It supports up to two DDR4-2400/2666 SO-DIMM modules (up to 64GB total, sold separately) and a single M.2 2280 PCIe Gen3x4 slot alongside a SATA6G connector for either an NVMe SSD or a traditional SATA drive. Graphics run on the CPU's own integrated HD620 engine (18 execution units) with two HDMI outputs for dual 4K-capable displays. Networking covers a Gigabit Ethernet port and dual-band 802.11AC Wi-Fi with Bluetooth via the Wireless-AC 3168 card, with 7.1-channel surround audio delivered over HDMI. The port selection includes a 10Gbps USB-C (Gen2) port and five 10Gbps USB-A (Gen2) ports, plus a legacy serial port and a 3.5mm combo audio jack -- a genuinely well-connected small business or digital-signage PC. It's powered by a 65W external adapter and ships with a VESA wall-mount kit for behind-a-monitor installation, in a black finish.

R9,999.00

Online price incl. VAT

Availability: Stock Pending

Processor

  • CPU: Intel Core i7-10510U
  • Cores / Threads: 4 cores / 8 threads
  • Clock: 1.8GHz base, up to 4.9GHz turbo
  • Cache: 8MB

Memory & Storage

  • RAM: Up to 2x DDR4-2400/2666 SO-DIMM (max 64GB, not included)
  • Storage: 1x SATA6G + 1x M.2 2280 PCIe Gen3x4 (drive not included)

Graphics

  • GPU: Intel HD620 integrated (18 EU), 2x HDMI

Form Factor

  • Chassis: Ultra-compact mini PC, 120x120x47mm, Black

Connectivity

  • LAN: Gigabit Ethernet
  • Wi-Fi / Bluetooth: Wireless-AC 3168, dual-band 802.11AC + Bluetooth
  • Ports: 1x USB-C Gen2 (10Gbps), 5x USB-A Gen2 (10Gbps), serial port, 3.5mm combo jack

Included Accessories

  • Mount: VESA wall-mount kit

Power

  • Adapter: 19V/65W external AC adapter
