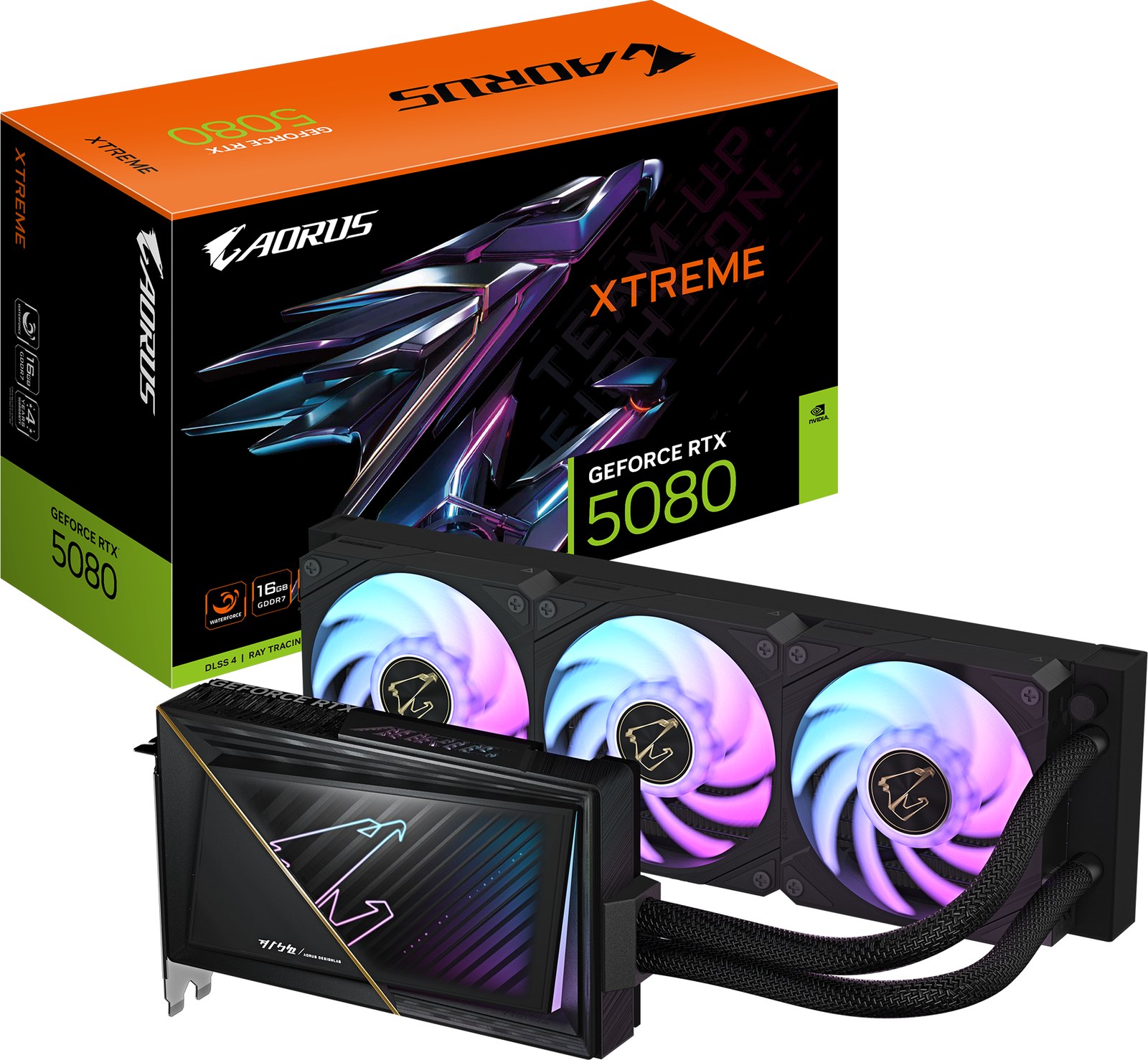

Gigabyte RTX 5080 Aorus Xtreme WaterForce 16GB GDDR7 Graphics Card

Gigabyte RTX 5080 Aorus Xtreme WaterForce 16GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5080 AORUS XTREME WATERFORCE 16G is the liquid-cooled flagship variant of Gigabyte's RTX 5080 lineup, pairing the same Blackwell GPU (10,752 CUDA cores, 16GB GDDR7 on a 256-bit bus at 30Gbps) and the identical factory-overclocked 2805MHz boost clock as the air-cooled AORUS MASTER, but replacing its large open-air cooler with a factory-fitted all-in-one liquid cooling loop: a 360mm aluminum radiator with three 120mm ARGB fans, connected to the GPU block by 460mm tubing. Because the cooling is offloaded to a separately-mounted radiator, the GPU block itself is far more compact than the air-cooled card — just 220mm long, 130mm wide and 40mm tall.

More Info

That compact block-plus-radiator layout is meant for builders who want the lowest possible GPU temperatures and near-silent operation under load, at the cost of needing a case with a 360mm radiator mounting point (typically the front or top panel) rather than simply dropping the card in like an air-cooled model. It shares the same connectivity as the Master variant — PCIe 5.0, a single 16-pin 12V-2x6 power connector (with a bundled 12V-2x6-to-3x-PCIe-8pin adapter), an 850W recommended PSU, and three DisplayPort 2.1b plus one HDMI 2.1b output supporting up to 7680x4320 across up to 4 displays — while trading the Master's triple-fan open-air shroud for a dedicated liquid loop aimed at maximum sustained clocks and minimal thermal throttling.

R38,999.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

GPU

  • Chip: NVIDIA GeForce RTX 5080 (Blackwell)
  • CUDA Cores: 10,752
  • Memory: 16GB GDDR7
  • Memory Bus: 256-bit
  • Memory Speed: 30 Gbps

Clock Speeds

  • Boost Clock: 2805 MHz
  • Reference Boost Clock: 2617 MHz

Cooling

  • Design: All-in-one factory liquid cooling
  • Radiator: 360mm aluminum
  • Fans: 3x 120mm ARGB
  • Tube Length: 460mm

Connectivity & Power

  • Interface: PCI Express 5.0
  • Power Connector: 1x 16-pin (12V-2x6)
  • Included Adapter: 12V-2x6 to 3x PCIe 8-pin
  • Recommended PSU: 850W
  • Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
  • Max Resolution: 7680 x 4320

Physical

  • GPU Block Dimensions: 220 x 130 x 40 mm
  • Multi-View Support: Up to 4 displays
