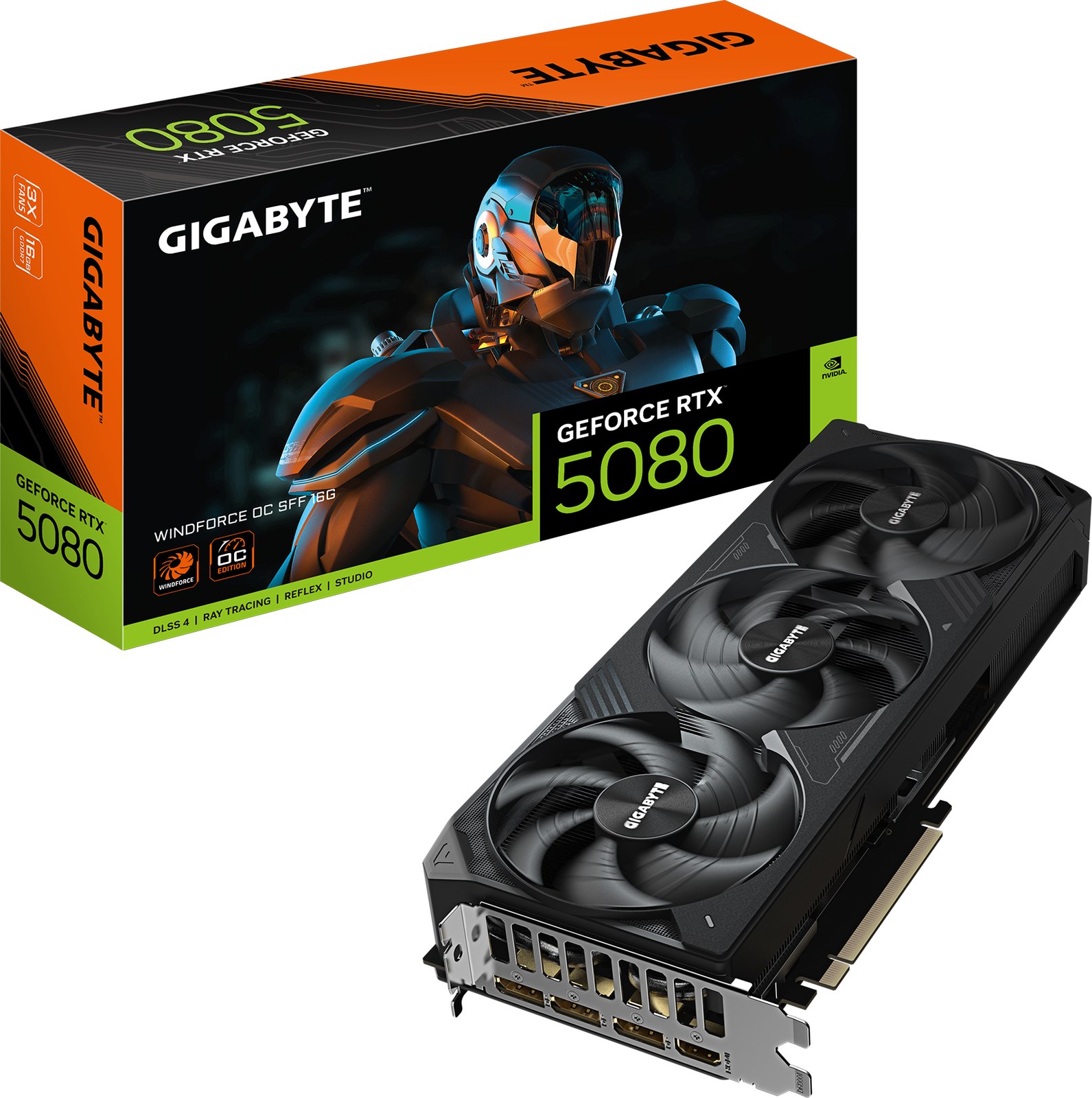

Gigabyte RTX 5080 Windforce OC 16GB GDDR7 Graphics Card
The GIGABYTE GeForce RTX 5080 WINDFORCE OC SFF 16G brings the RTX 5080's Blackwell GPU (10,752 CUDA cores, 16GB GDDR7) into a more compact WINDFORCE-cooled package built for small-form-factor and space-conscious builds without dropping to a lower-tier card. It uses GIGABYTE's WINDFORCE cooling with Hawk-fan alternate spinning, a large vapor chamber, composite copper heat pipes and server-grade thermal gel, plus dual BIOS (Performance/Silent) switching and NVIDIA SFF-ready certification. Factory boost clock is 2,670MHz. Display output covers 3x DisplayPort 2.1a and 1x HDMI 2.1b up to 8K, running on PCIe 5.0 with a single 16-pin power connector (adapter included) — a strong choice for gamers wanting 5080-class performance in a smaller chassis.
Online price incl. VAT
Availability: Stock Pending
Graphics Processor
- Architecture: NVIDIA Blackwell
- CUDA Cores: 10,752
- Boost Clock: 2,670 MHz
- Reference Clock: 2,617 MHz
Memory
- Memory Size: 16GB GDDR7
- Memory Speed: 30 Gbps
- Bus Width: 256-bit
- Memory Bandwidth: 960 GB/s
Display Outputs
- Ports: 3x DisplayPort 2.1a, 1x HDMI 2.1b (max 4 simultaneous displays)
- Max Resolution: 7680 x 4320 (8K)
Cooling
- Cooling System: WINDFORCE cooling with Hawk fans, vapor chamber and server-grade thermal gel; NVIDIA SFF-ready
- Fans: 3
Physical
- Dimensions: 304 x 126 x 50 mm
Power Requirements
- Power Connector: 1x 16-pin (12V-2x6-to-3x-8-pin adapter included)
- Recommended PSU: 850W
- Interface: PCIe 5.0
Warranty
- Warranty Period: 4 years with online registration within 30 days (3 years standard)
