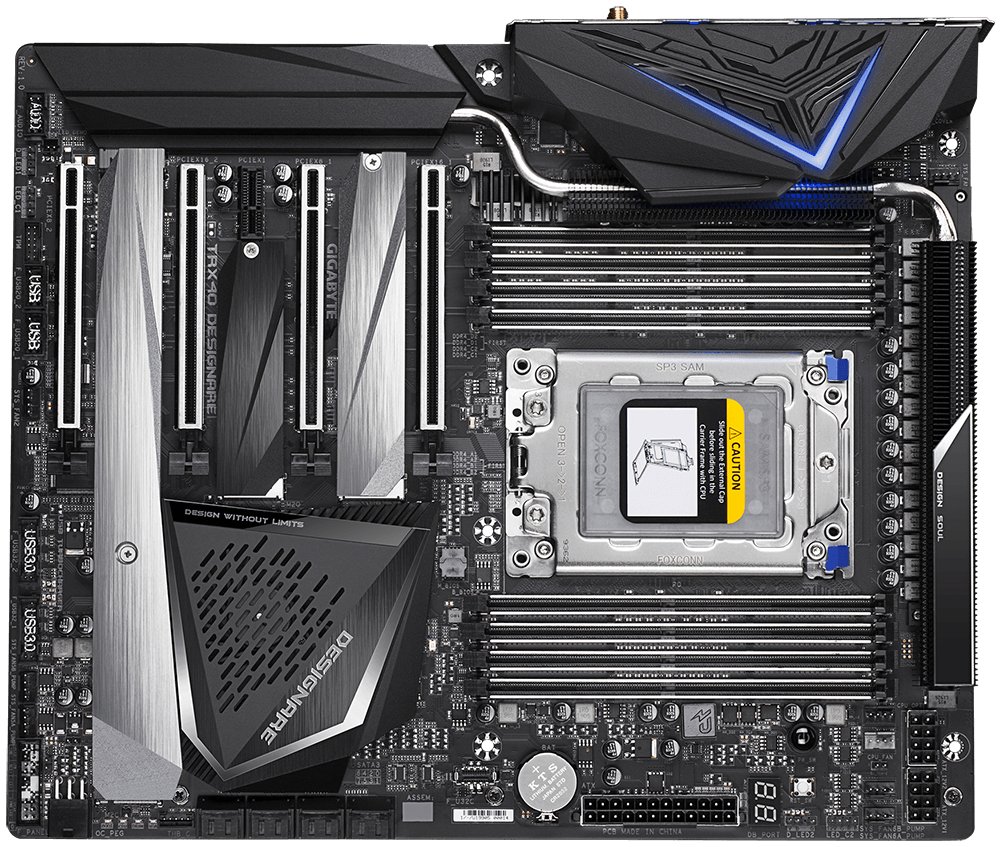

Gigabyte TRX40 Aorus Designare + Wifi : AMD sTRX4 ( Threaderipper 3 series only ) mb - with 16+3 phase digital VRM , pre-mounted I/O shield with thermal armor + RGB Fusion 2.0 with on-board RGB display ( multi zones ) , Addressable LED Strip Support , on-board buttons ( power + reset + clear CMOS+ Q-Flash ) , 2x copper PCBs design , MoSFET heatsinks with 4x DTH fins-array copper heatpipe , SmartFan5 with 9x temperature sensors + 8x hybrid fan headers , solid pin power connectors ( ATX 24+8+8pin ) , memory armor with stainless steel shielding , PCIe armor with stainless steel shielding+double locking bracket , with bundled Aorus Gen4 Aic adapter + 40Gb/s GC-Titan Ridge thunderbolt add-In Card- 8x Quad channel DDR4-4400(O.C)/3200 upto 256Gb ( ECC or non-ECC ) , 8x SATA6G + 4x Gen4x4 M.2/NGFF with thermal guards ( PCIe or SATA mode ) , with NVME raid 0/1//0+1/5/10 , on-board Realtek ALC4050H + ALC1220-VB + ESS ES9118 sabre DAC 7.1 HD audio with DTS-X ultra ( with 120 dB SNR playback + headphone AMP , with WiMA+Nichicon audio capacitors + optical s/pdif out ) , dual intel 210AT gigabit lan , intel WiFi6 AX200 802.11AX dual band 2.4Gbps WiFi + bluetooth , with cFosSpeed Internet Accelerator ; 1x pci-e (1x) , 4x pci-e 4.0 (16x+16x+8x+8x upto 88 lanes ) for Quad-GPU SLi/CrossfireX , , 1x USB3 type-C ( Gen2 ) + 5x USB3 type-A ( Gen2 ) + 2x USB2 - XL-atx ( 33x28cm )

Gigabyte TRX40 Aorus Designare + Wifi : AMD sTRX4 ( Threaderipper 3 series only ) mb - with 16+3 phase digital VRM , pre-mounted I/O shield with thermal armor + RGB Fusion 2.0 with on-board RGB display ( multi zones ) , Addressable LED Strip Support , on-board buttons ( power + reset + clear CMOS+ Q-Flash ) , 2x copper PCBs design , MoSFET heatsinks with 4x DTH fins-array copper heatpipe , SmartFan5 with 9x temperature sensors + 8x hybrid fan headers , solid pin power connectors ( ATX 24+8+8pin ) , memory armor with stainless steel shielding , PCIe armor with stainless steel shielding+double locking bracket , with bundled Aorus Gen4 Aic adapter + 40Gb/s GC-Titan Ridge thunderbolt add-In Card- 8x Quad channel DDR4-4400(O.C)/3200 upto 256Gb ( ECC or non-ECC ) , 8x SATA6G + 4x Gen4x4 M.2/NGFF with thermal guards ( PCIe or SATA mode ) , with NVME raid 0/1//0+1/5/10 , on-board Realtek ALC4050H + ALC1220-VB + ESS ES9118 sabre DAC 7.1 HD audio with DTS-X ultra ( with 120 dB SNR playback + headphone AMP , with WiMA+Nichicon audio capacitors + optical s/pdif out ) , dual intel 210AT gigabit lan , intel WiFi6 AX200 802.11AX dual band 2.4Gbps WiFi + bluetooth , with cFosSpeed Internet Accelerator ; 1x pci-e (1x) , 4x pci-e 4.0 (16x+16x+8x+8x upto 88 lanes ) for Quad-GPU SLi/CrossfireX , , 1x USB3 type-C ( Gen2 ) + 5x USB3 type-A ( Gen2 ) + 2x USB2 - XL-atx ( 33x28cm )
More Info

The Gigabyte TRX40 Aorus Designare + WiFi is a flagship XL-ATX (330x280mm) motherboard for AMD's sTRX4 socket, exclusively supporting 3rd Generation Ryzen Threadripper CPUs — this is a genuine high-end-desktop/workstation board, not a mainstream platform. Power delivery is a substantial 16+3 phase digital VRM under a pre-mounted thermal-armor I/O shield with RGB Fusion 2.0 multi-zone lighting, addressable LED strip support, on-board power/reset/clear-CMOS/Q-Flash buttons, a 2x copper PCB design, and 4x DTH fin-array copper heatpipe MOSFET heatsinks, monitored by SmartFan5 across 9 temperature sensors and 8 hybrid fan headers. Solid-pin ATX 24+8+8pin power, stainless-steel memory armor, and PCIe armor with a double-locking bracket add physical durability. A bundled Aorus Gen4 AIC adapter and a 40Gb/s GC-Titan Ridge Thunderbolt add-in card are included. Memory is genuinely massive: 8x quad-channel DDR4 up to DDR4-4400 (overclocked)/3200 (native), up to 256GB, ECC or non-ECC. Storage is 8x SATA6G plus 4x Gen4x4 M.2 with NVMe RAID 0/1/0+1/5/10. Audio is a premium Realtek ALC4050H + ALC1220-VB + ESS ES9118 Sabre DAC 7.1 setup with DTS:X Ultra, 120dB SNR playback, a headphone amp, WIMA/Nichicon audio capacitors, and optical S/PDIF out. Networking is dual Intel i210AT Gigabit LAN plus Intel WiFi 6 AX200 (802.11ax dual-band, 2.4Gbps) with Bluetooth and cFosSpeed traffic prioritization. Expansion is 1x PCIe x1 plus 4x PCIe 4.0 x16 (16x+16x+8x+8x, up to 88 lanes total) for quad-GPU SLI/CrossFireX configurations, with 1x USB3 Type-C (Gen2), 5x USB3 Type-A (Gen2), and 2x USB 2.0 ports.

R11,999.00

Online price incl. VAT

Availability: Stock Pending

Platform

  • Socket: AMD sTRX4 (3rd Gen Threadripper only)
  • Chipset: AMD TRX40
  • Form factor: XL-ATX (33x28cm)

Power Delivery

  • VRM: 16+3 phase digital, thermal-armor I/O shield
  • Fan control: SmartFan5, 9 temp sensors + 8 hybrid fan headers
  • Lighting: RGB Fusion 2.0, multi-zone + addressable LED strip support

Memory

  • Slots: 8x DDR4 quad-channel, up to 256GB
  • Speed: Up to DDR4-4400(OC)/3200, ECC or non-ECC

Storage

  • SATA: 8x SATA6G
  • M.2: 4x Gen4x4, NVMe RAID capable
  • RAID: 0/1/0+1/5/10

Connectivity

  • Audio: Realtek ALC4050H + ALC1220-VB + ESS ES9118 Sabre DAC 7.1, DTS:X Ultra
  • LAN: Dual Intel i210AT Gigabit
  • Wireless: Intel WiFi 6 AX200 + Bluetooth
  • Included: Aorus Gen4 AIC adapter + 40Gb/s Thunderbolt add-in card
  • Expansion: 1x PCIe x1 + 4x PCIe 4.0 x16 (up to 88 lanes), quad-GPU SLI/CrossFireX
  • USB: 1x USB3 Type-C (Gen2) + 5x USB3 Type-A (Gen2) + 2x USB2.0
