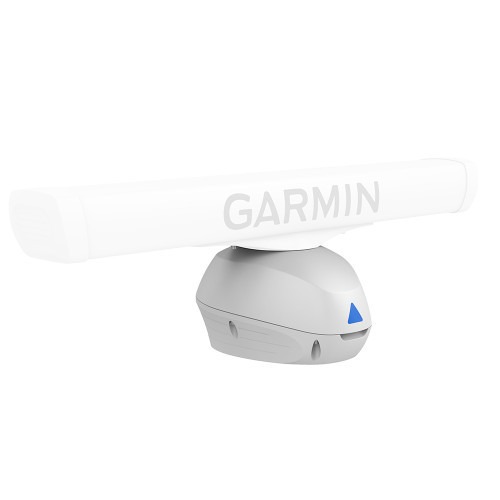

Garmin GMR Fantom 5x, Top Assy, Pedestal

Garmin GMR Fantom 5x, Top Assy, Pedestal

This is a Garmin GMR Fantom 5x pedestal top assembly - the motor and transmitter housing for Garmin's entry-level 50W solid-state open-array radar, sold on its own without the antenna array attached. As with the 12x and 25x pedestal listings elsewhere in the Fantom range, this lets a service technician or installer replace just the drive unit, or pair a fresh pedestal with either the 4-foot (Fantom 54) or 6-foot (Fantom 56) open-array antenna.

More Info

The 5x tier is Garmin's lowest-power Fantom open array, rated at 50W with a detection range of roughly 20 feet to 72 nautical miles in its complete boxed form, and carries the same core solid-state Doppler technology as the rest of the Fantom line: MotionScope for colour-highlighting moving targets, Pulse Compression for sharper target resolution, and instant-on operation with no magnetron warm-up delay. Buying just the pedestal makes sense either as a warranty/service swap on an existing Fantom 54/56 installation, or where the open-array antenna is being sourced or reused separately from a prior installation. As with the other Fantom pedestal listings, the pedestal is the rotating motor and transmitter housing - the part doing all the physical work of spinning the array through every rotation - so it's typically the first component to need replacement on an ageing installation, well before the passive antenna array itself wears out.

R145,999.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Radar

  • Product type: Pedestal / top assembly only (no antenna array)
  • Family: GMR Fantom 5x, 50W solid-state open array
  • Technology: MotionScope Doppler, Pulse Compression

General

  • Typical use: Service/warranty replacement or custom pedestal+array build
