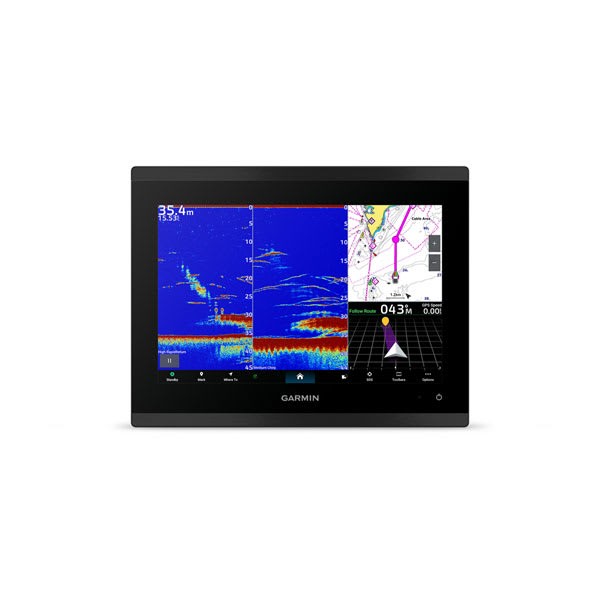

Garmin GPSMAP 9010xsv, Worldwide
The Garmin GPSMAP 9010xsv is a premium 10-inch chartplotter/sonar combo from Garmin's current-generation 9000 series, sitting above the 8000 series in processing power and running on Garmin's faster BlueNet gigabit marine network rather than the older Garmin Marine Network. The "xsv" suffix marks it as a sonar-equipped model with built-in 1 kW CHIRP sonar (xCHIRP with Garmin's RapidReturn technology for high refresh-rate returns), so this unit can drive fishfinding on its own without a separate black-box sounder module, unlike the plain non-sonar GPSMAP 9010/8412/8612 units also carried in this range. This is the Worldwide basemap version rather than a specific regional US chart pack.
The 10-inch display is a WUXGA IPS touchscreen at 1920x1200, giving a genuinely sharp, wide-gamut picture across an 8.5 x 5.4-inch visible area, and Garmin specifies processing power up to seven times faster than the previous generation for quicker map redraws and smoother multi-window layouts. RapidReturn xCHIRP sonar is built to deliver detailed underwater imaging with strong target separation straight out of the box, and can optionally be paired with Garmin's MSC 10 satellite compass for heave compensation so wave motion doesn't distort sonar returns. Positioning uses a multi-GNSS receiver (GPS, GLONASS, Galileo, BeiDou) at a fast 10 Hz update rate. The unit measures 10.24 x 7.87 x 3.54 in, weighs 5.55 lb, and carries an IPX7 water-resistance rating for open helm mounting. 5GHz Wi-Fi speeds up ActiveCaptain app chart/software transfers.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Display
- Screen size: 10 in
- Resolution: 1920 x 1200 WUXGA IPS touchscreen
- Visible area: 8.5 x 5.4 in
Sonar/Transducer
- Built-in sonar: 1 kW xCHIRP with RapidReturn technology
- Heave compensation: Optional pairing with Garmin MSC 10 satellite compass
Navigation
- Satellite systems: GPS, GLONASS, Galileo, BeiDou, 10 Hz receiver
- Mapping: Worldwide basemap
Physical/Mounting
- Dimensions: 10.24 x 7.87 x 3.54 in
- Weight: 5.55 lb
- Water resistance: IPX7
Connectivity
- Network: Garmin BlueNet gigabit marine network
- Wireless: 5GHz Wi-Fi, Bluetooth, ANT
