Hikvision DS-2FA1205-C8(EUR) 12V 5A 60W 8-Channel CCTV Power Supply

Hikvision DS-2FA1205-C8(EUR) 12V 5A 60W 8-Channel CCTV Power Supply

Hikvision 12V 5A 60W 8 Channel CCTV Power Supply

More Info

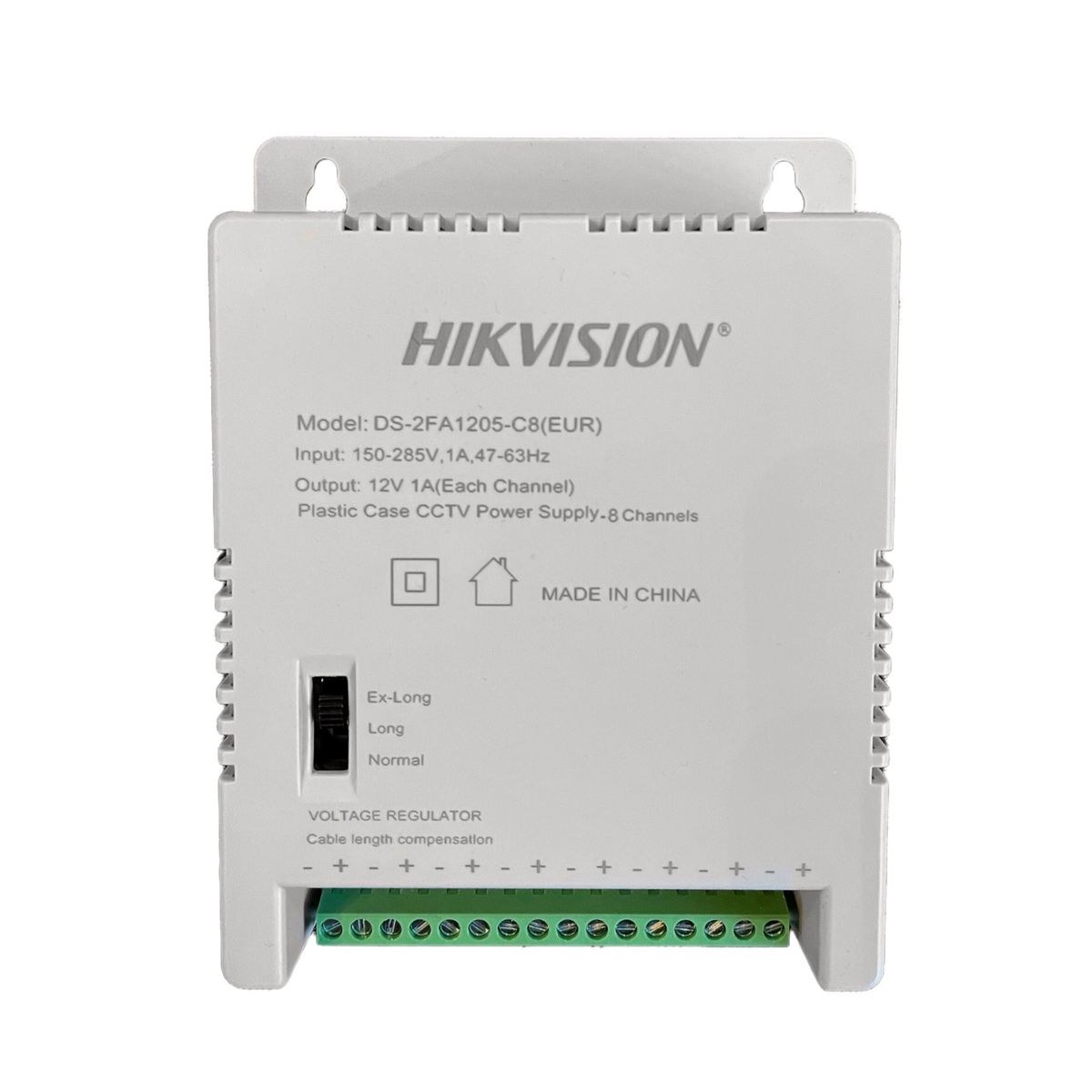

The Hikvision DS-2FA1205-C8(EUR) is a wall-mount switching power supply that runs up to eight CCTV cameras from one mains point. It delivers 12V DC at up to 1A per channel and 5A (60W) in total through a screw-terminal strip, so each camera gets its own pair of wires rather than sharing a daisy-chained supply. A three-position cable-length compensation switch raises the output to 13.5V or 15V for long cable runs, helping cameras far from the box still get enough voltage. Its wide 150-285VAC input copes well with the voltage swings common on South African grids, and it includes over-current, short-circuit and over-voltage protection plus a green power LED. The white plastic case has keyhole slots for wall mounting next to the DVR, measures 144 x 109.5 x 33 mm, and connects to mains via a C8 (figure-8) inlet. Ripple is rated at 150mV, and it runs from 0 °C to 40 °C.

R251.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Input: 150-285 VAC, 47-63 Hz
  • Output: 12 VDC, 1 A per channel; 5 A / 60 W total
  • Channels: 8
  • Cable length compensation: Normal 12V / Long 13.5V / Ex-Long 15V
  • Ripple & noise: 0.15 Vp-p (150 mV)
  • Protection: Over-current, short-circuit, over-voltage

Connectors

  • AC input: C8
  • DC output: Grid screw terminals
  • LED: Green

General

  • Colour: White
  • Dimensions: 144 x 109.5 x 33 mm
  • Operating conditions: 0-40 °C, 10-95% RH
