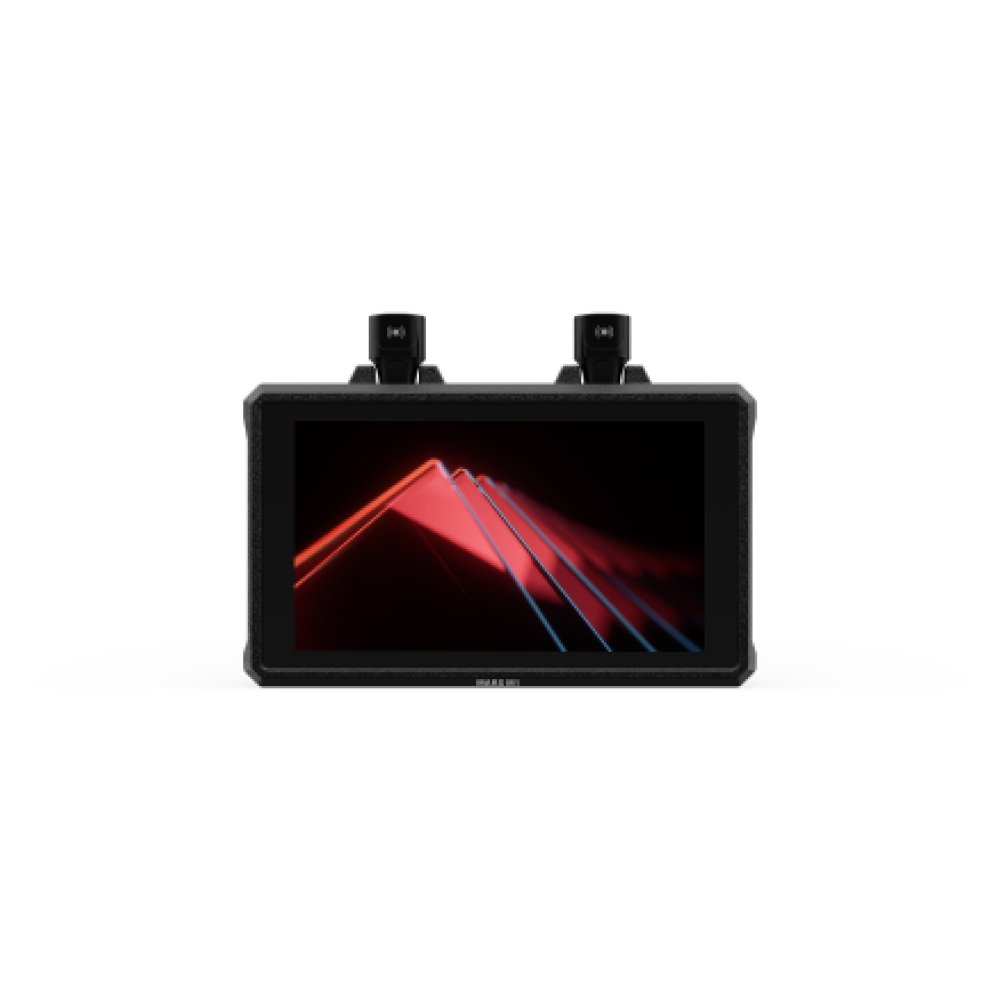

Hollyland Mars M1 5.5" Wireless Transceiver Monitor (Enhanced)

Hollyland Mars M1 5.5" Wireless Transceiver Monitor (Enhanced)
More Info

The Hollyland Mars M1 Enhanced is a 5.5-inch all-in-one wireless camera monitor that can work as a video transmitter, a receiver or a plain on-camera monitor, letting a small crew build a wireless video link from two units instead of a separate transmitter, receiver and monitor. In transmitter mode it accepts HDMI 1.4b and 3G-SDI inputs (with HDMI loop-out) at up to 4K30 on HDMI or 1080p60 on SDI, sending H.264 video at 12 Mbps in the 5 GHz band with about 0.08 s latency and up to 150 m (450 ft) line-of-sight range. In receiver mode it outputs HDMI up to 1080p60. The 1920 x 1080 touchscreen is rated at 1,000 nits with 1000:1 contrast, and the unit offers a 3.5 mm headphone jack, USB-C for updates, DC in/out and an NP-F battery plate (7-16 V DC in). It measures 152 x 96 x 40 mm and weighs about 400 g without antennas. The single-monitor pack includes the monitor, two capsule antennas, a screen protector, OTG adapter, D-Tap to DC cable and manual. Check that 5 GHz bands are permitted locally.

R12,513.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Display

  • Screen: 5.5" touchscreen, 1920 x 1080, 403 PPI
  • Brightness: 1,000 nits
  • Contrast: 1000:1

Wireless

  • Band: 5.1 - 5.8 GHz
  • Codec / bit rate: H.264, 12 Mbps
  • Latency: approx. 0.08 s
  • LOS range: up to 150 m (450 ft)

I/O

  • Inputs (TX mode): HDMI 1.4b, 3G-SDI
  • Outputs: HDMI 1.4b loop-out / HDMI out (RX mode)
  • Other: 3.5 mm headphone, USB-C, DC in/out, 2x RP-SMA

Power & physical

  • Power: DC 7-16 V (12 V nominal) or NP-F battery; < 16 W
  • Dimensions: 152 x 96 x 40 mm
  • Weight: approx. 400 g (without antennas)
