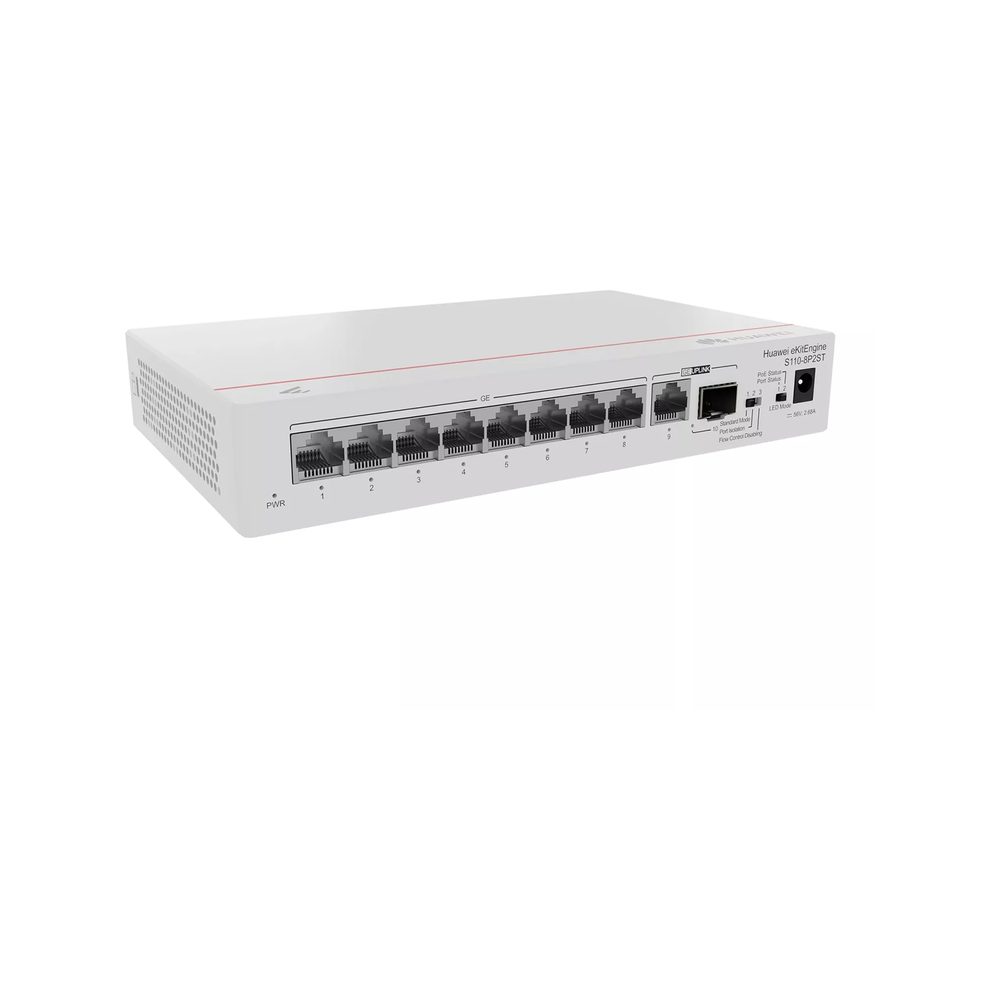

Huawei eKitEngine S110-8P2ST 8-Port Gigabit PoE+ Unmanaged Switch (124W) with 1x GE and 1x SFP Uplink
Huawei S110-8P2ST Switch
The Huawei eKitEngine S110-8P2ST is a compact, fanless unmanaged switch built for small offices, shops and homes needing to power IP cameras, Wi-Fi APs or VoIP phones over one cable. It has eight Gigabit RJ45 ports (1-8) with PoE+ output (IEEE 802.3af/at, up to 30W per port) sharing a 124W total PoE budget, plus two uplinks: a Gigabit RJ45 port (9) and a 1G SFP fibre slot (10) for linking to a router, core switch or a building further away. It is plug-and-play with no configuration, but a front DIP switch selects Standard mode, Port Isolation (handy for keeping cameras or guest APs apart) or Flow Control Disabling, and a separate LED Mode switch toggles the port lights between port status and PoE status. Switching capacity is 20Gbps with a 14.88Mpps forwarding rate and a 4K MAC table. The white desktop chassis measures 35 x 210 x 130mm, weighs about 0.91kg, cools passively and is powered by an external 56V 2.68A adapter - a tidy fit for a small South African office or home CCTV setup.
Online price incl. VAT
Availability: Stock Pending
Ports
- Downlink ports: 8 x 10/100/1000Mbps RJ45 with PoE+ (ports 1-8)
- Uplink ports: 1 x 10/100/1000Mbps RJ45 (port 9) + 1 x 1G SFP (port 10)
- Management: Unmanaged, plug-and-play
PoE
- PoE standard: IEEE 802.3af / 802.3at (PoE+)
- Max power per port: 15.4W (802.3af) / 30W (802.3at)
- Total PoE budget: 124W
Performance
- Switching capacity: 20Gbps
- Forwarding rate: 14.88Mpps
- MAC address table: 4K entries
Switches & Indicators
- Mode DIP switch: Standard Mode / Port Isolation / Flow Control Disabling
- LED Mode switch: Port Status / PoE Status
Power & Physical
- Power input: External adapter, 56V DC 2.68A (per unit label)
- Power consumption: 10W without PoE; 158W max with full PoE load
- Cooling: Fanless, natural heat dissipation
- Surge protection: +/-4kV
- Dimensions (H x W x D): 35 x 210 x 130mm
- Weight: Approx. 0.91kg
Environment
- Operating temperature: 0 to 40 C (0-1,800m altitude)
- Storage temperature: -40 to +70 C
- Operating humidity: 5% - 95%
