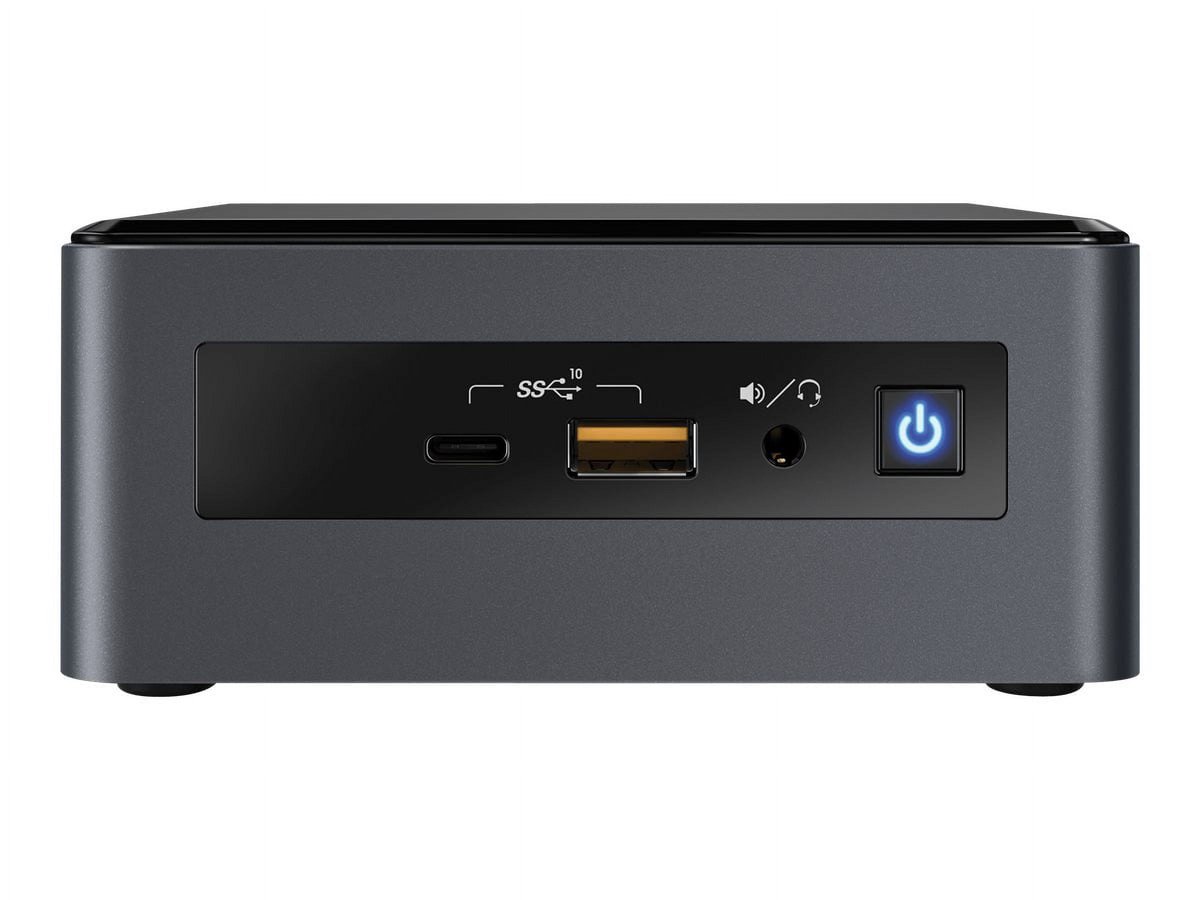

Intel NUC8i7iNHx NUC ( Next Unit of Computing ) - 117x112x51mm mini size PC - onboard 8Gb LPDDR3-1866 Memory , with 9.5mm 2.5" HDD mounting support - 4K Full-HD , black+silver- intel whiskeylake Core i7-8565U - Quad core+ hyper-threading ( 8-threads ) , 1.8Ghz upto 4.6Ghz turbo-boost ( with VT-x+ VT-d + no TXT , 14nm , 37.5GB/sec memory bandwidth ; 8mb L2 cache ) , onboard 8Gb LPDDR3-1866 ( no slot ) , nGff/M.2x4 type2280 socket ( PCIe or SATA or Optane mode ) + 1x 2.5" SATA6G + SDXC card reader , on-board Radeon 540X discrete vga ( 1219mhz , 512 stream processors , 39GT/sec texture fillrate , 1250 GFLOPS , 2Gb 64bit DDR5 , 48Gb/sec memory bandwidth ) with 1x HDMi out + 1x miniDP + usb3.1 type-C/DP/Thunderbolt3 out + i219V gigabit lan + wireless-AC 9560 1730mbps dual-band wifi + BT + 7.1 audio via HDMi/DP + 4x USB3.1 Gen2 10Gbps ( 1x type-C + 3x type-A) + 3.5mm audio in/out + consumer infrared sensor ; external 19V/90W ac-adapter , with vesa wall mount kit

Intel NUC8i7iNHx NUC ( Next Unit of Computing ) - 117x112x51mm mini size PC - onboard 8Gb LPDDR3-1866 Memory , with 9.5mm 2.5" HDD mounting support - 4K Full-HD , black+silver- intel whiskeylake Core i7-8565U - Quad core+ hyper-threading ( 8-threads ) , 1.8Ghz upto 4.6Ghz turbo-boost ( with VT-x+ VT-d + no TXT , 14nm , 37.5GB/sec memory bandwidth ; 8mb L2 cache ) , onboard 8Gb LPDDR3-1866 ( no slot ) , nGff/M.2x4 type2280 socket ( PCIe or SATA or Optane mode ) + 1x 2.5" SATA6G + SDXC card reader , on-board Radeon 540X discrete vga ( 1219mhz , 512 stream processors , 39GT/sec texture fillrate , 1250 GFLOPS , 2Gb 64bit DDR5 , 48Gb/sec memory bandwidth ) with 1x HDMi out + 1x miniDP + usb3.1 type-C/DP/Thunderbolt3 out + i219V gigabit lan + wireless-AC 9560 1730mbps dual-band wifi + BT + 7.1 audio via HDMi/DP + 4x USB3.1 Gen2 10Gbps ( 1x type-C + 3x type-A) + 3.5mm audio in/out + consumer infrared sensor ; external 19V/90W ac-adapter , with vesa wall mount kit
More Info

The Intel NUC8i7iNHx (Next Unit of Computing) is a compact 117x112x51mm mini PC built around an Intel Core i7-8565U (4 cores, 8 threads with Hyper-Threading, 1.8GHz base up to 4.6GHz turbo, 8MB cache). It has 8GB of LPDDR3-1866 memory soldered directly to the board (no upgrade slot), plus an M.2x4 2280 slot (usable as PCIe, SATA, or Optane) and a 2.5" SATA6G bay for storage, along with an SDXC card reader. Unusually for a NUC of this size, it includes a genuine discrete GPU -- an AMD Radeon 540X with 2GB of dedicated GDDR5 memory (512 stream processors, 1219MHz) -- giving it real light gaming and video-editing capability well beyond a typical integrated-graphics mini PC. Video output covers HDMI, mini DisplayPort, and a combined USB-C/DP/Thunderbolt 3 port for 4K displays. Networking covers Gigabit Ethernet and dual-band Wireless-AC 9560 Wi-Fi with Bluetooth, with 7.1-channel audio over HDMI/DP. The port selection includes four 10Gbps USB 3.1 Gen2 ports (one Type-C, three Type-A), a 3.5mm combo jack, and a consumer infrared sensor, powered by a 90W adapter with a VESA mount kit included.

R15,999.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Processor

  • CPU: Intel Core i7-8565U
  • Cores / Threads: 4 cores / 8 threads
  • Clock: 1.8GHz base, up to 4.6GHz turbo
  • Cache: 8MB

Memory & Storage

  • RAM: 8GB LPDDR3-1866, onboard (soldered, no slot)
  • Storage: M.2x4 2280 (PCIe/SATA/Optane) + 2.5" SATA6G bay (drive not included); SDXC card reader

Graphics

  • GPU: AMD Radeon 540X discrete, 2GB GDDR5 (512 stream processors, 1219MHz)

Form Factor

  • Chassis: Mini PC, 117x112x51mm, black + silver

Connectivity

  • LAN: Gigabit Ethernet
  • Wi-Fi / Bluetooth: Wireless-AC 9560, dual-band, 1730Mbps + Bluetooth
  • Video Out: HDMI + mini DisplayPort + USB-C/DP/Thunderbolt 3
  • Ports: 4x USB 3.1 Gen2 10Gbps (1x Type-C, 3x Type-A), 3.5mm combo jack, IR sensor

Included Accessories

  • Mount: VESA wall-mount kit

Power

  • Adapter: 19V/90W external AC adapter
