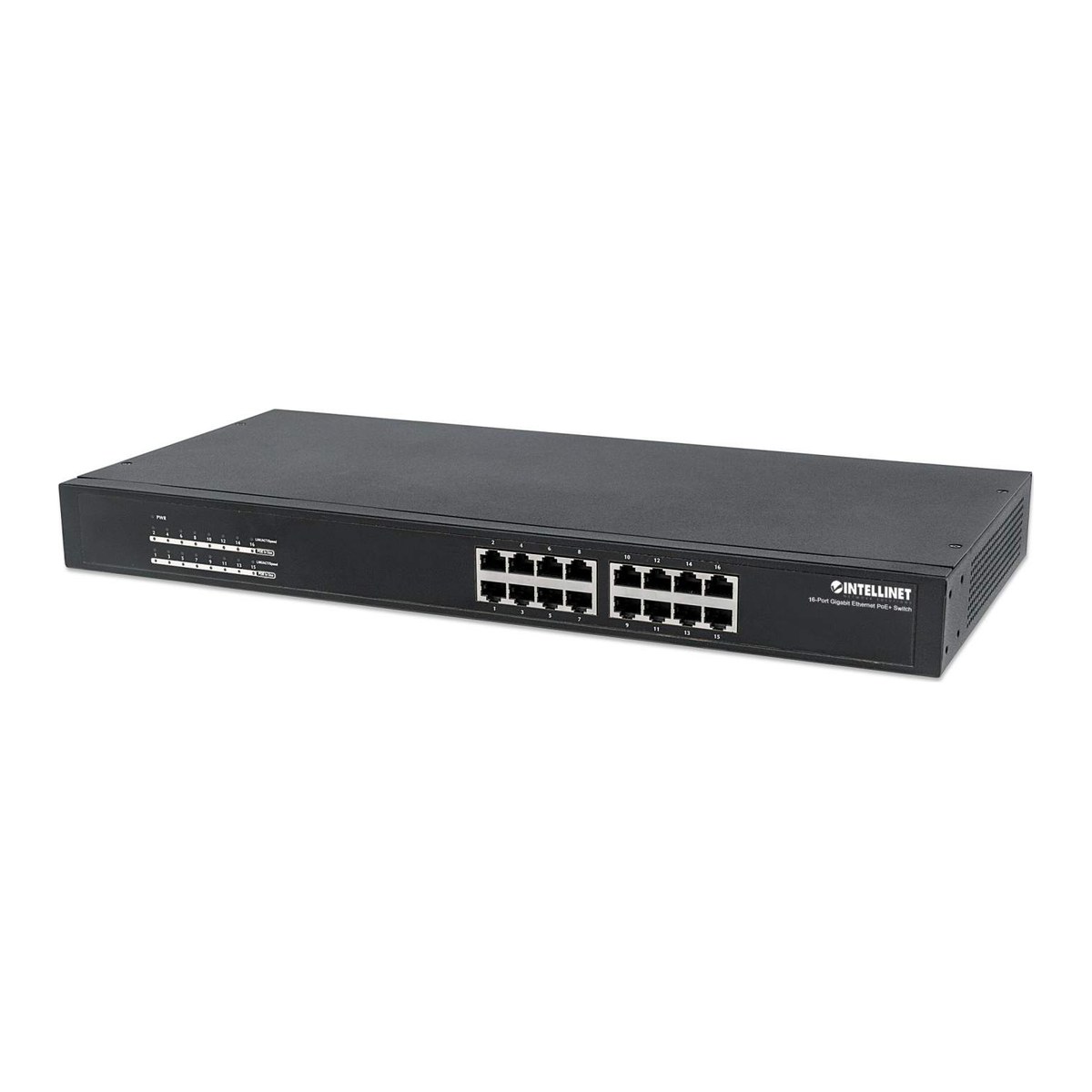

Intellinet 560993 16-Port Gigabit Ethernet PoE+ Rackmount Switch

Intellinet 560993 16-Port Gigabit Ethernet PoE+ Rackmount Switch

Intellinet 16-Port Gigabit Ethernet PoE+ Switch Rackmount

More Info

The Intellinet 560993 is a 16-port Gigabit PoE+ switch for a 19-inch rack. Every port delivers both data and power, which makes it a good fit for camera systems, wireless access point rollouts and VoIP phone systems. Each port supplies up to 30 W to IEEE 802.3at or 802.3af devices, from a total PoE budget of 220 W. PoE and non-PoE devices can be mixed. Detection plus short-circuit, overload and high-voltage protection help safeguard connected equipment. All ports are 10/100/1000 Mbps auto-sensing with Auto-MDIX. The switch has a 32 Gbps backplane, 8K MAC address table, 256 KB buffer and store-and-forward switching with 802.3x flow control. It is unmanaged and plug-and-play. Two cooling fans keep the metal chassis (442 x 208 x 44 mm, 1U, 2.67 kg) ventilated. It runs from 100-240 V AC with a maximum consumption of 260 W. In the box you get the switch, a power cable, a user manual and 19-inch mounting brackets. Intellinet lists it as NDAA-compliant.

R4,283.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Ports

  • Interfaces: 16x 10/100/1000 Mbps RJ45 PoE+, Auto-MDIX

PoE

  • Standard: IEEE 802.3at/af (Endspan)
  • Per Port: Up to 30 W
  • Total Budget: 220 W
  • Protection: Short circuit, overload, high voltage

Performance

  • Backplane: 32 Gbps
  • MAC Table: 8192 entries
  • Buffer: 256 KB
  • Forwarding Rate: 1,488,000 pps at 1000 Mbps

Hardware

  • Power: 100-240 V AC, 260 W max
  • Cooling: 2 fans
  • Dimensions: 442 x 208 x 44 mm
  • Net Weight: 2.67 kg
  • Certifications: FCC Class A, CE, RoHS, UKCA, NDAA
  • Package Contents: Switch, power cable, user manual, 19-inch brackets
