Intellinet Gigabit PoE+ Splitter (560443) - 5/7.5/9/12V Output

Intellinet Gigabit PoE+ Splitter (560443) - 5/7.5/9/12V Output

Intellinet Gigabit PoE Plus Splitter

More Info

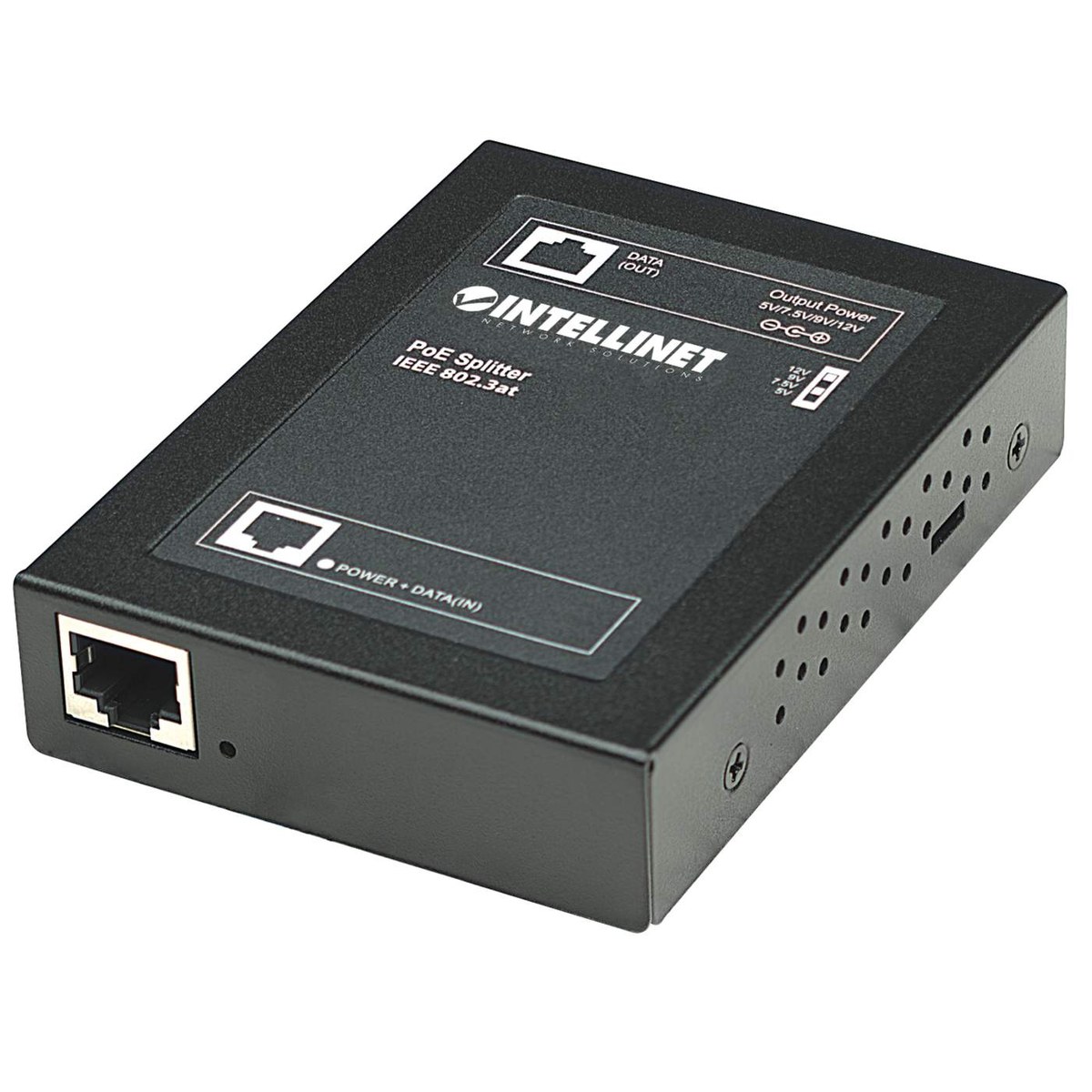

The Intellinet 560443 Gigabit PoE+ Splitter lets you run a non-PoE network device - such as an IP camera, wireless access point or small router - from a PoE switch or injector using just one Ethernet cable. It takes the combined power and data on its PoE input, then splits it into a Gigabit data port and a DC power output for the device, so you can mount equipment on ceilings, poles or outdoors up to 100m from power without installing a plug point. It accepts IEEE 802.3af and 802.3at (PoE+) power, and a selector on the side sets the output to 5V (4A), 7.5V (2.7A), 9V (2.3A) or 12V (1.7A). Both RJ45 ports are 10/100/1000Mbps with auto-MDIX and NWay auto-negotiation, and a LINK LED shows status. The compact metal case measures 102 x 74 x 22mm and weighs 0.24kg. In the box: the splitter, a DC power output cable and user manual.

R815.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Standards

  • PoE input: IEEE 802.3af / 802.3at (PoE+)
  • Ethernet: IEEE 802.3, 802.3u, 802.3ab

Ports

  • Input: 1 x RJ45 10/100/1000Mbps PoE in
  • Output: 1 x RJ45 10/100/1000Mbps data out + 1 x DC power out
  • Features: Auto-MDIX, NWay auto-negotiation

Power

  • Output voltage: 5, 7.5, 9 or 12V DC, switch selectable
  • Max output: 5V/4A, 7.5V/2.7A, 9V/2.3A, 12V/1.7A
  • Power consumption: 25.4W max

Physical

  • Housing: Metal
  • Dimensions: 102 x 74 x 22mm
  • Weight: 0.24kg
  • Operating temperature: 0-60°C

General

  • In the box: PoE+ splitter, power output cable, user manual
  • Warranty: 2 years (Esquire)
