Lenovo DCG Lenovo ThinkSystem SR650 V4 2 x 6517P 16C CPU; 2 x 64GB RAM; 2 x 2.5'' 480GB SSD; 4 x 2.5'' 1.92TB SSD; RAID 940-8i 4GB; 2 x 130

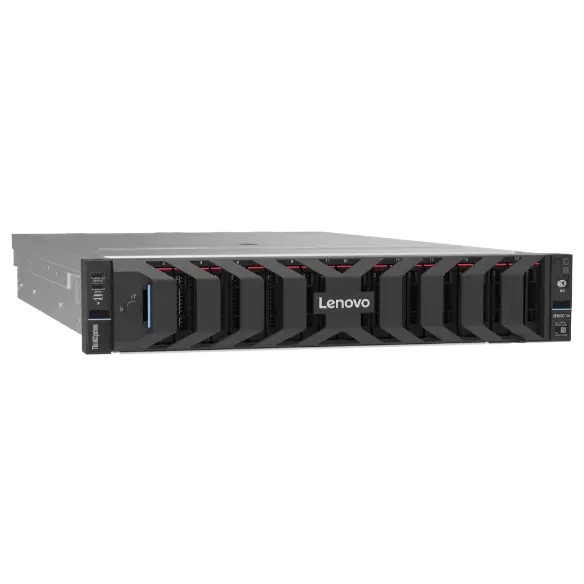

This is a fully-configured Lenovo ThinkSystem SR650 V4 rack server, Lenovo's flagship 2U two-socket general-purpose platform, built here around two Intel Xeon 6517P processors - 16 cores each, so 32 physical cores / typically 64 threads total across the two sockets. The SR650 line is Lenovo's most widely deployed dual-socket rack server family, used for everything from virtualization hosts and database servers to general enterprise application workloads, and the V4 revision moves the platform onto Intel's newest Xeon 6 processor generation with its associated DDR5 memory support and PCIe Gen5 expansion.
This particular build carries 128GB of RAM (2 x 64GB modules) and a mixed storage layout aimed at separating boot/OS from bulk data: 2 x 480GB 2.5-inch SSDs for the operating system and application binaries, plus 4 x 1.92TB 2.5-inch SSDs for data storage, all managed through a Lenovo RAID 940-8i controller with 4GB of onboard cache - a hardware RAID card capable of RAID 0/1/5/6/10 and similar levels for both performance striping and drive-failure redundancy, rather than relying on software RAID. Power is supplied by dual 1300W (the truncated "2 x 130" in the source listing) redundant power supplies, so the server keeps running on one PSU if the other fails or loses mains power, standard practice for production server deployments. This is exactly the kind of configuration used as a virtualization host, database server, or general enterprise application server in a business data centre or server room.
Online price incl. VAT
Availability: Stock Pending
Processor
- CPU: 2 x Intel Xeon 6517P
- Cores per CPU: 16C
- Sockets used: 2 (dual-socket)
Memory
- Installed RAM: 128GB (2 x 64GB)
Storage
- Boot/OS drives: 2 x 2.5" 480GB SSD
- Data drives: 4 x 2.5" 1.92TB SSD
- RAID controller: RAID 940-8i, 4GB cache
General
- Platform: Lenovo ThinkSystem SR650 V4
- Form factor: 2U dual-socket rack server
- Power supplies: 2 x 1300W redundant
