Garmin Light Bar - Curved - 50", LS, (60-0474)

Garmin Light Bar - Curved - 50", LS, (60-0474)

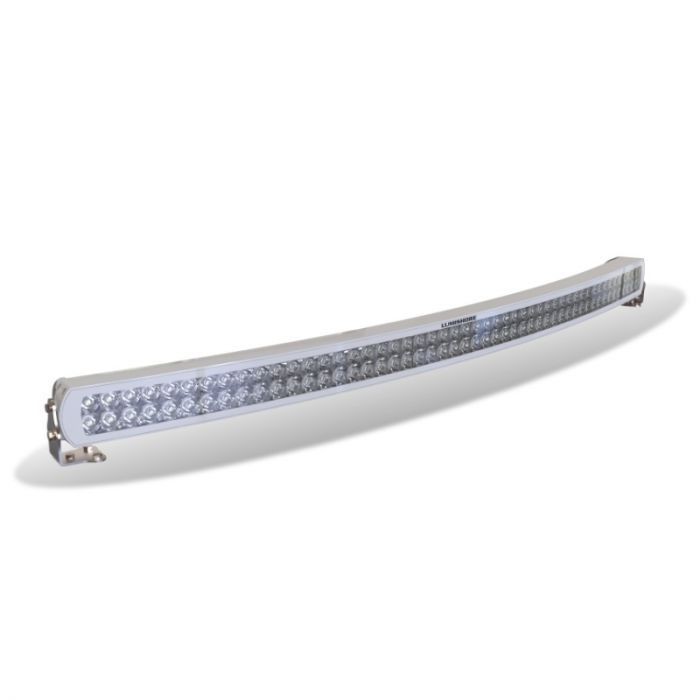

This is a Garmin (Lumishore) Curved 50-inch marine LED light bar, part number 60-0474 -- Lumishore is Garmin's marine lighting subsidiary brand, and this fixture is designed as high-output supplementary deck or hull lighting for boats rather than a navigation light. The curved form factor is built to follow a boat's hull or gunwale line rather than sitting as a flat panel, and 'LS' in the listing likely denotes the specific colour/spec variant within Lumishore's Curved Light Bar range.

More Info

It's rated for 39,600 fixture lumens of output from a letterbox-shaped beam pattern (9-degree vertical x 50-degree horizontal spread), giving broad, even illumination across a wide area -- suited to lighting a swim platform, cockpit or the water alongside a boat for night fishing, diving or general visibility rather than a narrow spotlight beam. Electrically it runs across a wide 10.5-31VDC supply range (covering both 12V and 24V boat electrical systems) drawing up to 32A at 12V or 16A at 24V, and includes surge protection rated to 3,000V, low-voltage protection, automatic voltage roll-back control, reverse-polarity protection and in-rush current protection -- a meaningful amount of electrical protection circuitry for a marine 12V/24V environment prone to voltage spikes. Physically the light face measures 131.5 x 7.2 x 15.8cm (51.8 x 2.8 x 6.2in), and the housing is IP68-rated, fully watertight, marine-grade powder-coated aluminium, built to handle constant saltwater spray and submersion-adjacent mounting positions. It can be controlled via a simple on/off switch or integrated into Lumishore's own ECLIPSE Command Center or EOS-LUX Command Center for colour-changing/dimming control on RGB-capable variants of this light bar family.

R60,799.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Lighting

  • Output: 39,600 fixture lumens
  • Beam: 9-degree vertical x 50-degree horizontal (letterbox)
  • Part Number: 60-0474

Electrical

  • Supply Voltage: 10.5-31VDC (12V/24V systems)
  • Max Current: 32A (12V) / 16A (24V)
  • Protection: 3,000V surge, low-voltage, auto voltage roll-back, reverse polarity, in-rush current

Physical

  • Light Face Dimensions: 131.5 x 7.2 x 15.8cm (51.8 x 2.8 x 6.2in)
  • Water Rating: IP68
  • Construction: Marine-grade powder-coated aluminium

Control

  • Options: On/off switch, ECLIPSE Command Center, EOS-LUX Command Center
