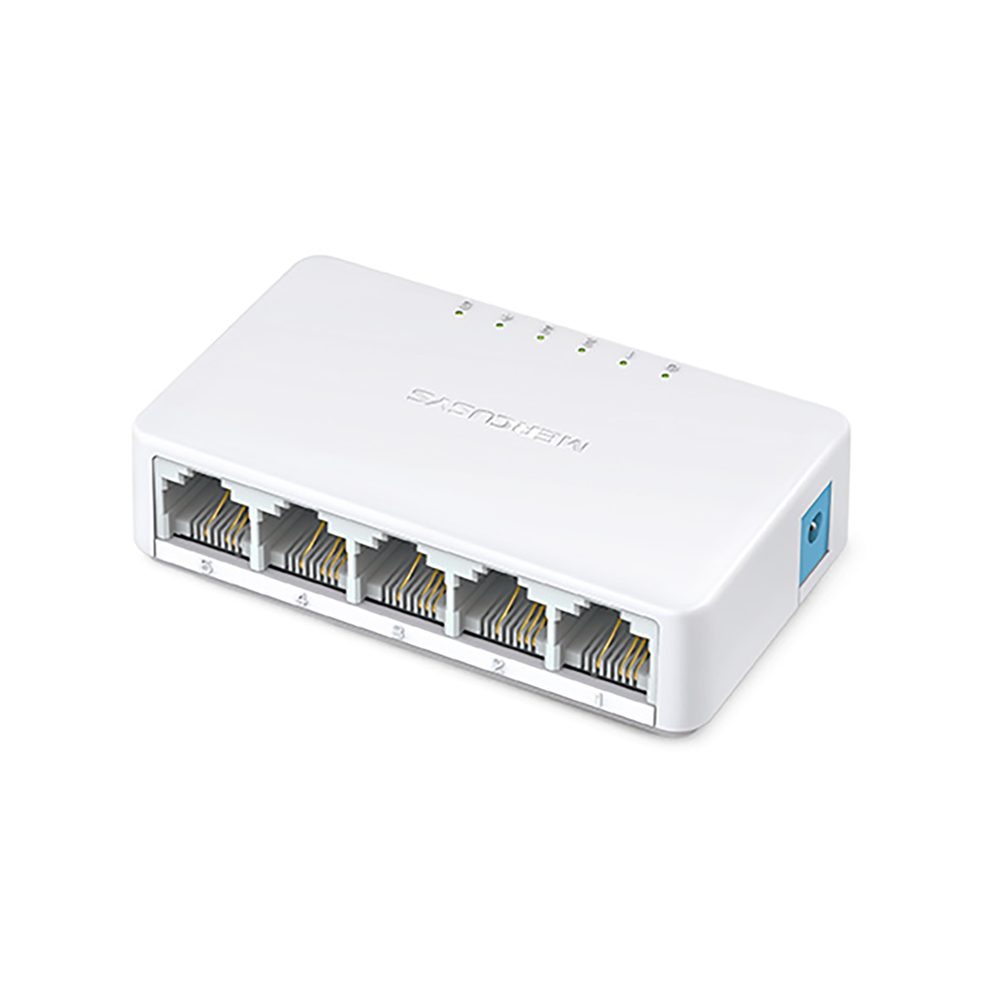

Mercusys MS105 5-Port 10/100Mbps Desktop Switch

Mercusys MS105 5-Port 10/100Mbps Desktop Switch

Mercusys 5 Port Desktop Switch

More Info

The Mercusys MS105 is a simple 5-port 10/100 Mbps unmanaged switch. Use it when one network point needs to serve a few devices, for example a TV, decoder, printer and PC behind a single wall port or router. There is no setup: plug in the 5 V power adapter and connect the cables. Every port supports auto-negotiation and auto-MDI/MDIX, so straight and crossover cables both work. It runs at 10/100 Mbps (up to 200 Mbps full duplex), with a 1 Gbps switching capacity, 768 Kb buffer and 802.3x flow control. The white plastic case measures only 82 x 49 x 21 mm, about the size of a bank card, and is fanless and silent. Per-port LEDs show link status. Because it's Fast Ethernet only, choose a Gigabit model such as the MS105G or MS108GS if you move large files between PCs or have a fibre line faster than 100 Mbps. In the box you get the switch, a power adapter and a quick installation guide.

R91.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Ports

  • Interfaces: 5x 10/100 Mbps RJ45, auto-negotiation, auto-MDI/MDIX
  • Data Rates: 10/100 Mbps half duplex, 20/200 Mbps full duplex

Performance

  • Switching Capacity: 1 Gbps
  • Buffer: 768 Kb
  • Jumbo Frame: 2 KB
  • Transfer Method: Store and forward

Hardware

  • Standards: IEEE 802.3, 802.3u, 802.3x
  • Power: 5 V / 0.6 A external adapter
  • Cooling: Fanless
  • Dimensions: 82 x 49 x 21 mm
  • LEDs: Ethernet 1-5, Power

Other

  • Certifications: CE, RoHS
  • Package Contents: MS105 switch, power adapter, quick installation guide
