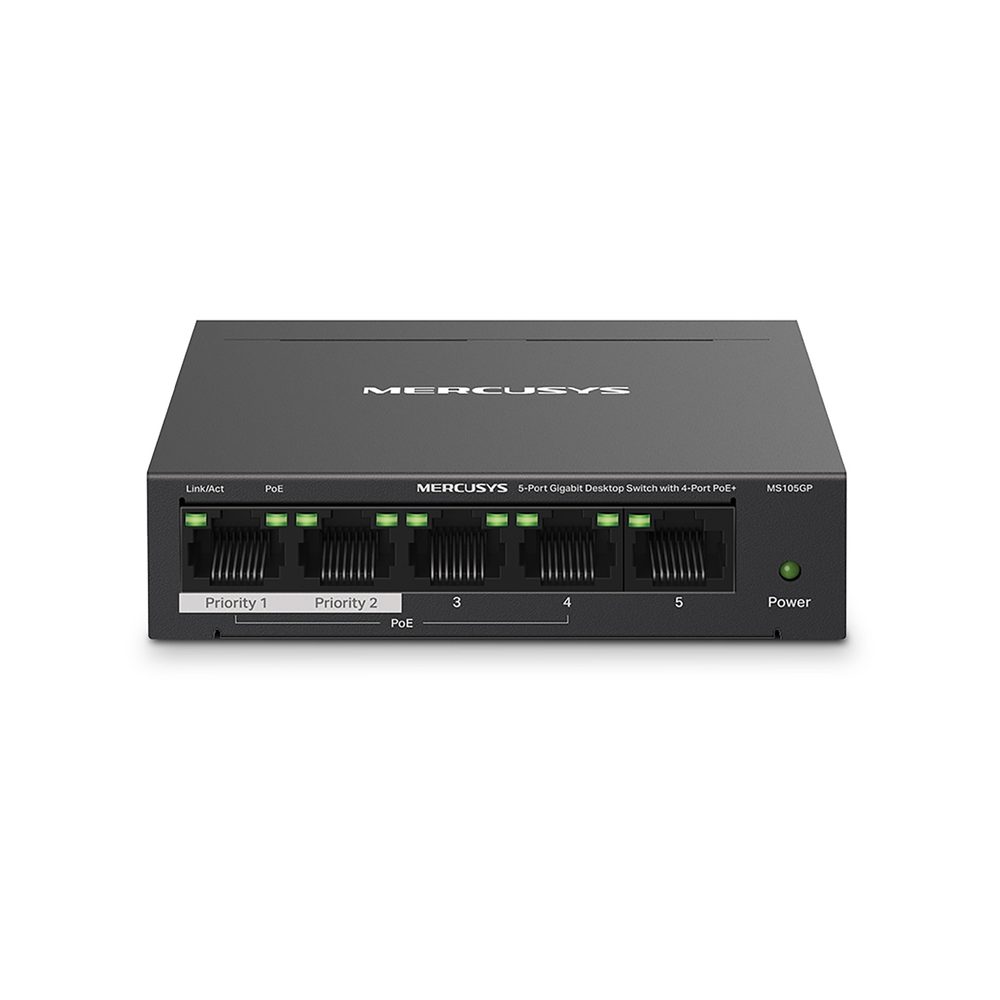

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Mercusys 5 Port Gigabit Unmanaged Desktop POE Switch
The Mercusys MS105GP is a compact 5-port Gigabit desktop switch with four PoE+ ports, built for powering and connecting IP cameras, VoIP phones and Wi-Fi access points without running separate power cables to each device. Ports 1 to 4 deliver 802.3af/at PoE from a 65 W total budget, while port 5 serves as a Gigabit uplink to your router. Three hardware DIP switches on the back add useful extras: Extend Mode stretches PoE and data on ports 1-4 out to 250 m for a camera at the far end of a property, Isolation Mode separates ports 1-4 from each other to limit snooping and broadcast storms, and Priority mode favours ports 1 and 2 for voice or video traffic. It is plug-and-play with no configuration, fanless for silent running, and housed in a metal casing that can sit on a desk or mount on a wall. A sensible choice for small CCTV setups, home offices and small businesses. In the box: the switch, a 53.5 V power adapter and a quick installation guide.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Ports
- Interfaces: 5x 10/100/1000 Mbps RJ45, Auto-Negotiation, Auto MDI/MDIX
- PoE ports: Ports 1-4, 802.3af/at (PoE+)
- PoE power budget: 65 W
Performance
- Standards: IEEE 802.3, 802.3u, 802.3x
- Transfer method: Store and Forward
- MAC address table: 8K
- Jumbo frame: 9 KB
- Advanced features: 802.3x Flow Control, IGMP Snooping v1/v2/v3, Isolation Mode, Extend Mode
Physical
- Dimensions: 99.8 x 98 x 25 mm
- Power supply: External adapter, 53.5 V / 1.31 A
- Installation: Desktop or wall mount
- Operating temperature: -10 to 40 °C
In the box
- Package contents: MS105GP switch, power adapter, quick installation guide
