Mercusys MS108 8-Port 10/100Mbps Desktop Switch

Mercusys MS108 8-Port 10/100Mbps Desktop Switch
More Info

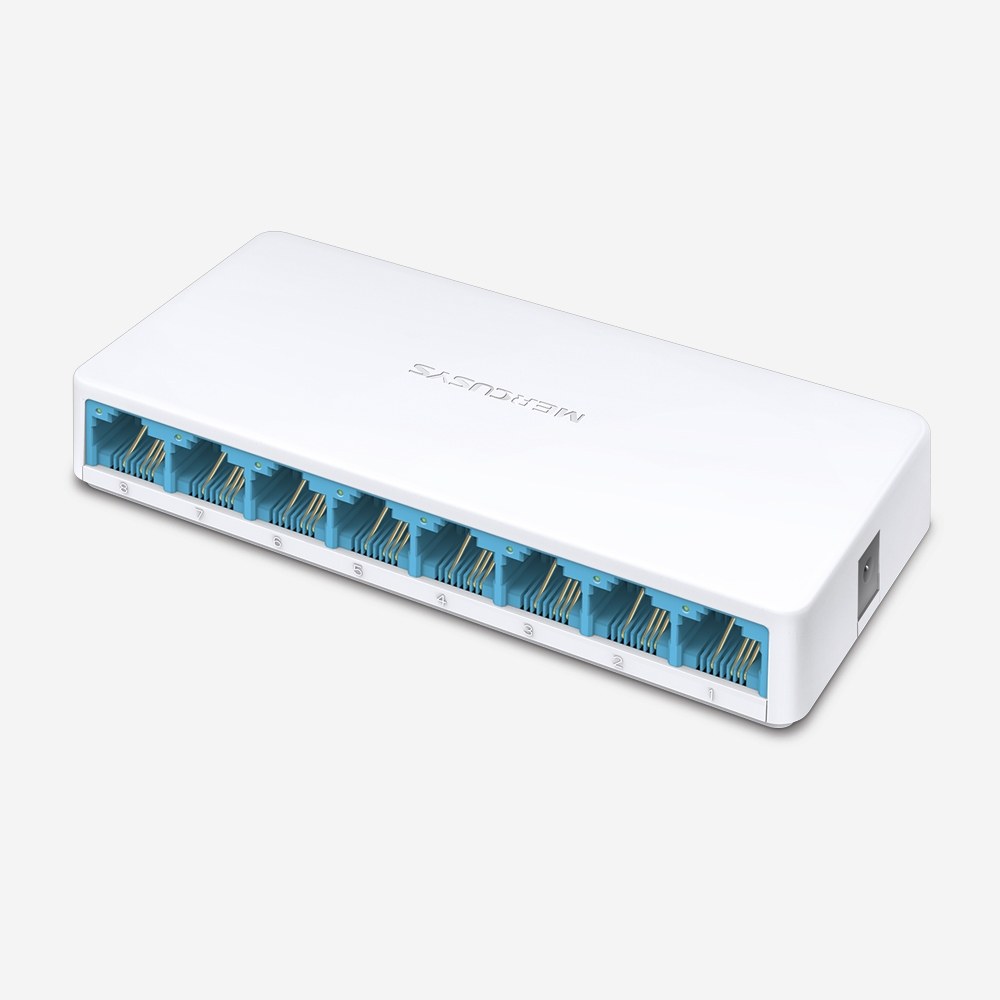

The Mercusys MS108 is a basic 8-port 10/100 Mbps desktop switch for adding more wired connections to a home, small office or student residence. Plug it into a spare port on your router or fibre/LTE router and you get seven more Ethernet ports for PCs, printers, IP cameras, smart TVs and game consoles, with no setup at all: every port auto-negotiates speed and supports Auto MDI/MDIX, so any standard network cable works. Mercusys rates its switching capacity at 1.6 Gbps, with store-and-forward switching and a 768 Kb buffer. The white plastic case measures just 127 x 60.2 x 22 mm, about the size of a smartphone, and the fanless design runs silently, so it can sit on a desk or behind a TV unnoticed. It runs from a small 5 V / 0.6 A adapter. Note these are Fast Ethernet (100 Mbps) ports, so for Gigabit fibre speeds to a PC, a Gigabit switch is the better pick. In the box: the switch, power adapter and quick installation guide.

R101.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Ports

  • Interfaces: 8x 10/100 Mbps RJ45, Auto-Negotiation, Auto MDI/MDIX
  • Data rates: 10/100 Mbps half duplex, 20/200 Mbps full duplex

Performance

  • Standards: IEEE 802.3, 802.3u, 802.3x
  • Transfer method: Store and Forward
  • Buffer: 768 Kb
  • Jumbo frame: 2 KB
  • LEDs: Ethernet 1-8, Power

Physical

  • Dimensions: 127 x 60.2 x 22 mm
  • Power supply: External adapter, 5 V / 0.6 A
  • Cooling: Fanless

In the box

  • Package contents: MS108 switch, power adapter, quick installation guide
