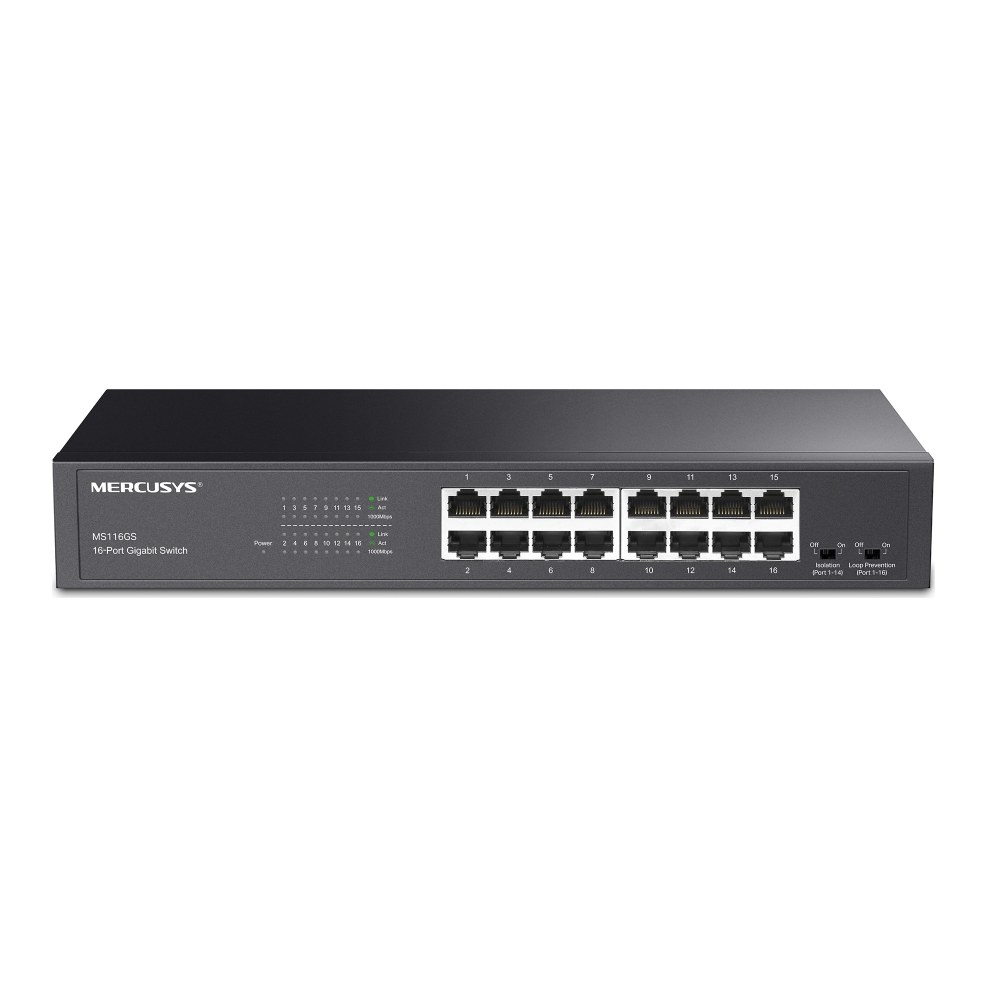

Mercusys MS116GS 16-Port Gigabit Desktop/Rackmount Switch

Mercusys 16 Port Gigabit Desktop/Rackmount Switch
The Mercusys MS116GS is a 16-port Gigabit unmanaged switch that fits on a desk or in a standard 19-inch rack. It suits small offices, schools and homes with a lot of wired devices. All sixteen RJ45 ports run at 10/100/1000 Mbps with auto-negotiation and auto-MDI/MDIX, backed by 32 Gbps of switching capacity and an 8K MAC address table. There is nothing to configure, but it has a few useful extras. The Isolation mode button separates traffic from selected ports to limit snooping and broadcast storms. Loop prevention detects a looped cable and blocks it before it brings the network down. IEEE 802.1p/DSCP QoS gives priority to latency-sensitive traffic such as voice and video. The power supply is internal (100-240 V AC), so there is no external power brick, and Mercusys lists silent operation. The steel case measures 294 x 140 x 44 mm (1U). LEDs show power, link/activity and 1000 Mbps per port. Rated for 0-40 °C, it is a cost-effective core switch for a growing SA small business.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Ports
- Interfaces: 16x 10/100/1000 Mbps RJ45, auto-negotiation, auto-MDI/MDIX
Performance
- Switching Capacity: 32 Gbps
- MAC Address Table: 8K
- Transfer Method: Store and forward
Features
- Advanced: 802.3x flow control, 802.1p/DSCP QoS, loop prevention, isolation mode
- Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p
Hardware
- Power: 100-240 V AC, 50/60 Hz (internal)
- Dimensions: 294 x 140 x 44 mm
- Mounting: Desktop or 19-inch rack
- LEDs: Power, Link/Act, 1000 Mbps
- Operating Temperature: 0-40 °C
- Certifications: CE, RoHS
