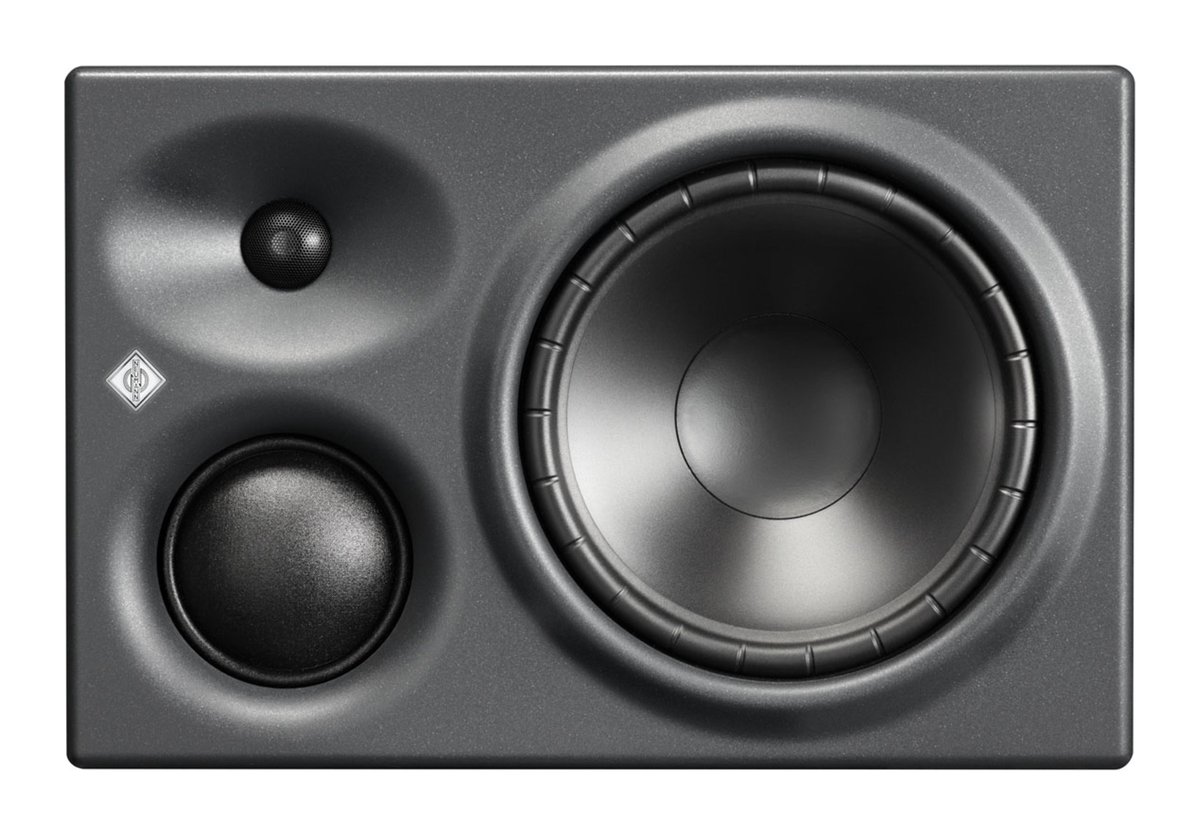

Neumann KH 310 A L G Active Studio Monitor, Left, Analog Input, Anthracite (RAL 7021)

The Neumann KH 310 A L G (cat. no. 505575) is the left-hand version of Neumann's KH 310 A active studio monitor, in anthracite. The left and right versions are mirror images, with the tweeter and midrange on opposite sides so a stereo pair is symmetrical; pair it with the KH 310 A R G. It is a tri-amplified, three-way sealed near-field monitor designed for precise midrange work on vocals, speech and instruments in project, music, broadcast and post-production studios. A 210 mm magnetically shielded woofer, a dedicated fabric-dome midrange and a 25 mm alloy fabric-dome tweeter behind a metal grille are driven by Class AB amplifiers of 210 W plus two 90 W, and a Mathematically Modelled Dispersion waveguide gives wide horizontal and narrow vertical dispersion to reduce console reflections. Frequency response is 34 Hz to 21 kHz (+/-3 dB) and maximum SPL is 116.3 dB. Input is a balanced analogue XLR, with 4-position bass, low-mid and treble controls, input gain and output level controls, a ground lift and a dimmable logo. The cabinet measures 253 x 383 x 292 mm and weighs 13 kg, finished in metallic anthracite. In the box: the monitor, EU, UK and US mains cables, four self-adhesive feet, the operating manual and a quick-start supplement.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Acoustics
- Frequency response (+/-3 dB): 34 Hz - 21 kHz
- Max. SPL (half space, 3% THD): 116.3 dB SPL
- Design: 3-way sealed, MMD waveguide
- Crossover: 650 Hz and 2.0 kHz, 4th order
Drivers & amps
- Woofer: 210 mm (8.25 in), magnetically shielded
- Midrange: Fabric dome
- Tweeter: 25 mm alloy fabric dome with metal grille
- Amplifiers: 210 W + 2x 90 W (10% THD)
Connections & controls
- Input: XLR analogue, electronically balanced
- Acoustic controls: Bass, low-mid, treble (4-position)
- Version: Left (mirror-imaged driver layout)
Physical
- Dimensions (H x W x D): 253 x 383 x 292 mm
- Weight: 13.0 kg
- Finish: Metallic anthracite (RAL 7021)
