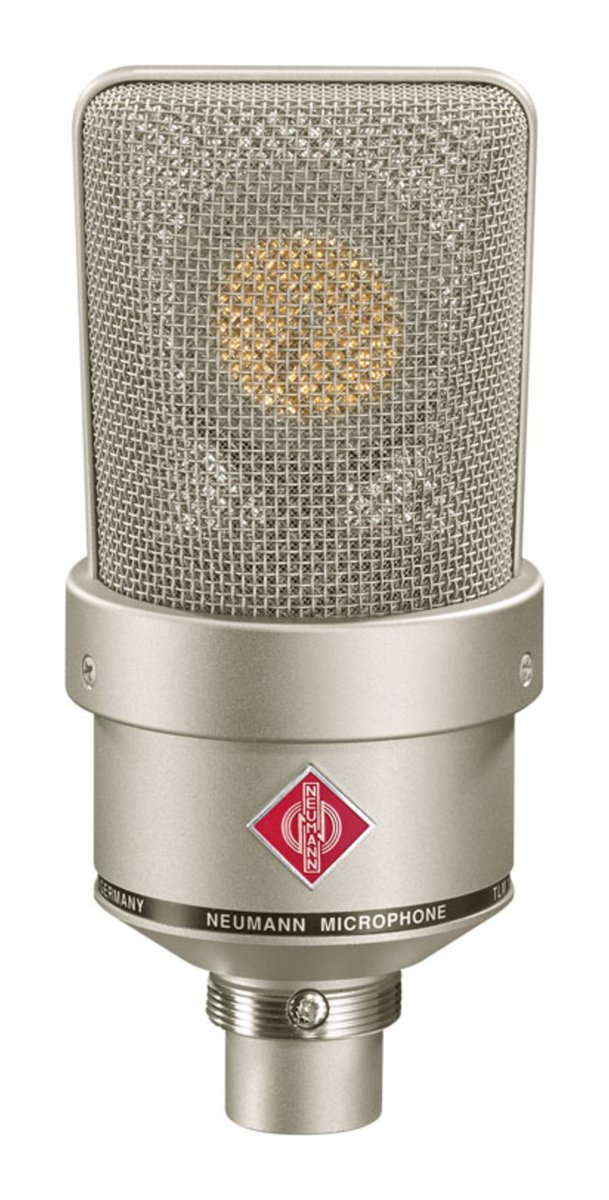

Neumann TLM 103 Mono Set Large Diaphragm Microphone, Cardioid, Nickel, EA 1 Elastic Suspension

The Neumann TLM 103 Mono Set (cat. no. 008508) packages the nickel TLM 103 microphone with an EA 1 elastic suspension and an aluminium carry case for safe transport and storage. The TLM 103 is a large-diaphragm cardioid condenser microphone whose capsule is derived from the legendary U 87 A. It is a modern studio standard for vocals, voice-over, podcasting, acoustic instruments and guitar amplifiers, valued for its extremely low self-noise of 7 dB-A, consistent cardioid pattern and a broad presence boost that adds definition. Frequency range is 20 Hz to 20 kHz, sensitivity 23 mV/Pa, and it handles up to 138 dB SPL, so it copes with loud sources. The transformerless circuit needs 48 V phantom power (3 mA) and connects via XLR 3. The nickel-finish body is 60 mm in diameter, 132 mm long and weighs about 450 g. The supplied EA 1 elastic suspension isolates the microphone from stand-borne vibration. The aluminium case makes this set the better choice for engineers who move between studios and locations.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Acoustics
- Type: Pressure gradient condenser, large diaphragm
- Pattern: Cardioid
- Frequency range: 20 Hz - 20 kHz
- Sensitivity: 23 mV/Pa
- Self-noise: 7 dB-A
- Max. SPL (0.5% THD): 138 dB
Electrical
- Powering: 48 V phantom, 3 mA
- Connector: XLR 3
- Rated impedance: 50 ohm
Physical
- Dimensions: 60 mm dia. x 132 mm
- Weight: Approx. 450 g
- Finish: Nickel
In the box
- Contents: TLM 103 microphone (nickel), EA 1 shock mount, aluminium case
