Neutrik PowerCON In Line Connector

Neutrik PowerCON In Line Connector
More Info

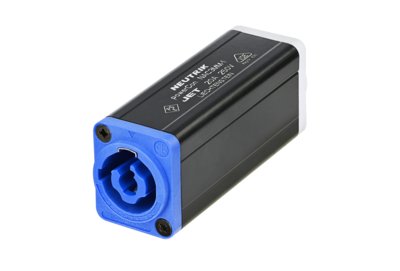

The Neutrik NAC3MM powerCON coupler (current Neutrik part NAC3MM-1) is an in-line adapter that joins two powerCON mains cables. One side mates with a blue powerCON power-in cable connector (NAC3FCA) and the other side with a grey powerCON power-out cable connector (NAC3FCB), so two cable runs can be linked into a longer one, or a powerCON link cable can be extended between loudspeakers, lighting fixtures, amplifiers and power distribution on stage. powerCON is Neutrik's locking three-conductor AC connector with line, neutral and a pre-mating earth contact, widely used on professional audio and lighting equipment in place of standard IEC appliance couplers wherever a rugged, locking connection is needed. The coupler is rated at 16 A and 250 V AC per contact, uses Neutrik's Quick Lock mechanism, and is rated for more than 1,000 mating cycles. The housing is glass-reinforced polyamide (UL 94 V-0) with silver-plated bronze contacts, it is IP20 when mated, and it operates from -30 to +80 degrees Celsius. Always ensure power is off when connecting or disconnecting, as powerCON (non-TRUE1) connectors must not be mated or unmated under load.

R720.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Rated current: 16 A rms per contact
  • Rated voltage: 250 V AC
  • Dielectric strength: 4 kV DC
  • Poles: 3 (line, neutral, pre-mating earth)

Mechanical

  • Mates with: powerCON NAC3FCA (power in) and NAC3FCB (power out) cable connectors
  • Locking: Quick Lock
  • Lifetime: > 1,000 mating cycles
  • Protection: IP20 (mated)

Materials

  • Shell: Polyamide PA 6.6, 30% glass reinforced, UL 94 V-0
  • Contacts: Bronze, 2 um silver plating
  • Temperature range: -30 to +80 C
