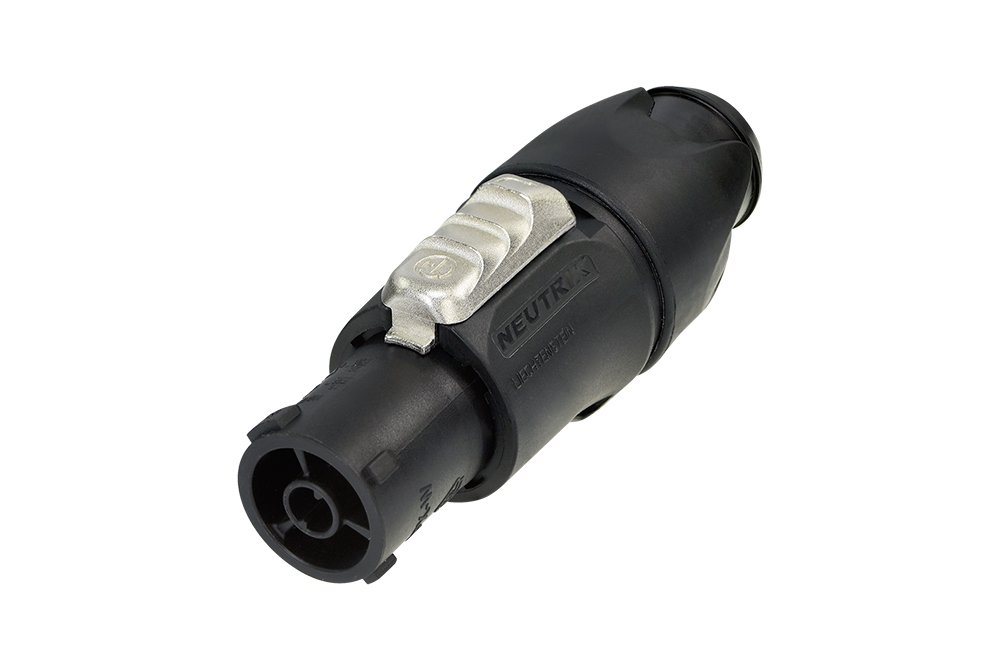

Neutrik powerCON True1 TOP Mains Cable Conn Female CBC

Neutrik powerCON True1 TOP Mains Cable Conn Female CBC
More Info

The Neutrik NAC3FXWTOP (listed by Neutrik as NAC3FX-W-TOP) is the female cable connector from the powerCON TRUE1 TOP range: a locking, weather-sealed true mains connector used on power leads that feed lighting fixtures, LED screens, powered speakers and other stage and outdoor equipment fitted with TRUE1 inlets. It replaces an ordinary IEC appliance coupler where a rugged, locking connection is needed, and it has circuit breaking capability so it can be unplugged under load. It is a single-phase 2 + PE connector rated 16 A 250 V AC in Europe (20 A under UL), with screw terminals for 1.0 to 2.5 mm² conductors and a locking bushing and strain relief for cable diameters of 6 to 12 mm. The shell and insert are glass-reinforced, UV-resistant polyamide rated UL 94 V-0, with silver-plated bronze contacts and a lifetime of more than 5,000 mating cycles over -30 to +80 degrees C. It is certified to IEC/UL 60320-1 for use in cord sets and IEC 62368-1 equipment. Neutrik now lists it as phase-out, with the NAC3F-TRUE1-S as the direct successor. It pairs with the male NAC3MXWTOP connector to make or extend TRUE1 cables. Sold as a single connector; cable not included.

R273.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Contacts: 2 + PE (single phase)
  • Rating (Europe, EN 60320-1): 16 A 250 V AC
  • Rating (USA, UL 60320-1): 20 A 250 V AC
  • Breaking capacity: Yes (CBC)
  • Dielectric strength: 4 kVdc / 2.8 kVac

Mechanical

  • Cable O.D.: 6 - 12 mm
  • Wire size: 1.0 - 2.5 mm² (12 AWG)
  • Termination: Screw terminals
  • Lifetime: > 5000 mating cycles

Materials & environment

  • Shell / insert: Polyamide PA 6.6, 30% glass reinforced
  • Contacts: Bronze CuSn0.2, 2 µm Ag plating
  • Flammability: UL 94 V-0
  • Temperature range: -30 °C to +80 °C

General

  • Series: powerCON TRUE1 TOP
  • Type: Female cable connector
  • Status: Phase-out; successor NAC3F-TRUE1-S
