Neutrik PowerCON True1 Top MAINS con

Neutrik PowerCON True1 Top MAINS con
More Info

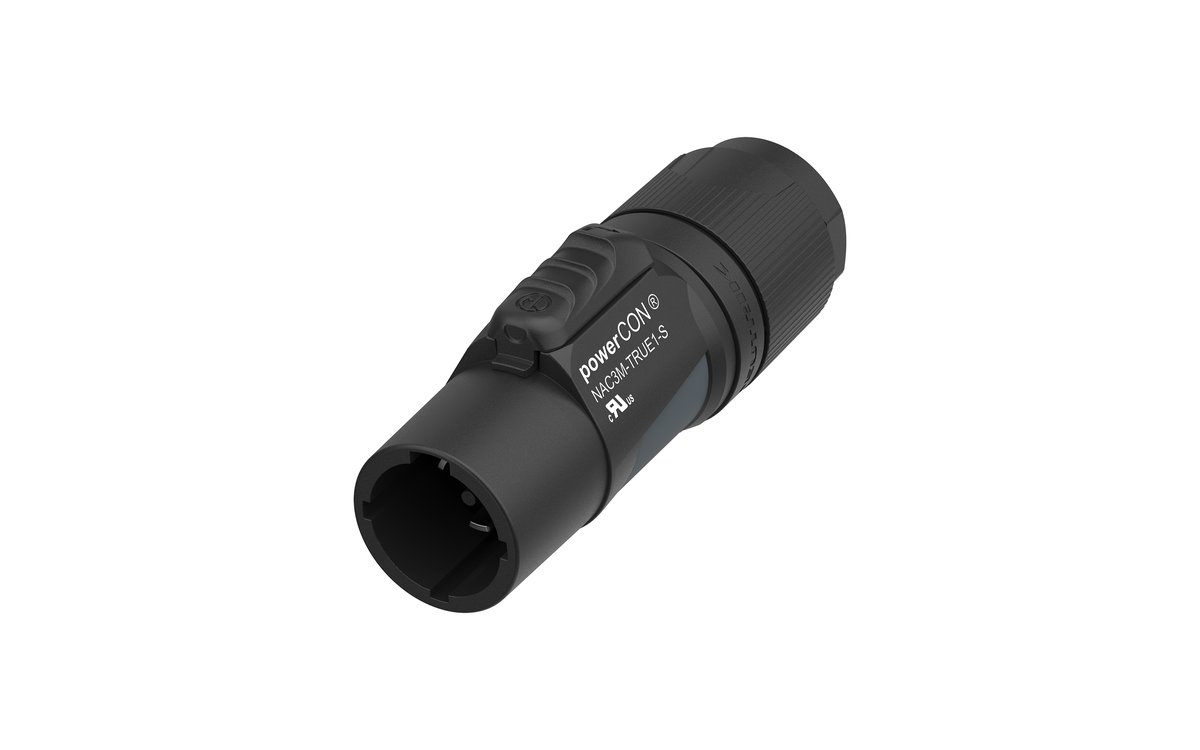

The Neutrik NAC3M-TRUE1-S is a powerCON TRUE1 TOP male cable connector for building rugged, locking mains power leads for stage, lighting, audio and outdoor installations. powerCON TRUE1 replaces ordinary IEC appliance couplers wherever a tough, lockable and weather-sealed power connection is needed, and it is a true mains connector with breaking capacity, meaning it may be connected or disconnected under load. It is rated 16 A / 250 V AC to EN IEC 60320-1 (20 A / 250 V AC under UL and CSA), has 2 poles plus protective earth, and is sealed to IP65 and IP67 when mated or capped. The high-impact, UV-resistant polyamide shell uses Neutrik's twist-lock and locking bushing, and the '-S' version's strain relief takes cable diameters of 6 to 12 mm with 1.5 to 2.5 mm2 conductors. Silver-plated copper alloy contacts are rated for more than 5,000 mating cycles. It is ENEC, VDE, UL and CSA certified. A single connector is supplied for assembly onto your own cable; tools and sealing caps are separate accessories.

R210.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Rating (Europe): 16 A / 250 V AC (EN IEC 60320-1)
  • Rating (America): 20 A / 250 V AC (UL/CSA)
  • Contacts: 2 + PE
  • Breaking capacity: Yes (CBC)

Mechanical

  • Cable O.D.: 6 - 12 mm
  • Wire size: 1.5 - 2.5 mm2 (14 AWG)
  • Lifetime: > 5,000 mating cycles
  • Protection: IP65 / IP67 (mated or capped)

Materials

  • Shell: Polyamide PA 66, UL 94 V-0
  • Contact plating: 2 um Ag
  • Temperature range: -30 to +80 C (IEC 61984)
